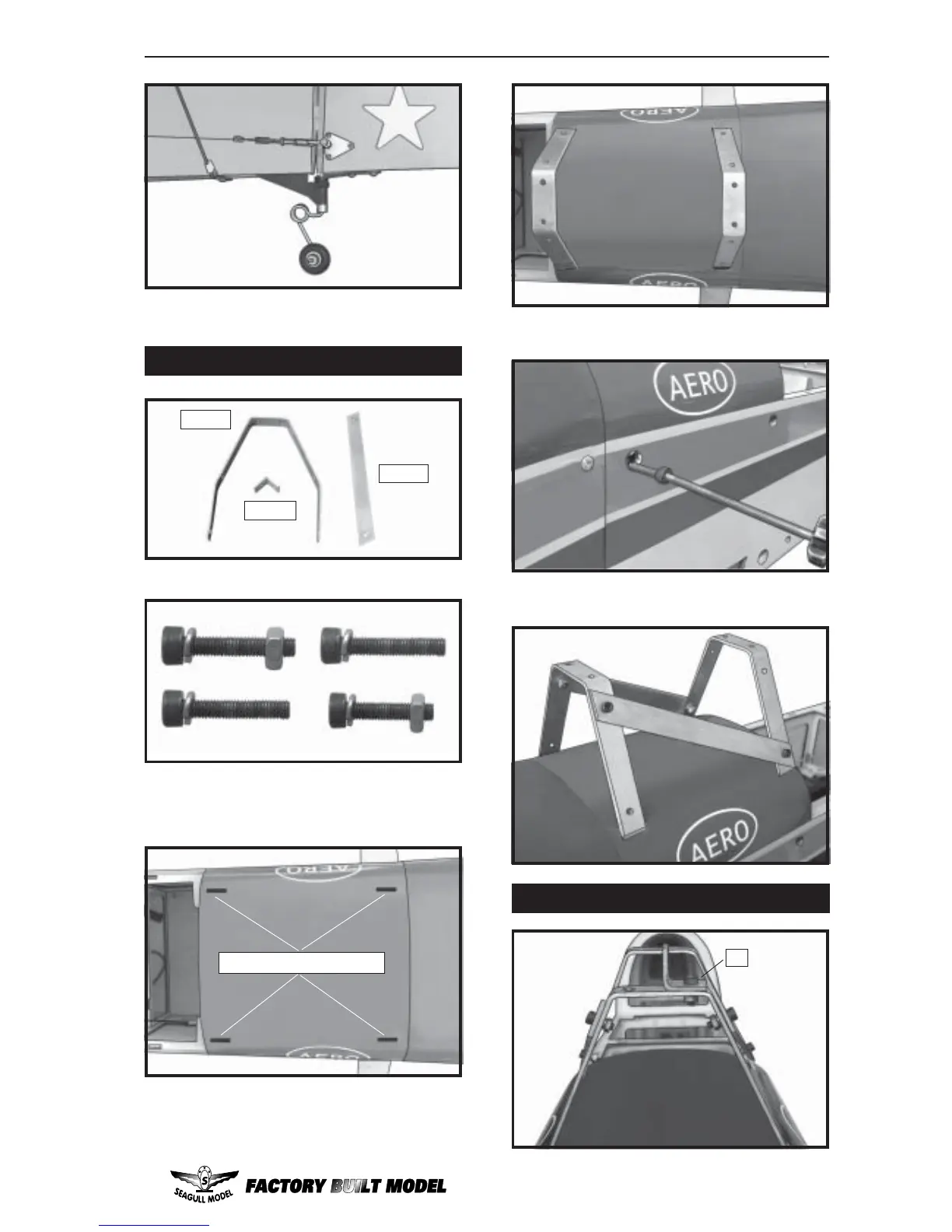

CABANE STRUT INSTALLATION.
! 1) Remove the covering in the top of the
fuselage for the cabane struts.
! 2) Slide the cabane into position.
! 3) Secure the cabane into position using 4
socket head bolts ( Type A).
! 4) Install the cross braces. Secure the rear
of braces using socket head bolts (type B).
2 pcs.
2 pcs.
4 pcs.
(A) 4x15mm(4pcs).
(B) 3x10mm(16pcs).
(C) 3x15mm(2pcs). (D) 3x15mm(8pcs).
Remove the covering.
THE CENTER RIB INSTALLATION.
B
