ZERO. Instruction Manual.
16

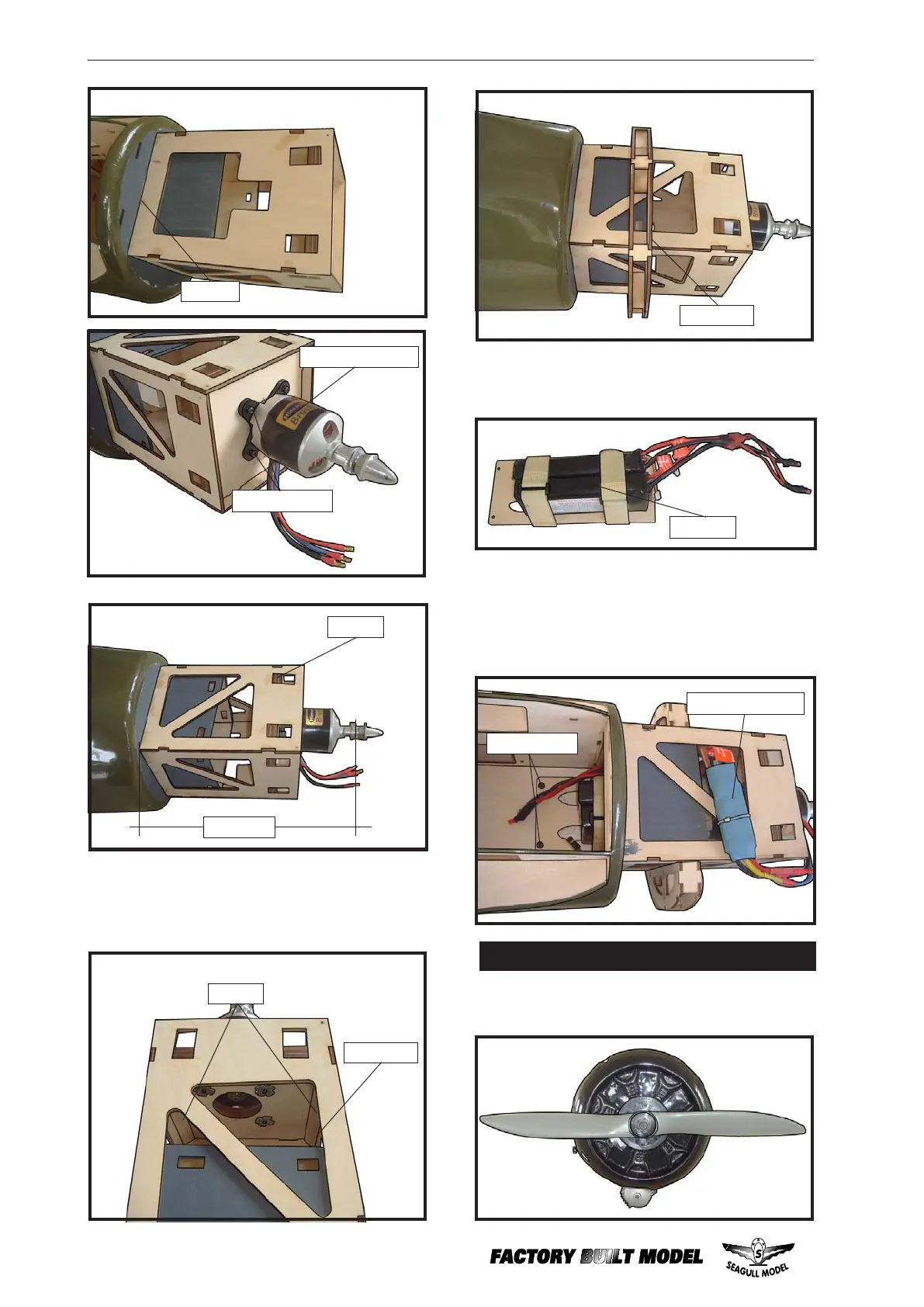

3) Attach the motor to the front of the electric
motor b ox u sing f our 4 mm b lind n ut, f our
M4x15mm hex head bolt s to secure the motor .
Please see picture shown.
Epoxy.
150mm.
M4 x 15mm.
Electric motor.
Battery.
4) Locate the plywood battery tray to the
fuselage. Tighten the screws using machine
screws M3x15mm to secure the tray in position.
Speed control.
5) Attach the speed control to the side of the
motor box using two-sided tape and tie wraps.
Connect the appropriate leads from the speed
control to the motor. Make sure the leads will
not inte rfere with the opera tion of the motor .
INSTALLING THE SPINNER.
Install the spinner backplate, propeller and
spinner cone.
Epoxy.
M3x15mm.
Balsa.
Epoxy.
C/A glue.
To Next Page
