Seagull Models ZERO MS:123 - Elevator Pushrod Horn Installation

ZERO. Instruction Manual.
30
3mm.
Pen.
Elevator pushrod.
Control horn.
M2 lock nut.
Metal clevis.
Elevator pushrod.

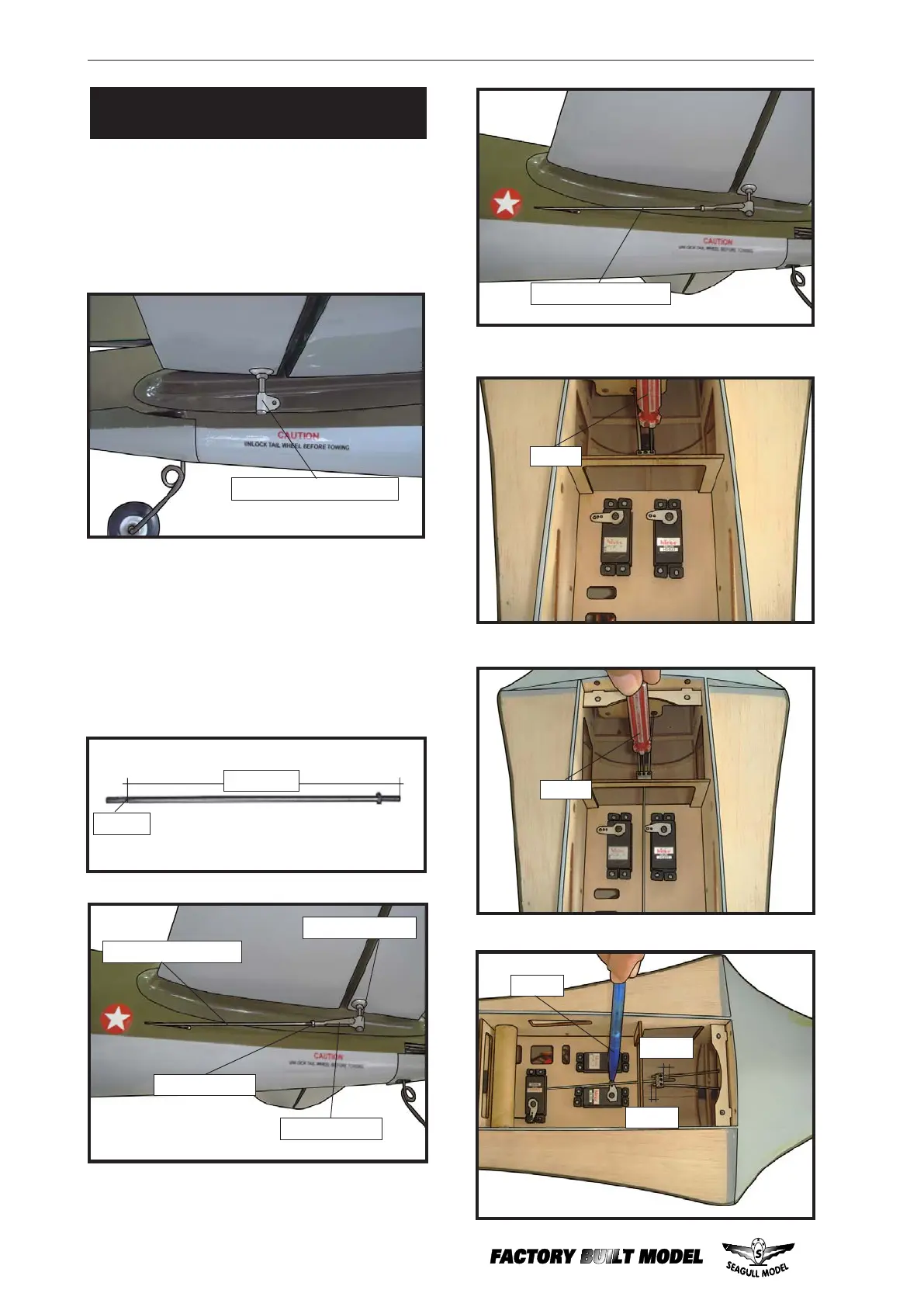

ELEVATOR PUSHROD HORN
INSTALLATION.
Elevator control horn.
 4) Elevator and rudder pushrods assembly
as pictures below.
 3) Thread one clevis and M2 lock nut on
to each elevator control rod. Thread the horns
on until they are flush with the ends of the con-
trol rods.
 1) Install the elevator control horn using
the same method as with the aileron control
horns.
 2) Position the elevator control horn on
the both side of elevator.
678mm.
Cut.
Screw.
Screw.
3mm.
