18 User Manual 62Pro
5. Remove the four securing bolts (1).
6. Turn down the four leveling feet (2) to lift the machine.
7. Remove the wooden blocks (3).

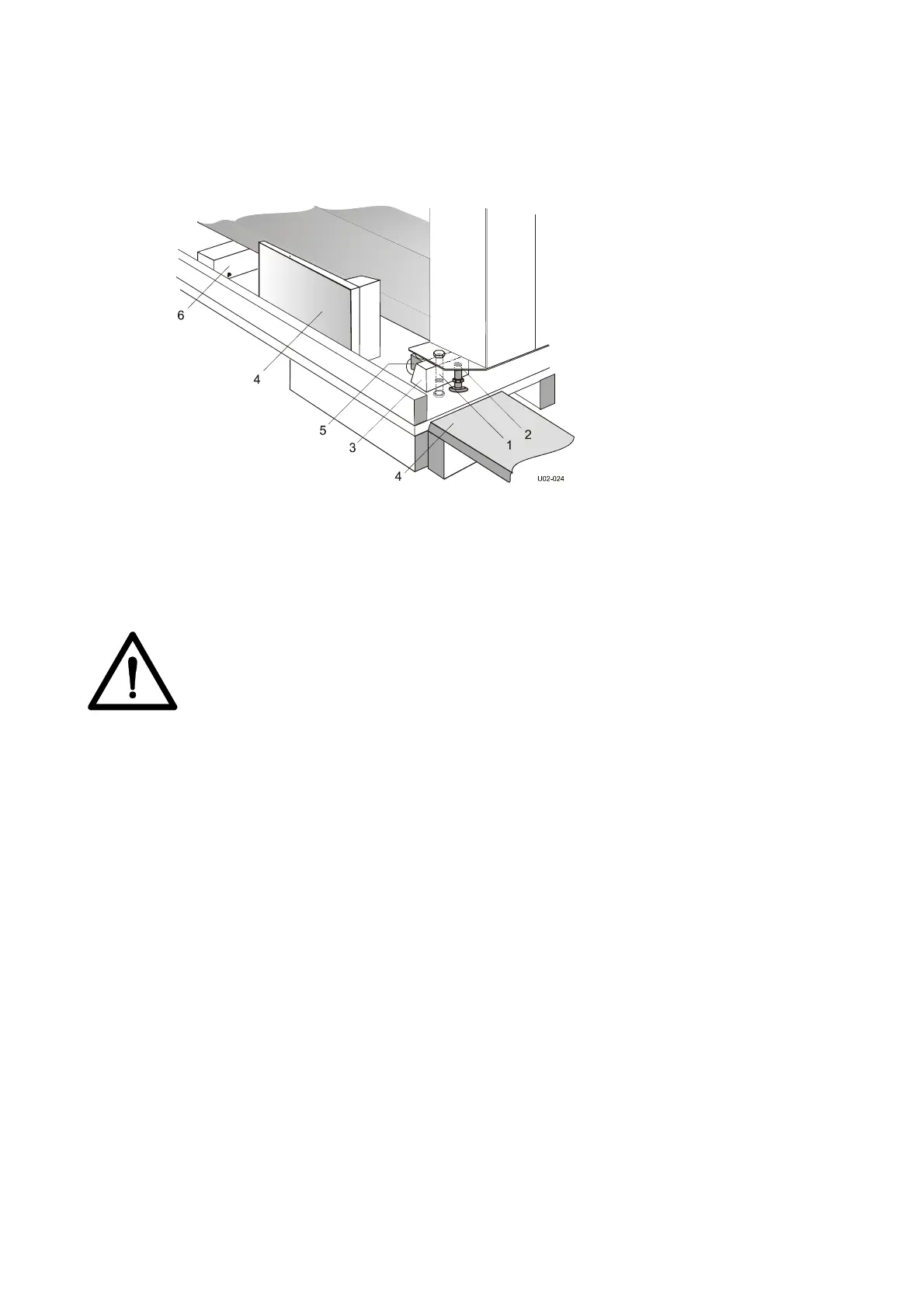

Figure 7: Removing transport parts.
8. Unscrew and remove the support block (6) to make room for the machine to pass by.
9. Turn up the four leveling feet (2) completely to put the machine on its castors (5).
10. Roll the machine off carefully from the pallet using the ramps.
WARNING:
ROLL THE MACHINE OFF WITH 2 PERSONS. IT IS HEAVY AND CAN
NOT BE CONTROLLED ALONE.
Note:
Save all packing material for later moving over long distances or discard of according to
local regulations.
