36 User Manual 62Pro
5.4.4 Pull rollers
The pull rollers are generally used in the encapsulation process (hot processing double
sided lamination) to get a better encapsulation result.
• Before webbing set the top pull roller in the upper position and lock it on both sides.
• Webbing is the same as described before, accept the films are now, with a leader
board, pushed through the main roller nip and the pull roller nip.

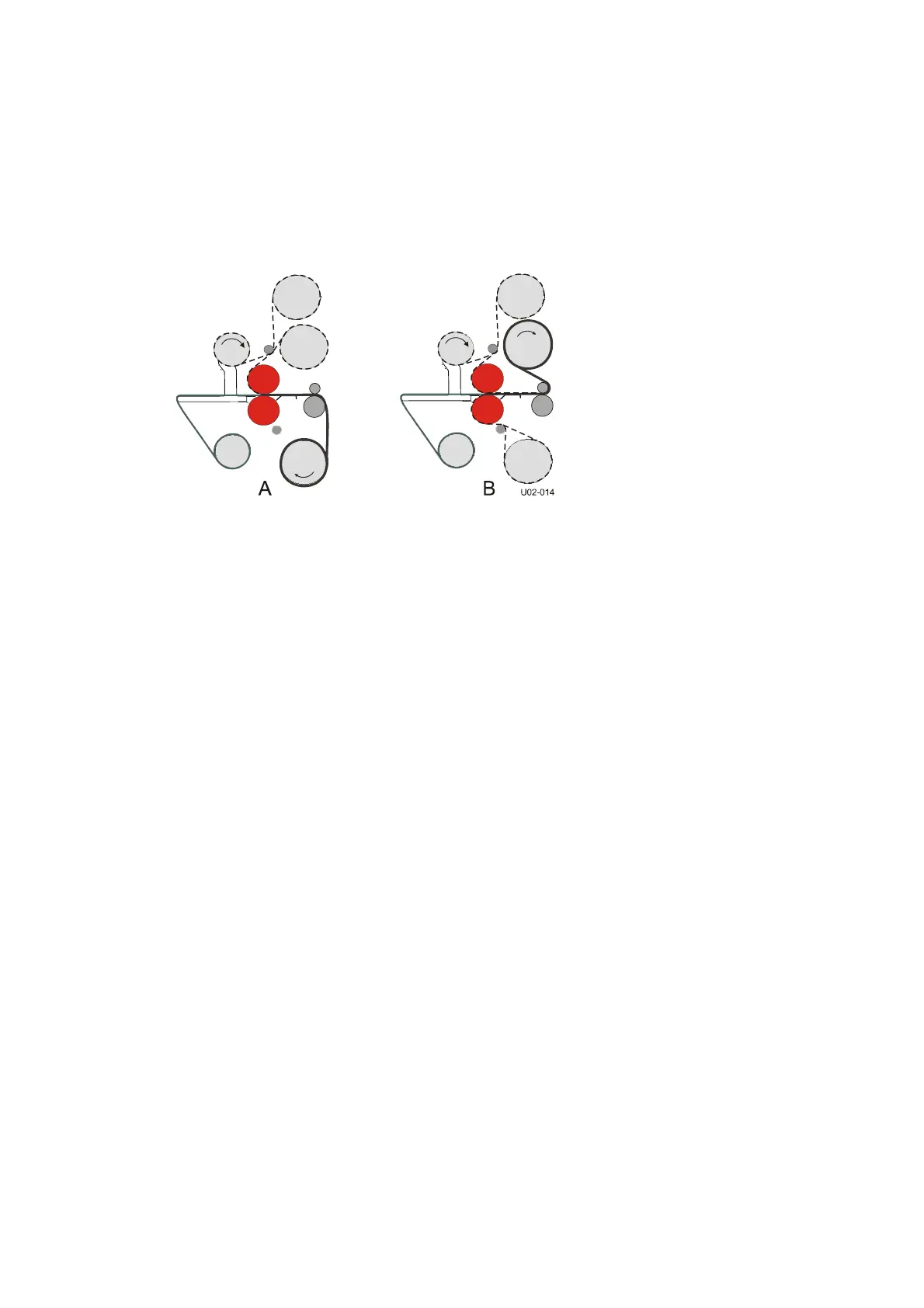

Figure 21: Roll to roll with pull rollers engaged.
