2. INTRODUCTION
Cordless 20V backpack garden sprayer. This sprayer does not require manual pressing which makes it easy and practical to use. Supplied
with 3 di󰀨erent nozzles to meet di󰀨erent needs and an auto cut-o󰀨 function. This backpack sprayer can be used for sterilization, disinfection,
weed killing as well as watering owers and spraying water. It has an added lter to prevent larger particles clogging the machine. With
strong durable back straps to ensure comfort when worn. 15L water tank with a lance holder clip. Spraying lance including hose is 2.53m.
Requires compatible 20V battery and mains charger, sold separately.
3. SPECIFICATION
Model No: ........................................................... CP20VGBS
Consumable parts: .................................................................
Battery (not included): ............................................................
2Ah ...................................................................... CP20VBP2
4Ah ...................................................................... CP20VBP4
6Ah ...................................................................... CP20VBP6
Mains Charger (not included): ............................... CP20VMC
Dimensions (W x D x H): ............ 315mm x 320mm x 580 mm
Hose length: ................................................................... 1.7m
Maximum ow rate: .................................................. 1.3L/min
Maximum pressure:......................................................1.6bar
Noise power: ............................................................. 83dB(A)
Noise pressure: ......................................................... 72dB(A)
Tank capacity: .................................................................. 15L
Vibration: ................................................................ 0.494m/s²
Vibration uncertainty: ................................................. 1.5m/s²
4. CONTENTS
5. ASSEMBLY
5.1. INSTALLING THE BATTERY CARTRIDGE
5.1.1. Open the battery cover door by releasing the sprung catch (g 1).
5.1.2. Align the tongue on the battery cartridge with the groove in the battery housing and slide into place.
5.1.3. Insert all the way until the battery cartridge is locked into position with an audible click.
8 DO NOT try and insert the battery cartridge forcibly.
5.1.4. Firmly close the battery cover (g 3).
5.2. REMOVING THE BATTERY CARTRIDGE
5.2.1. Open the battery cover door by releasing the sprung catch (g 1).
5.2.2. Push the battery cartridge latch button, then slide and remove the battery (g 2).
5.2.3. Firmly close the battery cover (g 3).
 WARNING! Ensure that the sprayer is switched o󰀨 and the battery cartridge is removed prior to undertaking any work on the
sprayer.
Original Language Version
© Jack Sealey Limited

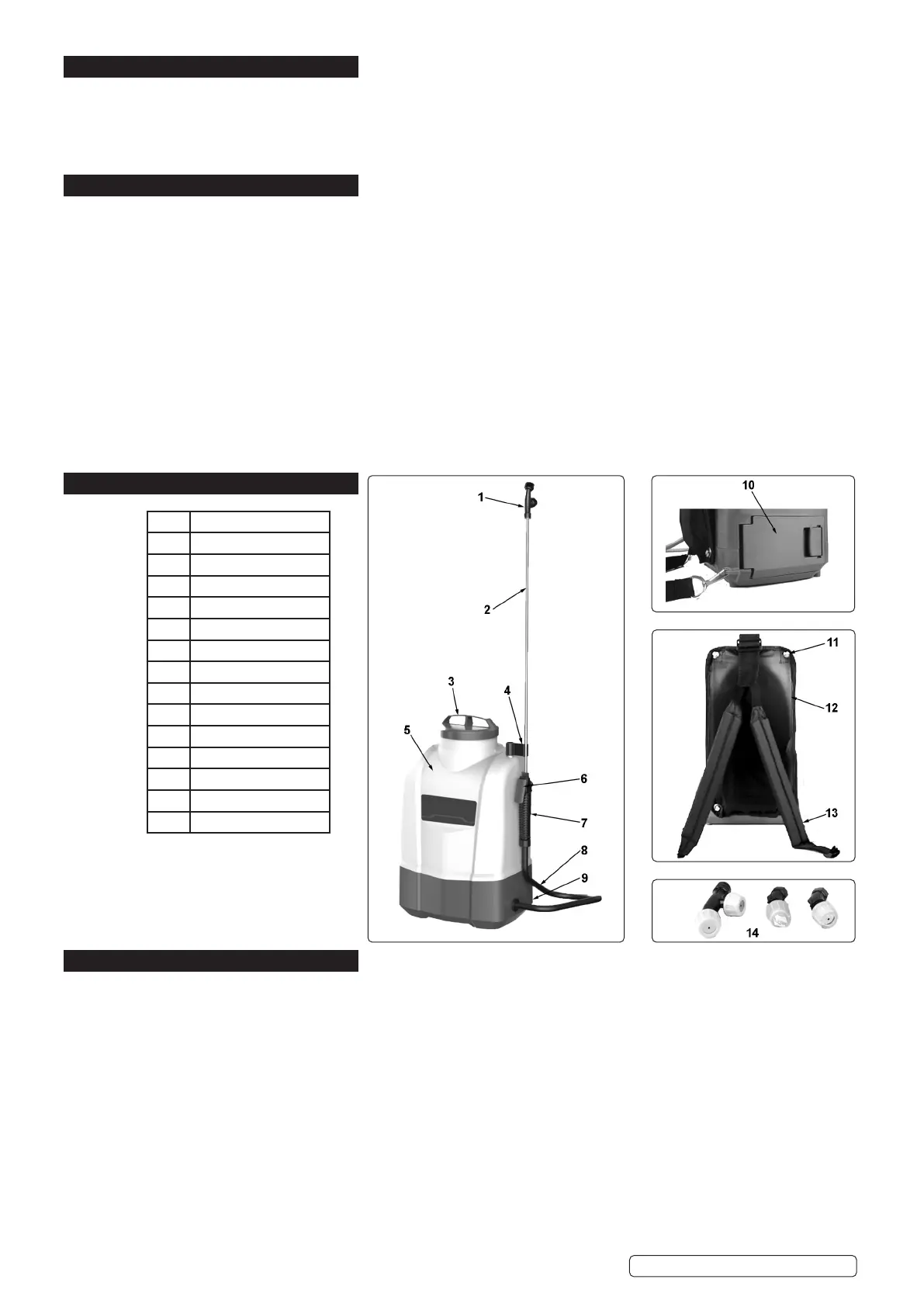

ITEM DESCRIPTION
1 Nozzle
2 Spray pipe
3 Fluid tank lid
4 Spray pipe holder
5 Fluid tank reservoir
6 Trigger lever
7 Control handle
8 Water pipe
9 Power switch
10 Battery cartridge cover
11 Bolt
12 Back pad
13 Back strap
14 Nozzle selection
CP20VGBS Issue 2 (2,3) 18/02/22
