2. INTRODUCTION
Fast, simple and effective way to sharpen your drill bits. Gives a perfect
angle/sharpened head to make drilling with your bit easier. Suitable for up to
118° HSS Titanium, Cobalt, Carbon Steel and Split Point bits in
range Ø3-13mm.
3. SPECIFICATION
Model No: ............................................................... SMS2008
Motor Power: ......................................................... 80W-230V
Free Speed: ............................................................. 4200rpm
Minimum Drill Diameter: .............................................. Ø3mm
Maximum Drill Diameter: ........................................... Ø13mm
Weight ......................................................................... 2.73kg
4. OPERATION
4.1. SETTING
4.1.1. Remove the drill bit holder from its location.
4.1.2. Loosen the locking ring (g.2) and insert the drill bit; tighten the locking ring lightly.
4.1.3. Lock the drill bit holder into the Setting Location whilst holding the setting lever (which controls the spring jaws) open, allowing the drill
bit to be pushed back by the terminal (see g.3). Ensure that the drill bit is inserted with the cutting edge of a ute vertically aligned, as
in g.2.
4.1.4. Tighten the locking ring fully before removing the drill bit holder from the Setting Location.
4.2. SHARPENING
4.2.1. The settings achieved in section 4.1. are transferred to the sharpener by moving the
drill bit holder, complete with drill bit, to the Sharpening Location.
4.2.2. Switch the machine on by means of the on/off switch.
4.2.3. Insert the drill bit holder into the Sharpening Location ensuring that the upper lugs on
the holder body are engaged with the cut-outs in the collar (g.4).
4.2.4. Sharpen the drill bit by rocking the collar back and forth until the sound from the wheel
diminishes.
4.2.5. Remove the drill bit holder, rotate through 180° and repeat step 4.2.4.
4.2.6. If an arrow head point has not been achieved, turn the drill bit through 90° in the holder
and repeat from 4.1.2.
4.3. GRINDING
4.3.1. Switch the machine on.
4.3.2. Insert the drill bit holder into the Grinding Location, ensuring that the lower lugs
engage in the cut-outs (see g.5).
4.3.3. Work the drill bit holder back and forth until the grinding sound diminishes.
4.3.4. Remove the drill bit holder and re-insert having turned through 180°.
4.3.5. Repeat step 4.3.3. When complete, the drill bit will be sharpened and ready for use.
Original Language Version
© Jack Sealey Limited
SMS2008 Issue:5 (2) 11/02/19

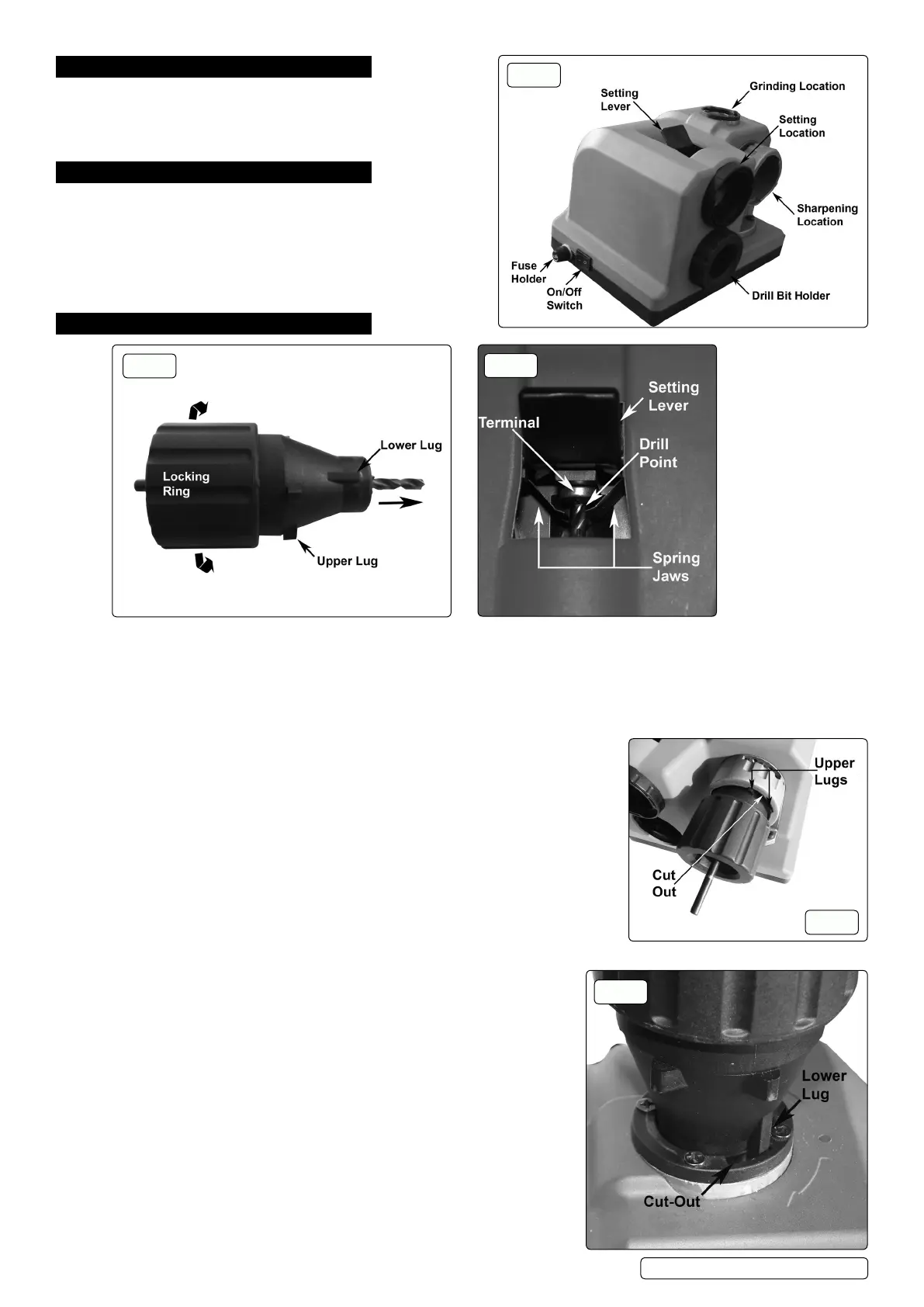

g.1
