Seametrics iMAG 4700 User Manual

iMAG 4700 INSTRUCTIONS
Seametrics • 253.872.0284 Page 5 seametrics.com

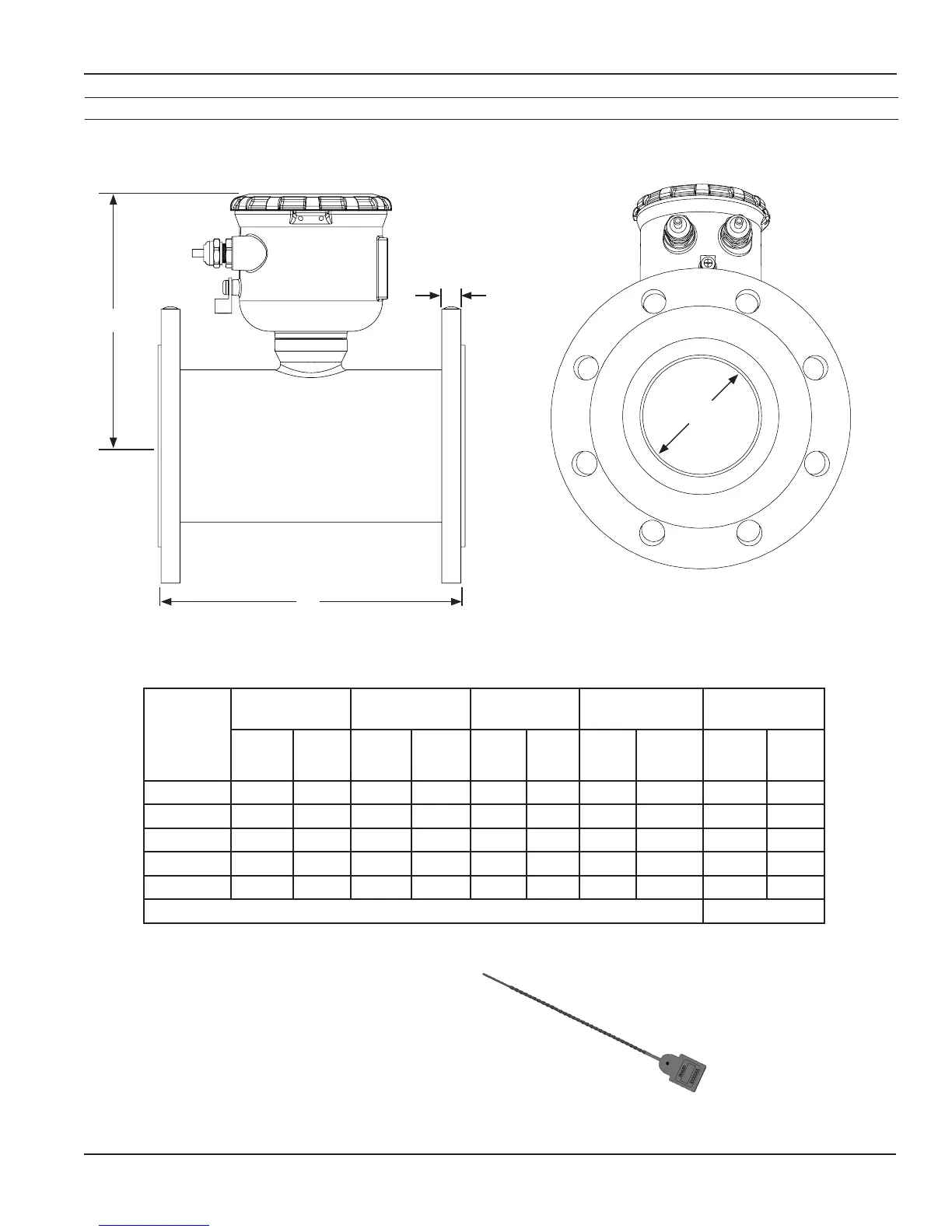

Dimensions
H
L
T
ID
GENERAL INFORMATION
Install security seal during
installation if regulations require.
iMAG
4700
Meter
Size
L H T ID
Shipping
Weight
inch mm inch mm inch mm inch mm lbs
Kg
4” 10.24 260 8.3 211 .62 15.7 3.12 79 27 12
6” 12.27 312 9.1 231 .69 17.5 5.05 128 42 19
8” 14.24 362 10.1 257 .69 17.5 6.44 164 64 29
10” 18.18 462 11.2 284 .69 17.5 8.61 219 123 56
12” 19.68 500 12.2 310 .81 20.6 10.55 268 165 75
Flanges Standard ANSI 150 lb. drilling Cable 1 lb.

Seametrics iMAG 4700 Specifications

General

Brand	Seametrics
Model	iMAG 4700
Category	Measuring Instruments
Language	English
