Seametrics iMAG 4700 User Manual

IMAG 4700 INSTRUCTIONS
Seametrics • 253.872.0284 Page 6 seametrics.com

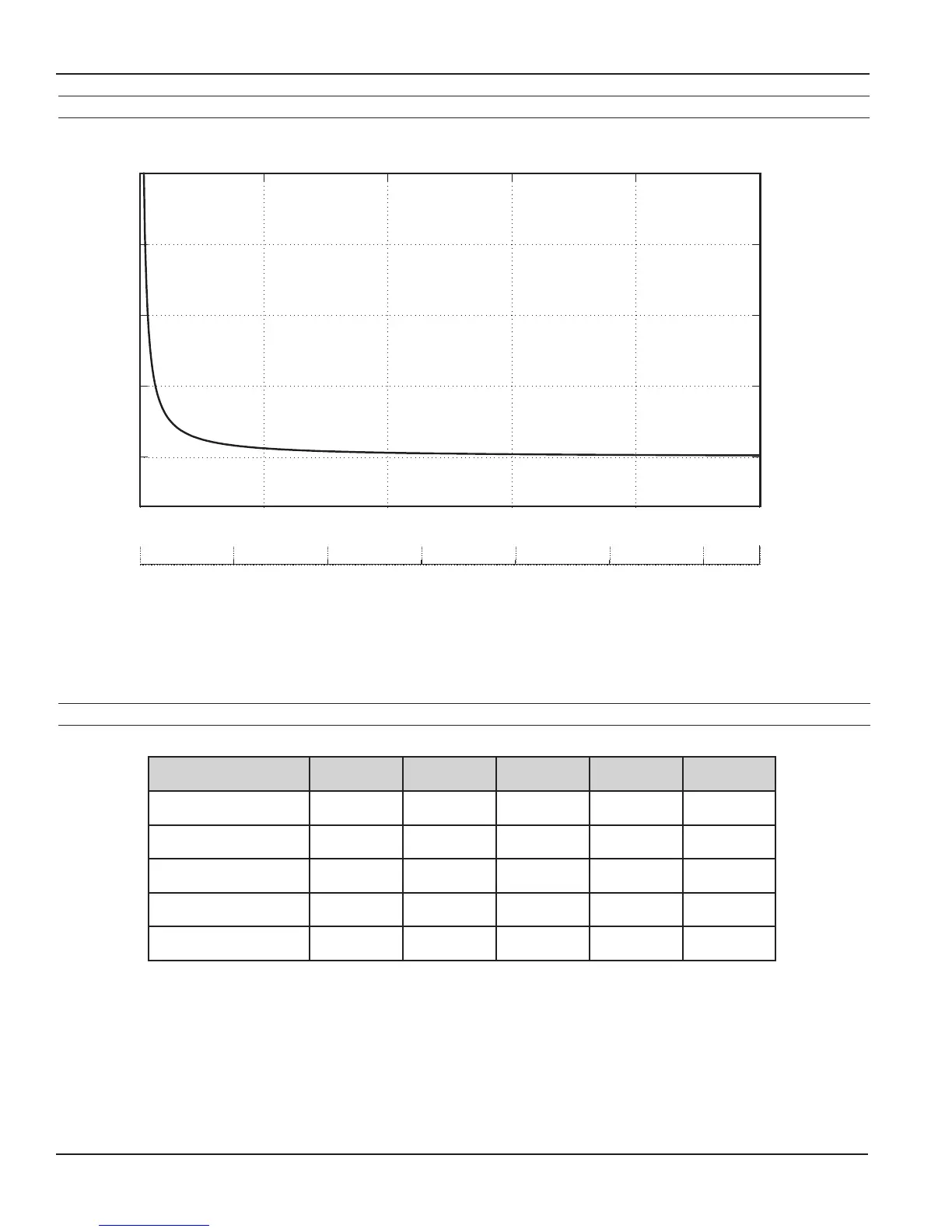

Flow Rate (4” - 12”)
Pipe Size
(Inches in diameter)
4” 6” 8” 10” 12”
Max Flow Rate
(Gallons/Minute)
1285 2891 5140 8031 11565
Cut-off (min) Flow Rate
(Gallons/Minute)
6.43 14.46 25.70 40.15 57.82
Max Flow Rate
(Liters/Second)
81 182 324 507 730
Cut-off (min) Flow Rate
(Liters/Second)
0.41 0.91 1.62 2.54 3.65
Max Flow Velocity
(Meters/Second)
10 10 10 10 10
iMAG Accuracy
GENERAL INFORMATION
Accuracy (%)
(m/s)
0
1
2
3
4
5
33 0 5 10 15 20 25 30
(ft/s)
0
1
2
3
4
5
5
10 15
20
25 30
33
0
420 6 8 10
Flow Velocity

Seametrics iMAG 4700 Specifications

General

Brand	Seametrics
Model	iMAG 4700
Category	Measuring Instruments
Language	English
