ii 'can: 'reSult: in foreign
which::can result in
before cornmencing
Sears

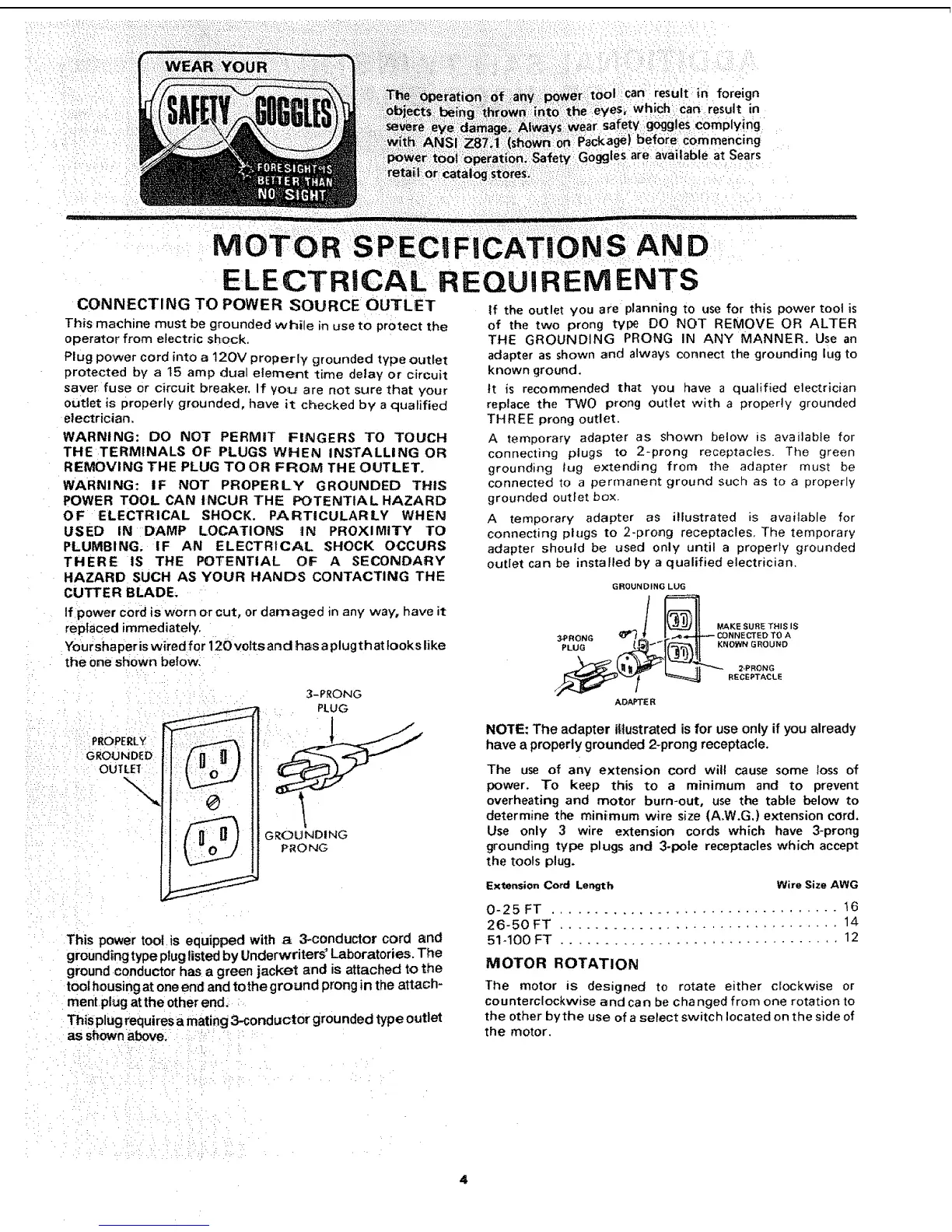

ELECTRICA L:IREQU! REIV!ENTS
CONNECTING TO POWER SOURCE OUTLET
This machine must be grounded while in use to protect the
operator from efectr:ic shock.
Plug power cord into a 120V properly grounded type outlet
protected by a t5 amp dual element time delay or circuit
saver fuse or circuit breaker. If you are not sure that your
outlet is properly grounded, have it checked by a qualified
electrician.
WARNING: DO NOT PERMIT FINGERS TO TOUCH
THE TERMINALS OF PLUGS WHEN INSTALLING OR
REMOVING THE PLUG TO OR FROM THE OUTLET,
WARNING: IF NOT PROPERLY GROUNDED THIS
POWER TOOL CAN INCUR THE POTENTIAL HAZARD
OF ELECTRICAL SHOCK. PARTICULARLY WHEN
USED IN :DAMP LOCATIONS |N PROXIMITY TO
PLUMBING. IF A:N ELECTRICAL SHOCK OCCURS
THERE IS THE POTENTIAL OF A SECONDARY
HAZARD SUCH AS YOUR HANDS CONTACTING THE
CUTTER BLADE.
If power cord is worn or cut, or damaged in any way, have it
replaced immediately.
Yourshaper is wired for 120 volts and h_s a plug th at looks like
the one shown below.
3-PRONG
PLUG
GROU NDING
PRONG
PROPERLY
GROUNDED
OUTLET
@
If the outlet you are planning to use for this power tool is
of the two prong type DO NOT REMOVE OR ALTER
THE GROUNDING PRONG IN ANY MANNER. Use an
adapter as shown and always connect the grounding lug to
known ground.
tt is recommended that you have a qualified electrician
replace the TWO prong outlet with a properly grounded
THREE prong outlet.
A temporary adapter as shown below is available for
connecting plugs to 2=prong receptacles. The green
grounding tug extending from the adaptor must be
connected to a permanent ground such as to a properly
grounded outlet box.
A temporary adapter as illustrated is available for
connecting plugs to 2-prong receptacles, The temporary
adapter should be used only until a properly grounded
outlet can be installed by a qualified electrician.
GROUNDING LUG
l_his power tool is equipped with a 3_conductor cord and
grounding type plug listed by Underwriters" Laboratories. The
ground conductor has a green jacket and is attached to the
tool housingat one end and tothe ground prong in the attach-
ment plug at the other end.
This plug requires a mating 3-conductor grounded type outlet
as shown above.
3-PRONG
PLUG
MAKE SURE THISIS
KNOWN GROUND
2*PRONG
RECEPTACLE
ADAPTE R
NOTE: The adapter illustrated isfor use only if you already
have a properly grounded 2-prong receptacle.
The use of any extension cord will cause some loss of
power, To keep this to a minimum and to prevent
overheating and motor burn-out, use the table below to
determine the minimum wire size (A.W.G,) extension cord.
Use only 3 wire extension cords which have 3-prong
grounding type plugs and 3-pote receptacles which accept
the tools plug.
Extension Cord Length
Wire Size AWG
0-25 FT ................................. 16
26-50 FT ............................... 14
51-100 FT ................................ 12
MOTOR ROTATION
The motor is designed to rotate either clockwise or
counterclockwise and can be changed from one rotation to
the other bythe use of a select switch located on the side of
the motor.
4
