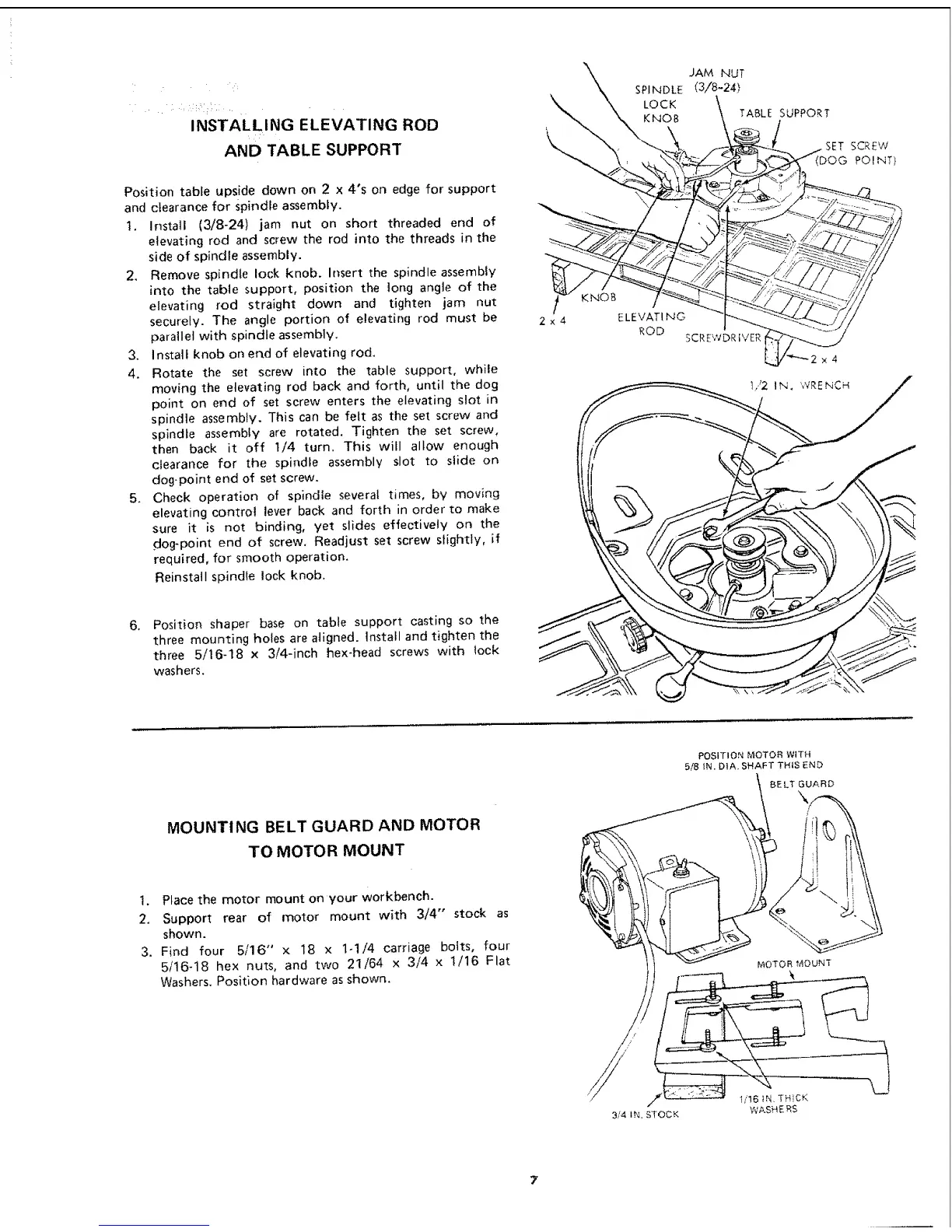

INSTALLING ELEVATING ROD
AND TABLE SUPPORT
Position table upside down on 2 x 4's on edge for support
and clearance for Spindle assembly.
1. Install (3/8-24) jam nut on short threaded end of
elevating rod and screw the rod into the threads in the
side of spindle assembly.
2. Remove spindle lock knob. Insert the spindle assembly
into the table support, position the long angle of the
elevating rod straight down and tighten jam nut
securely. The angle portion of elevating rod must be
parallel with spindle assembly.
3. Install knob on end of elevating rod.
4. Rotate the set screw into the table support, while
moving the elevating rod back and forth, until the dog
point on end of set screw enters the elevating slot in
spindie assembly. This can be felt as the set screw and
spindle assembly are rotated. Tighten the set screw,
then back it off 1/4 turn. This will allow enough
clearance for the spindle assembly slot to slide on
dog-point end of set screw.
5. Check operation of spindle several times, by moving
elevating control lever back and forth in order to make
sure it is not binding, yet slides effectively on the
dog-point end of screw. Readjust set screw slightly, if
required, for smooth operation.
Reinstall spindle lock knob.
, Position shaper base on table support casting so the
three mounting holes are aligned. Install and tighten the
three 5/!6-18 × 3/4-inch hex-head screws with lock
washers.
MOUNTING BELT GUARD AND MOTOR
TO MOTOR MOUNT
1. Place the motor mount on your workbench.
2. Support rear of motor mount with 3/4" stock as
shown.
3. Find four 5/16" x 18 x 1-1/4 carriage bolts, four
5/16-18 hex nuts, and two 21/64 x 3/4 x t/16 Flat
Washers. Position hardware as shown.
POSITION MOTOR WITH
51"8 IN. DIA, SHAFT TI41S END
BELT GUARD
MOTOR MOUNT
3/4 IN, STOOl<
t/16 IN.THiCK
WASHERS
