5/16INHEXNUTS

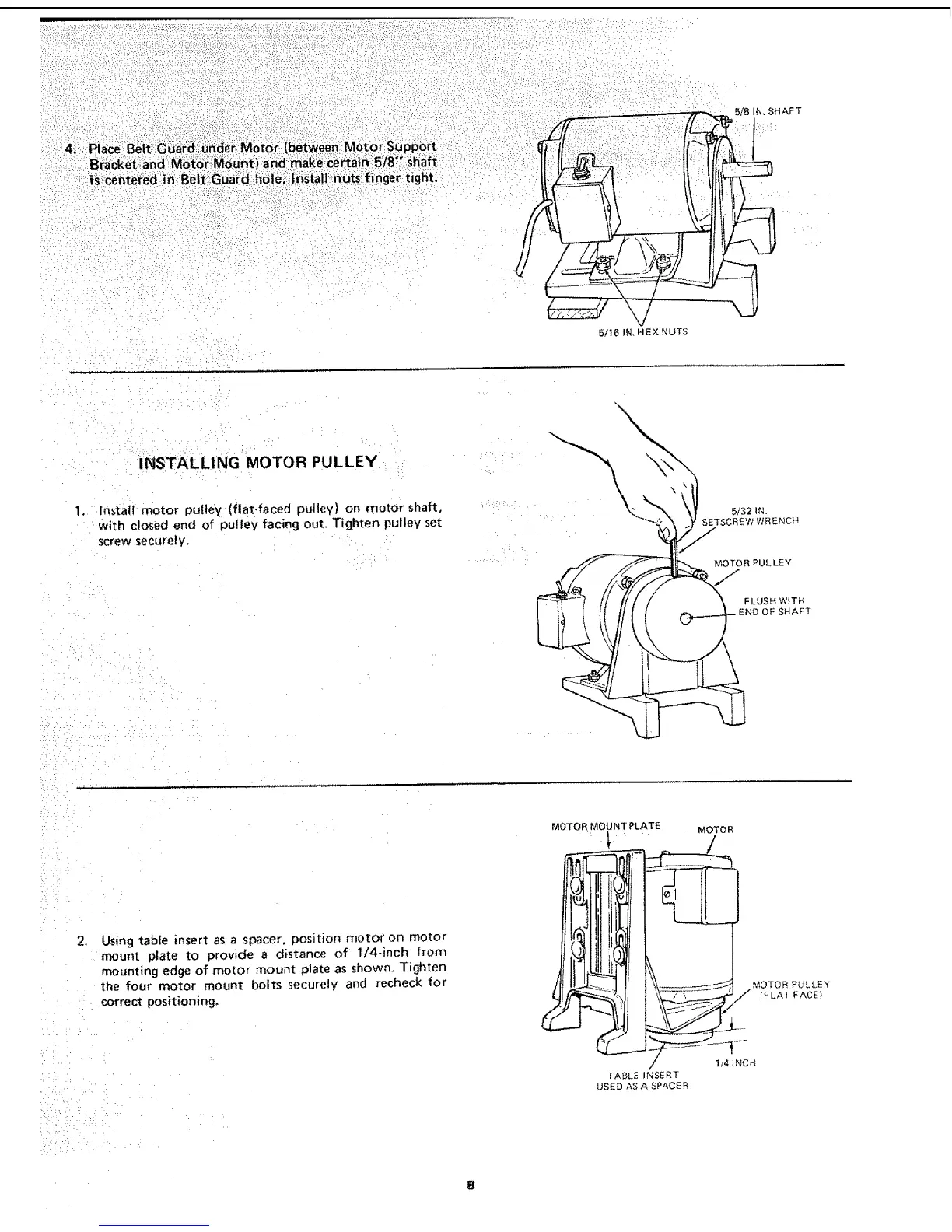

INSTALLING MOTOR PULLEY
1. Install motor pulley (flat-faced pulley) on motor shaft,
with closed end of pulley facing out. Tighten pulley set
screw securel y.
5132 IN,
SETSCREW WRENCH
f
/"
MOTOR PUL LEY
F LUSH W{TH
SHAFT
2.
Using table insert as a spacer, position motor on motor
mount plate to provide a distance of 1/4-inch from
mounting edge of motor mount plate as shown. Tighten
the four motor mount bolts securely and recheck for
correct positioning.
_IOTOR MOiNT PLATE MOTOR
MOTOR £ULLEY
/ 1/4 INCH
TABLE INSE RT
USED AS A SPACER
