All electrical consumers are connected via control panel. Each consumer is
equipped with an automatic circuit breaker, a signal light and a switch to
turn it ON/OFF.
The main switch is located under the companionway.
Never work on the electrical installations without
disconnecting the power supply.
The batteries must be kept carefully fastened.
Do not store conducting objects near the batteries (metal
tools).
Never modify an electrical installation.
When leaving the boat, switch off the main switch.
CONTROL PANEL 12V:

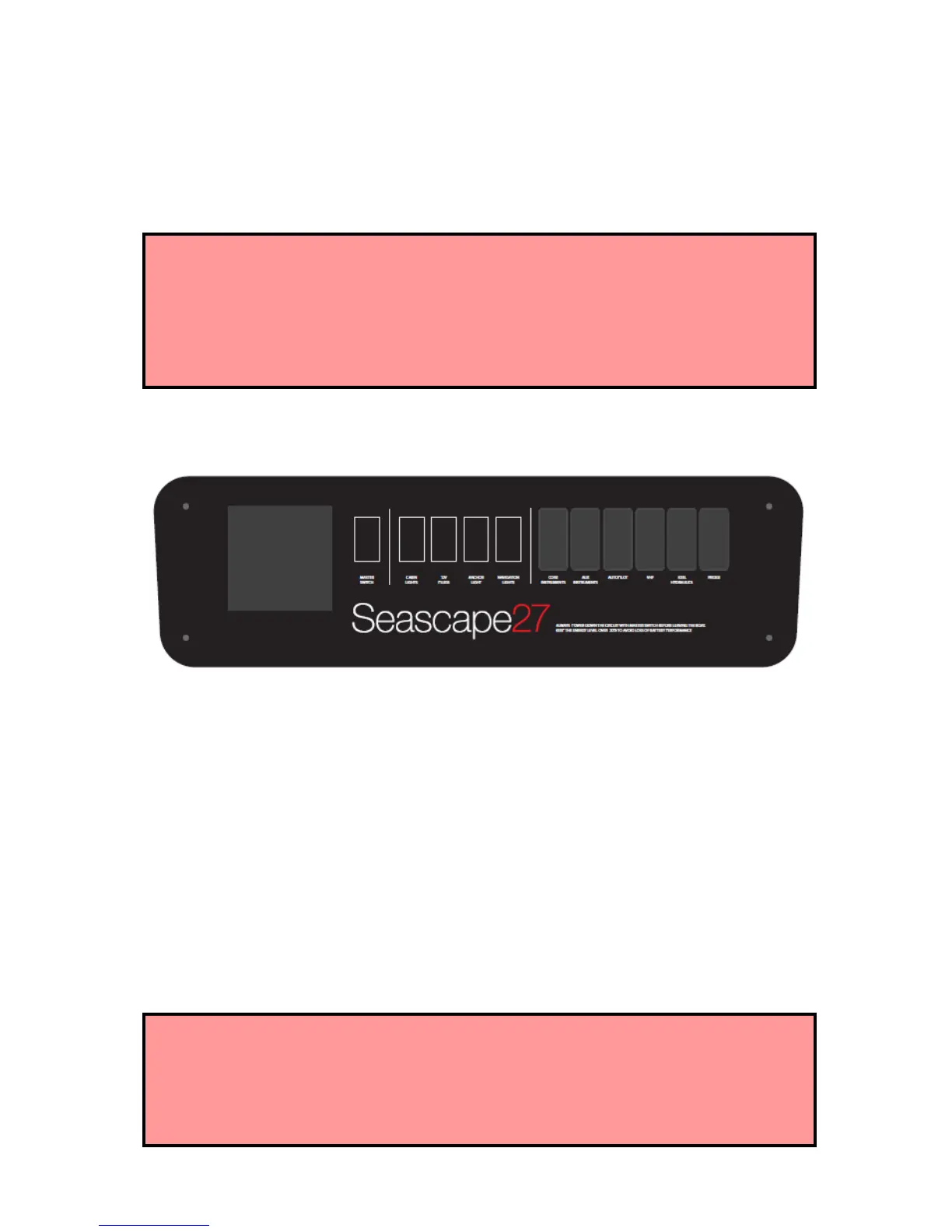

Figure 12
The control panel is installed under the companionway. The number of
switches differs from options selected. All circuit breakers on the control
panel are 10A.
6.4.2. 230V SYSTEM (OPTIONAL)
The boat is optionally equipped with a 230 V electrical circuit. Sockets are
located on the stern and on the starboard side of the upper stair.
When the boat is connected to an external 230 V supply then green light
is on.
Never work on electrical installation without disconnecting
the power supply. An electrical shock can cause fire.
Before connecting the cable on the shore connect it to the
boat.
Disconnect the cable after use.
First switch off the main switch in the boat then disconnect
