Identification – Single Lever (STM)3.3.2
ENGINE TRIM CONTROL (OPTIONAL)
LEVER POSITION
INDICATOR
INDICATOR DIMMING FEATURE:
When the control head is active, pressing SEL
repeatedly will cycle through the available
indicator brightness levels.
NEUTRAL INDICATOR LAMP:
This lamp has four states:
Steady green – engine is in neutral
Slow flashing green (0.5s on, 0.5s off) – Neutral
Throttle Warmup is engaged
Very slow flashing green (1s on, 2s off) – Trolling
Mode is engaged
Fast flashing green, with fast flashing amber – A
danger fault is active
See section 4.
SEL BUTTON:
Used to activate a control head.
To activate a control head:
• Put control lever in neutral and press SEL.
• The amber lamp signals the transfer status as follows:
Steady amber – station is active and in control of shift and throttle.
Slow flashing amber – station transfer from one station to another
is underway. You have five seconds to match the control lever positions
with those of the active station to complete the transfer.
Fast flashing amber – A warning fault is active. See section 4.
Lamp off – station is inactive
Note: If the lamp does not come on when you press SEL, Station
Protection may be enabled. See section 3.3.4.

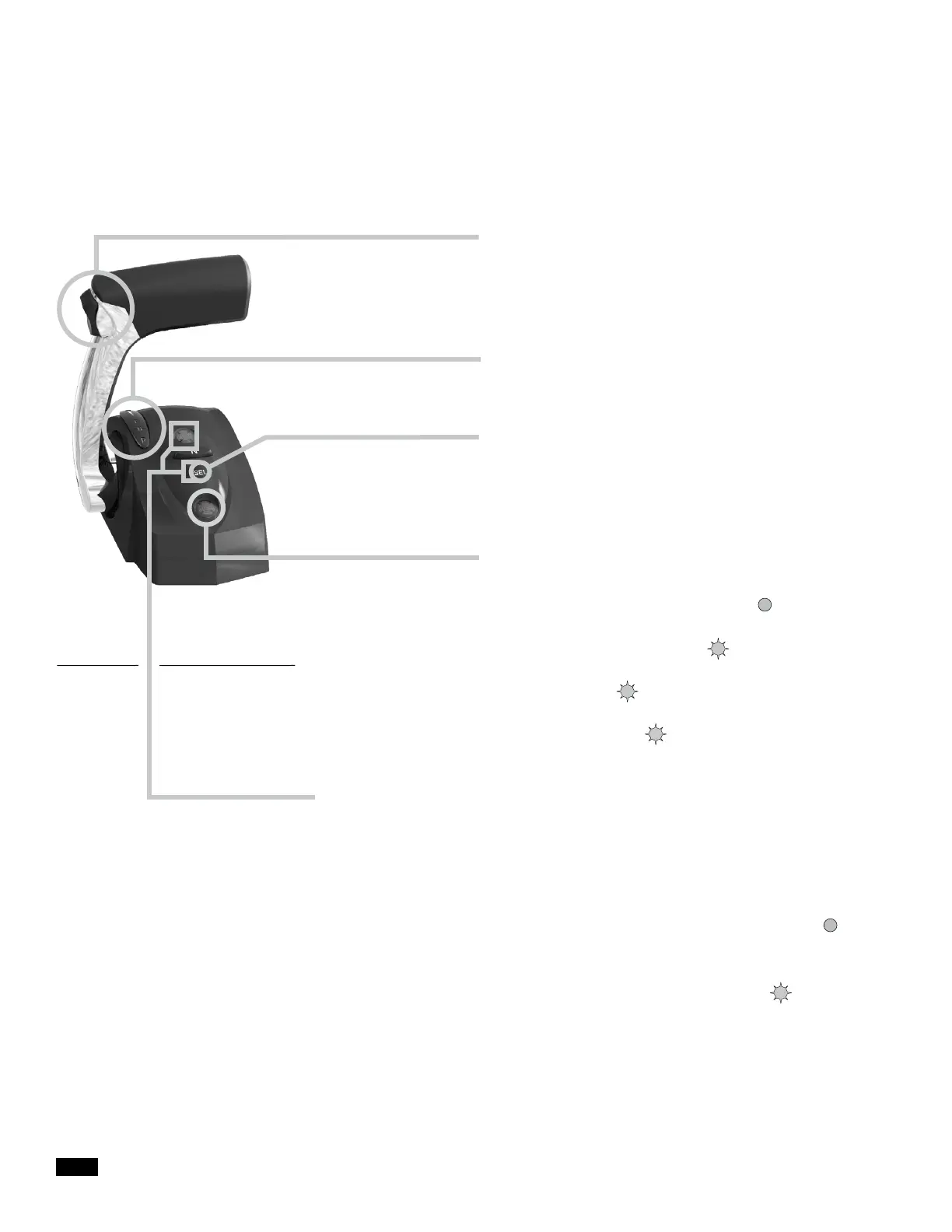

Figure 3-5.
