Fuses and bulbs
●
Never u
se a fuse with a higher value. Only
replace fuses with a fuse of the same amper-
age (same colour and markings) and size.
●
Never repair a fuse.
●
Never replace a fuse by a metal strip, staple
or similar.
CAUTION
●
T
o pr
event damage to the vehicle's electric
system, before replacing a fuse always turn
off the ignition, the lights and all electrical
elements and remove the key from the igni-
tion.
●
If you replace a fuse with higher-rating
fuse, you could cause damage to another part
of the electrical system.
●
Protect the fuse boxes when open to pre-
vent the entry of dust or humidity as they can
damage the electrical system.
Note
●
One component
may have more than one
fuse.
●
Several components may run on a single
fuse.
Vehicle fuses

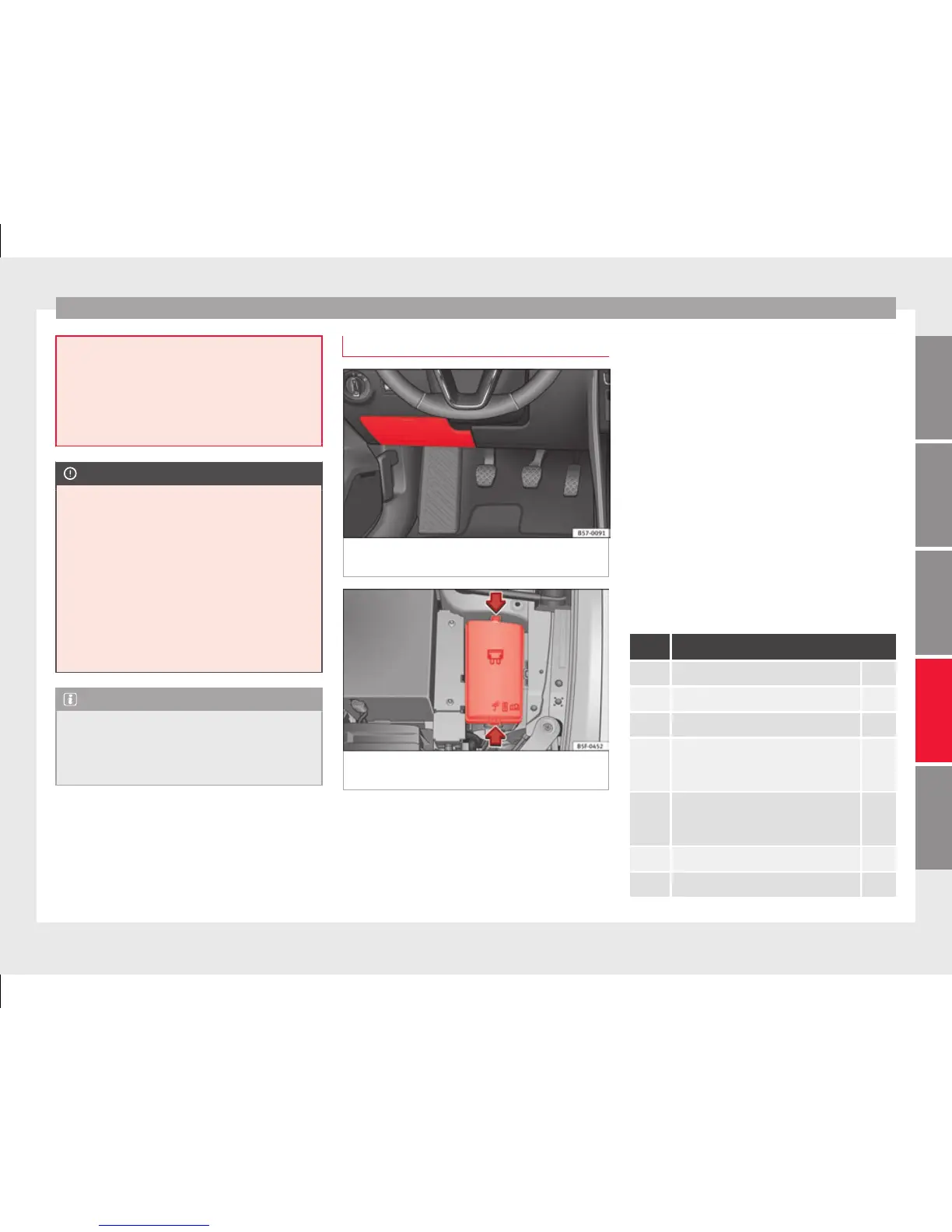

Fig. 100 On the driver-side dash panel: fuse
bo
x
cover
Fig. 101 In the engine compartment: fuse box
c
o
ver
Read the additional information carefully
›
›
›
page 51
Only replace fuses with a fuse of the same
amperage (same colour and markings) and
size.
Opening and closing the fuse box situated
below the dash panel
●
Opening: fold the cover down ››› Fig. 100.
●
Closing: push back the cover it in until it
clicks into place.
To open the engine compartment fuse box
●
Open the bonnet ››› page 282.
●
Press the locking tabs to release the fuse
box cover ››› Fig. 101.
●
Then lift the cover out.
●
To fit the cover, place it on the fuse box.
Push the locking tabs down until they click
audibly into place.
Fuses in the vehicle interior
No. Consumers/Amps
1 Adblue (SCR) 30
5 Gateway 5
6 Automatic gearbox lever 5
7
Air conditioning and heating control
panel, back window heating, auxiliary
heating.
10
8
Diagnosis, handbrake switch, light
switch, reverse light, interior lighting,
driving mode
10
9 Steering column 5
10 Radio display 7.5
»
91
