SEBA SEBAPuls - Positioning the Sebapuls

Chapter 4
10

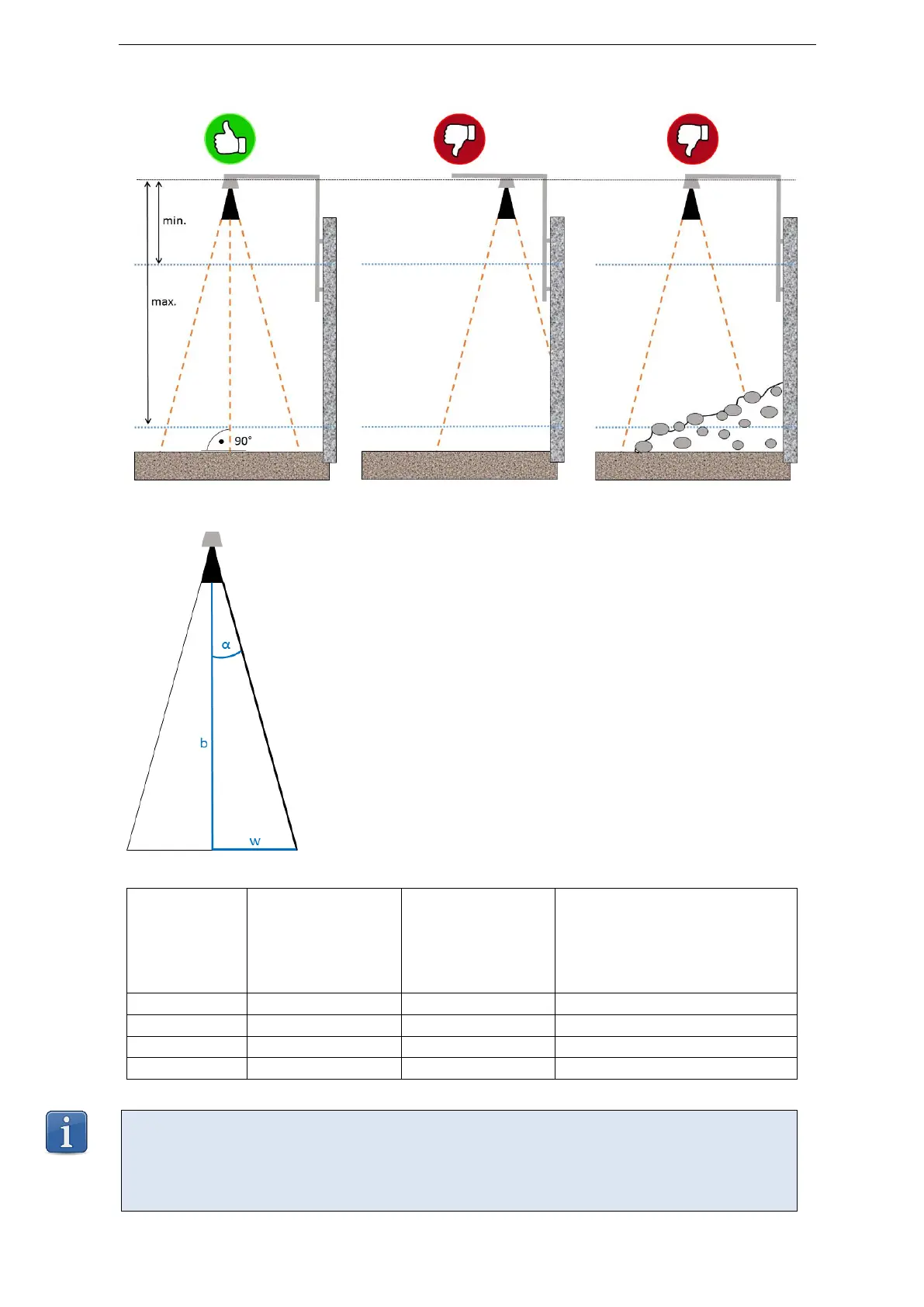

4.4 Positioning the SEBAPuls
Formula to calculate minimum distance to wall/shore/etc.
w= tan α*b
α = radiation angle
b = measuring range
w = radiation radius (minimum distance to wall/shore/etc.
Model
Radiation
angle
α
Measuring range
b
Radiation radius (minimum
distance to wall/shore)
w
SEBAPuls 8
10°
8 m
1.41 m
SEBAPuls 15
5°
15 m
1.31 m
SEBAPuls 20
5°
35 m
3.06 m
SEBAPuls 120
3.5°
120 m
7.34 m
Important notice
Pay attention to the vertical installation of the sensor shaft to the measuring medium because
otherwise the echoes are reflected into wrong directions and cannot be received by the
antenna.
Reference plane
