4.3 Reference plane and antenna edge

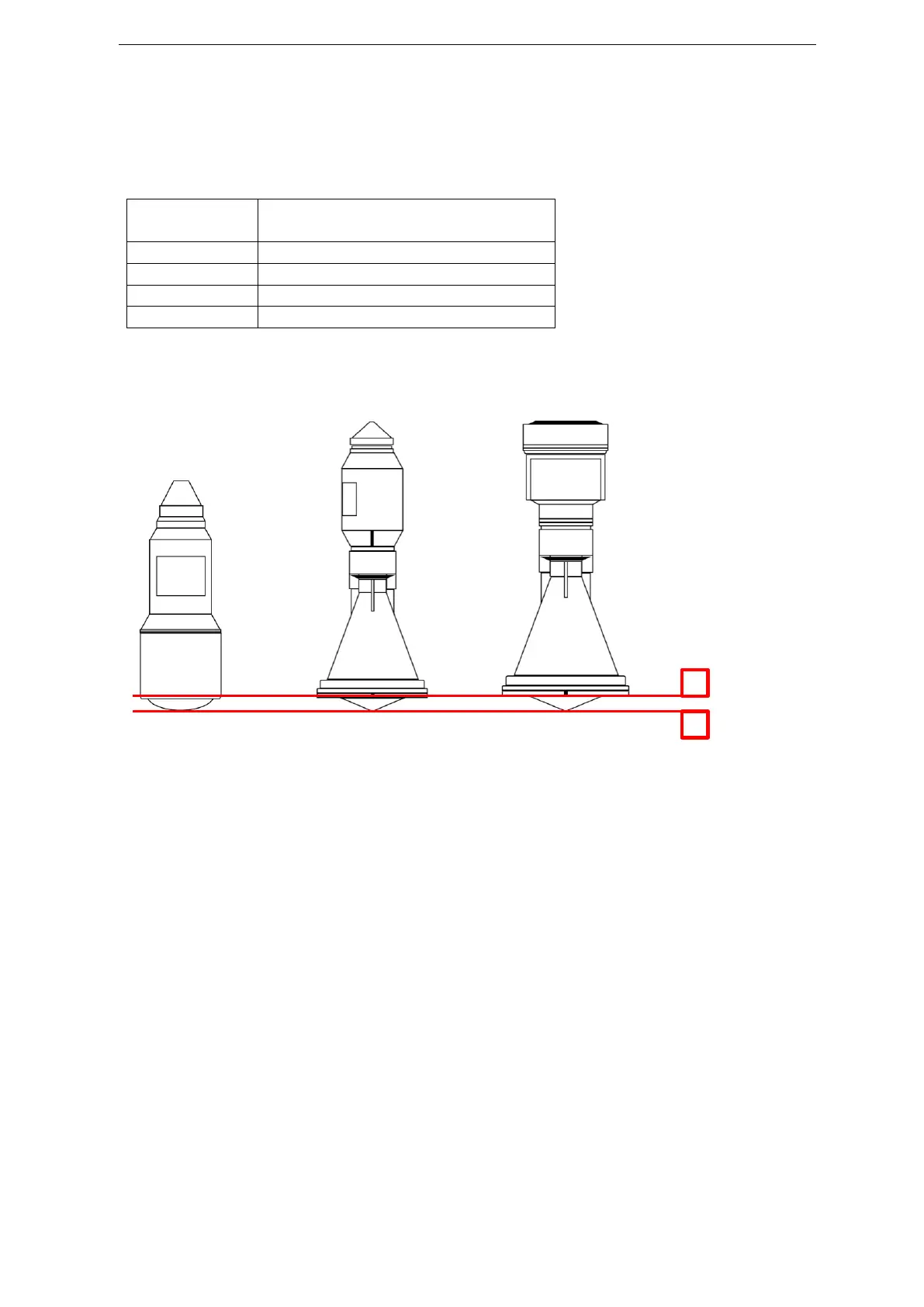

The reference plane (1) marks the zero point of the measuring range of each sensor.
The minimum distance to the water surface is measured from the end of the antenna (2) on the
sensor. The following minimum distances to the water surface apply to the various sensor types:
* Individual setting possible, sensor needs to be sent to SEBA.
(1) Reference plane
(2) Antenna edge
Model
Minimum distance to water surface*
(measured from antenna edge)
SEBAPuls 8
5 cm, factory setting 0,5 m
SEBAPuls 15
5 cm, factory setting 1 m
SEBAPuls 20
5 cm, factory setting 1 m
SEBAPuls 120
25 cm, factory setting 1 m
SEBAPuls 8
SEBAPuls 20 / 120
1
2
SEBAPuls 15
