Chapter 4
7
Mounting with mounting strap
The types SEBAPuls 15, 20 and 120 can be mounted using a mounting strap. First attach the
mounting strap to the desired position and then attach the radar sensor to the mounting strap
using the screws provided.
The mounting strap is optional for the SEBApuls 15 and included in the standard scope of delivery
for the SEBAPuls 20 and 120 types.
The mounting strap can be attached both to the SEBA standard boom and directly to ceilings or
walls.
For the distance to the wall, refer to chapter 4.4.

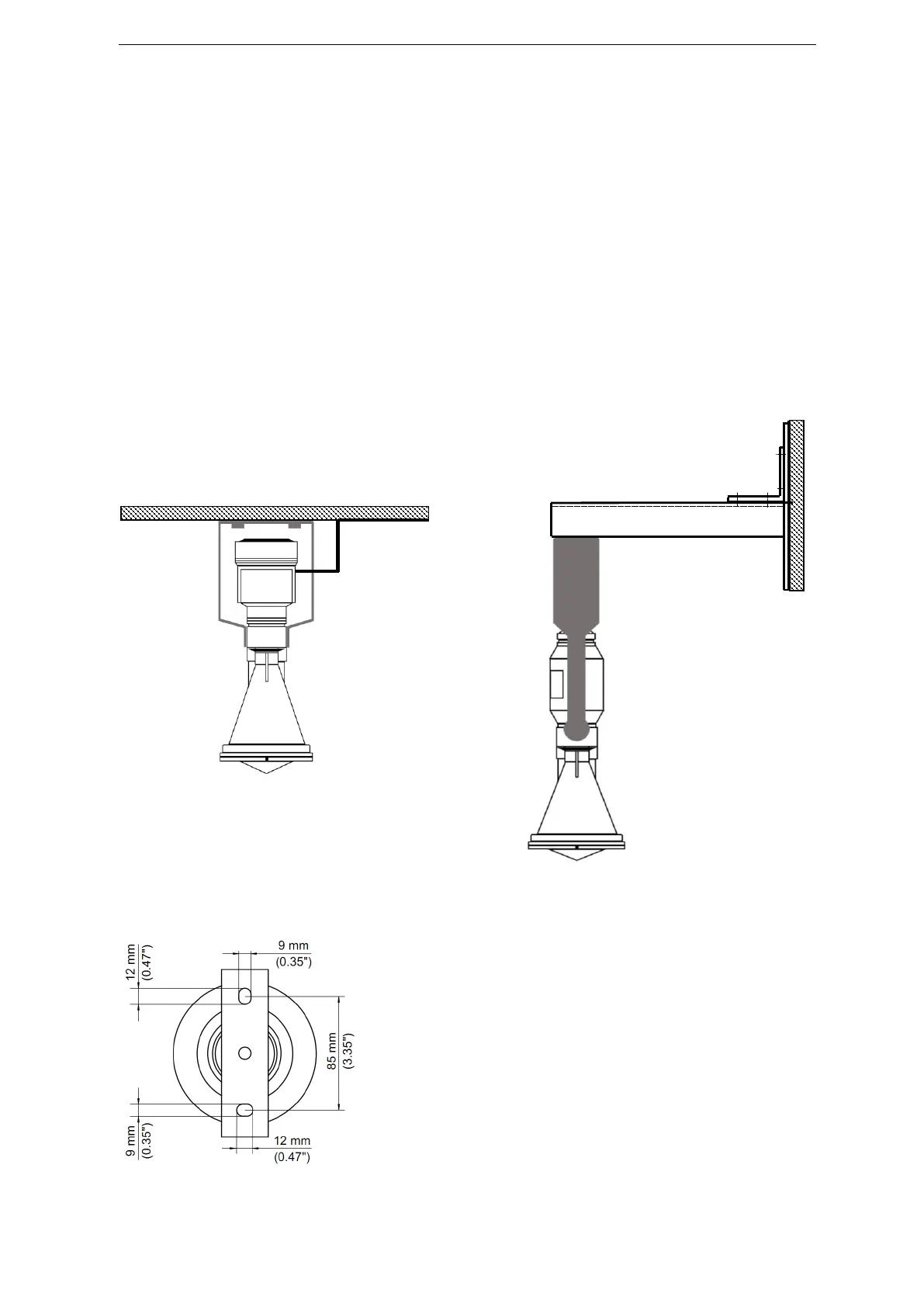

SEBAPuls 20 / 120 SEBAPuls 15
Ceiling mounting with mounting strap mounted to SEBA standard boom
with mounting strap
Top view of mounting strap
