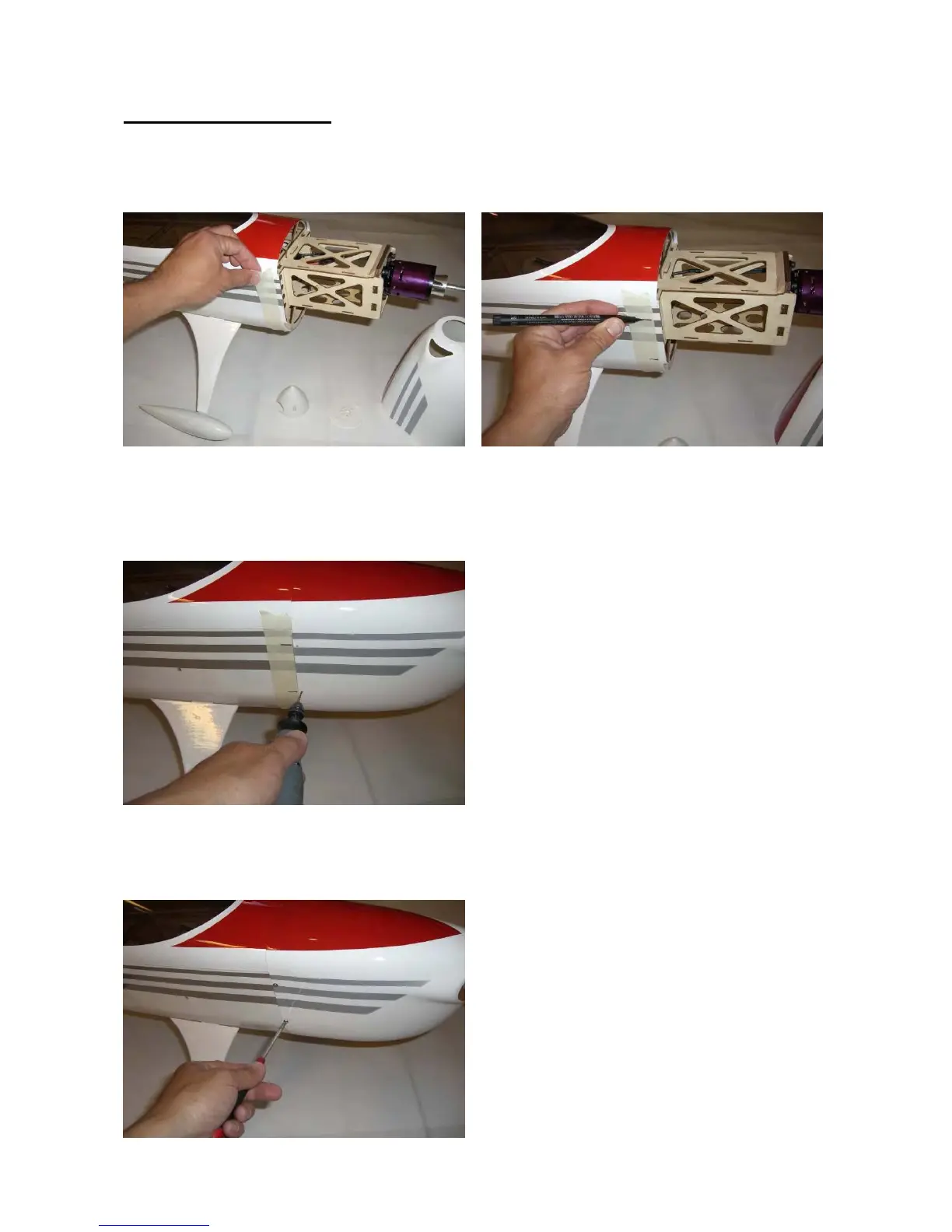

Section 9 – cowl installation
step 1
Apply a piece of masking tape on the line were you have to make the holes for the cowl fixing
screws, than mark the position as per the picture.
step 2
Slide the cowling onto the fuselage and install the spinner back plate. Then apply another piece of
masking tape on the same line of the one applied before. Drill the location for the four self-tapping
screws using a 1.5mm drill bit.
step 3
Attach the cowl using the four self-tapping screws, included in hardware pack, with a Phillips
screwdriver.
