User Manual
28
Work Environment
Model
1KVA-3KVA series
Temperature
0～40
Relative Humidity
0～95% non-condensing
Altitude
＜1500m. when ＞1500m, lower the rated power
for use
Store temperature
-25～55
Mechanical Specification
Model
Dimension W x D x H
(mm)
Net weight/Gross
weight(kg)
1KVAS
144*361*215
10.2/11
1KVAH
5.2/6
2KVAS
191*428*337
19.5/21.1
2KVAH
9.5/11.1
3KVAS
24/25.6
3KVAH
9.7/11.3
6.5 Communication interface
6.5.1 RS232 communication interface

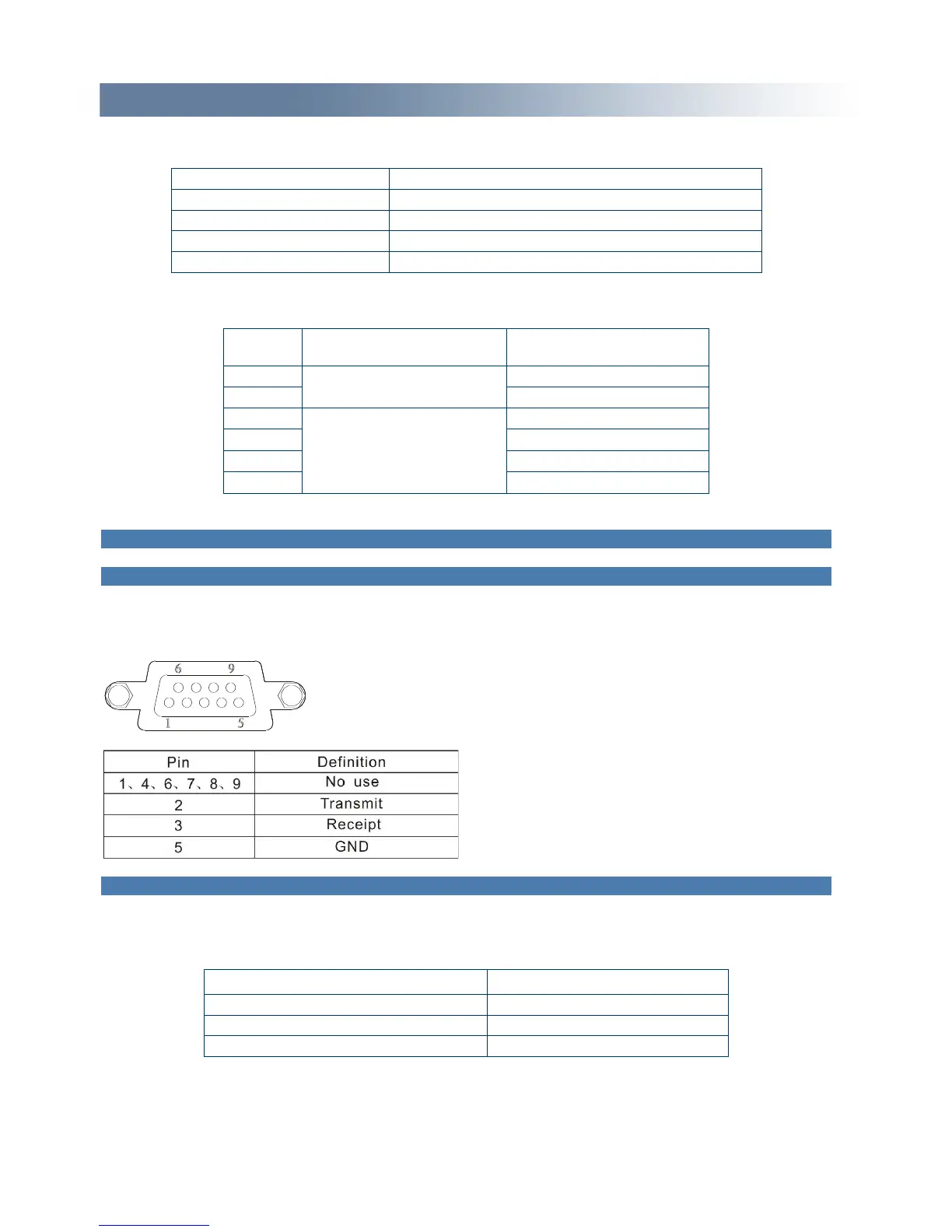

This UPS provides a standard DB9 communication interface on its rear panel, the definition of the
pins is as following:
6.5.2 RS232 cable specifications
When connecting the UPS with PC by RS232 cable, it needs to use the standard RS232 cable, the
detailed cable NO. Are as following:
PIN 1 (hole) to computer serial port
PIN 2 (needle) to UPS serial
port
2
2
3
3
5
5
