Example Four: Comparison of Waveforms
REC_A/ REC_B/ REC_C/ REC_D function in E field can be used to compare a standard signal with
an unknown signal.
Follow these steps:

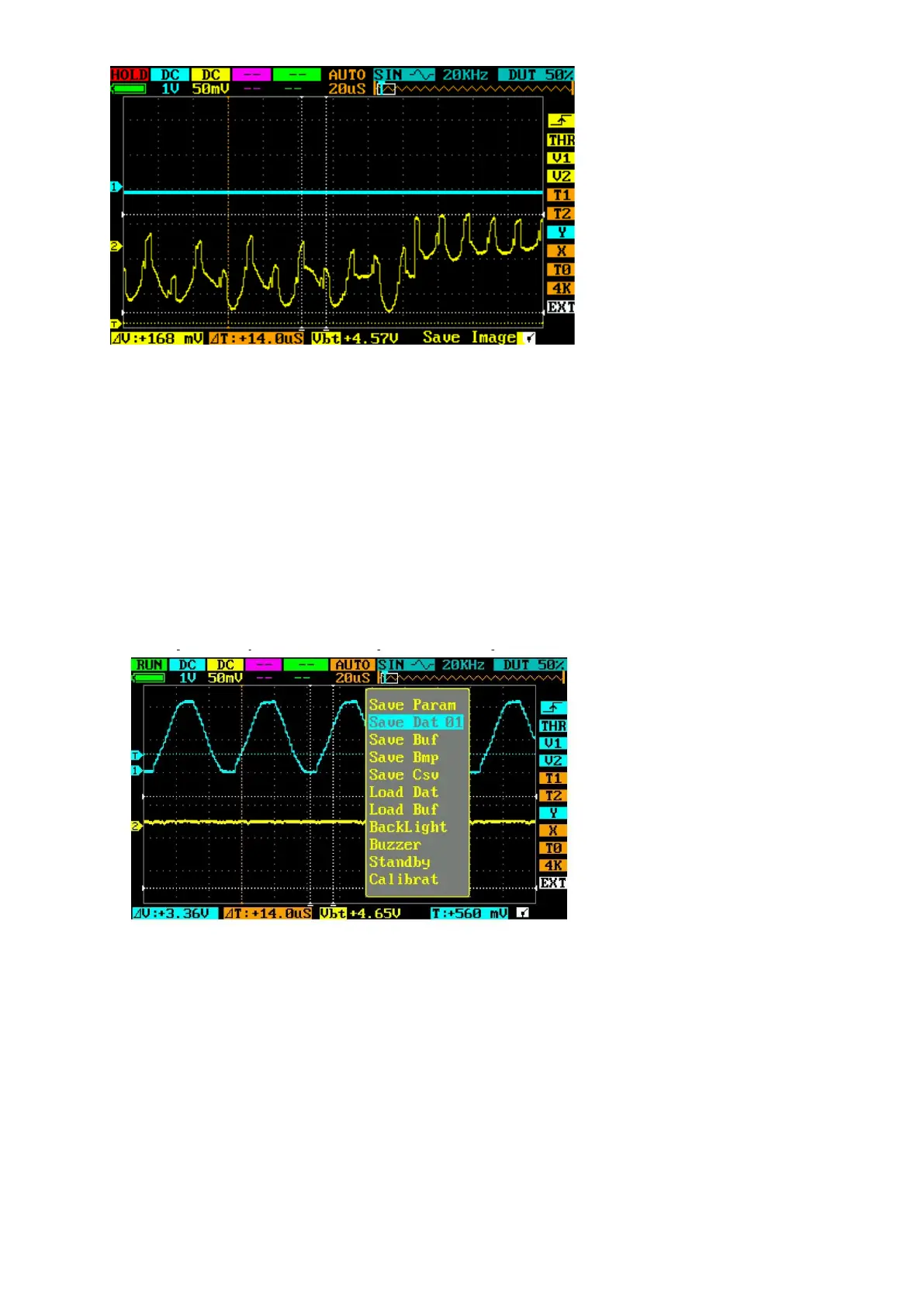

1. Input a standard signal to CH_A. Press ■, and choose Save Dat 01 to save waveform, as shown
in Figure 4.1:
2. Input an unknown signal to CH_A. In E field choose REC_A. Press ■, and choose Load Dat, as
shown in Figure 4.2:
3. Navigate to Y in P field. Adjust horizontal level, to compare waveforms, as shown in Figure 4.3:
Figure 4.1
