13

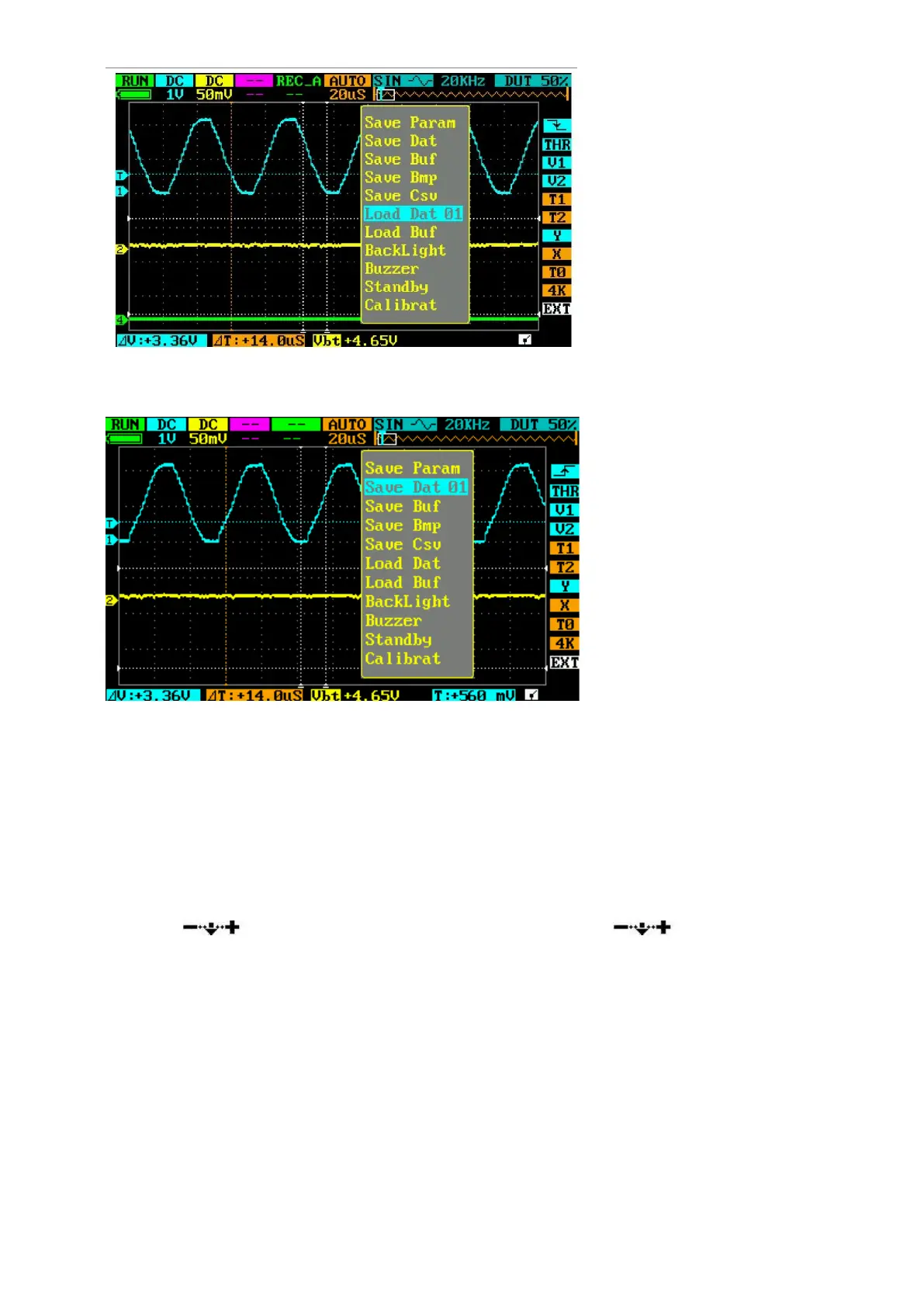

Figure 4.2
Figure 4.3
Example Five: Save waveform images
Sometimes waveform images need to be archived and analyzed on PC platform.
Follow these steps:
1. Acquire a signal trace.
2. Press ■ , and choose Save Bmp 01.
3. Scroll
to choose the correct file number, and then press to confirm.
The file (named IMAG001.BMP) will be saved to built-in USB disk; as shown in following figure.
To analyze waveform, copy the image file to your PC.
