Seeport 2 User Manual
Module Information

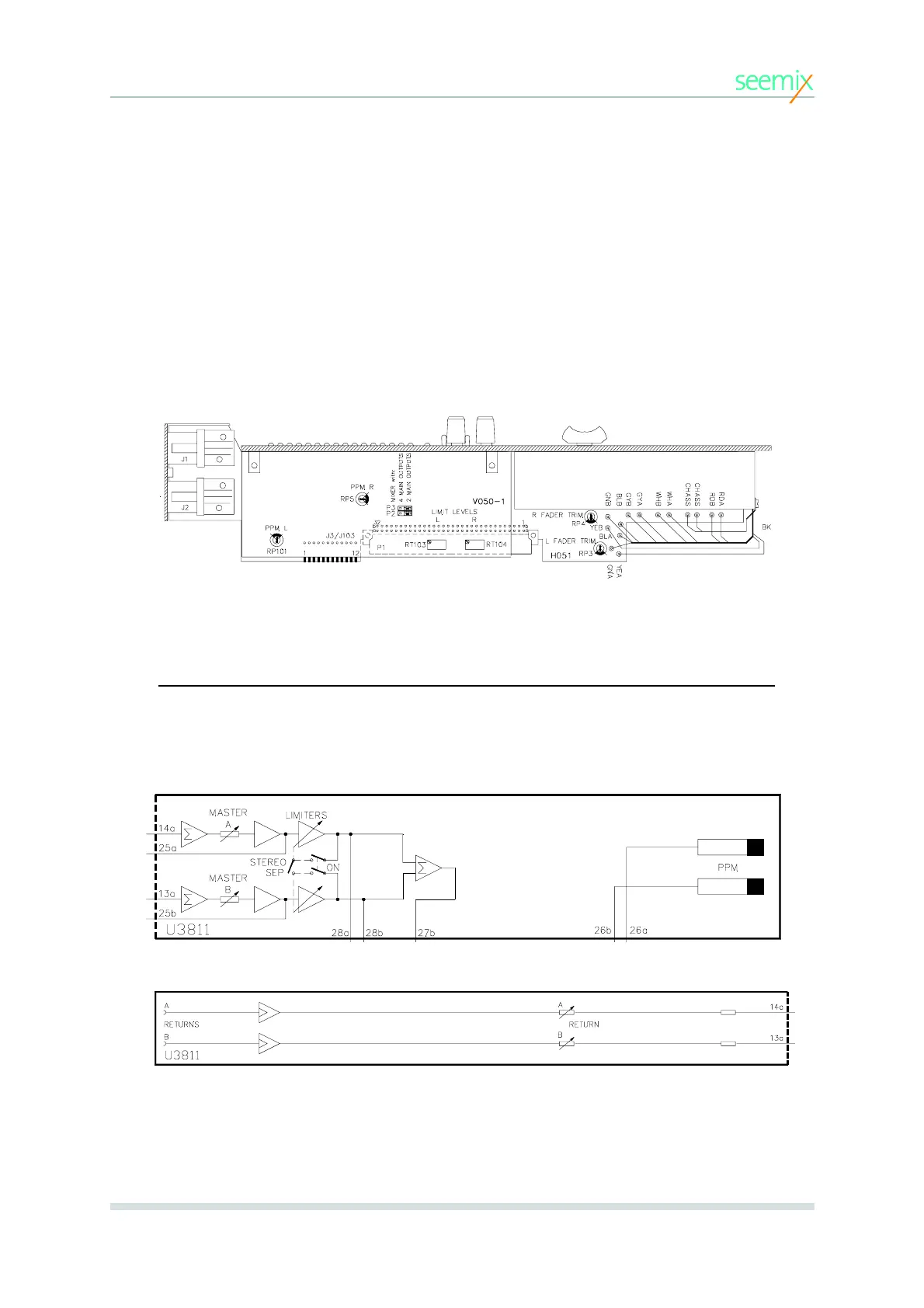

U3811 MODULE AUDIO BLOCK DIAGRAM
Jumper settings
SIGNALISATION.
When one or both faders are open, the fader start relay for the output
channels will be closed.
JUMPER SETTINGS.
This module is also used in the Seeport 4 mixer (two modules giving 4
outputs). Jumpers must be set accordingly as indicated in the drawing
below.
3. MODULES
