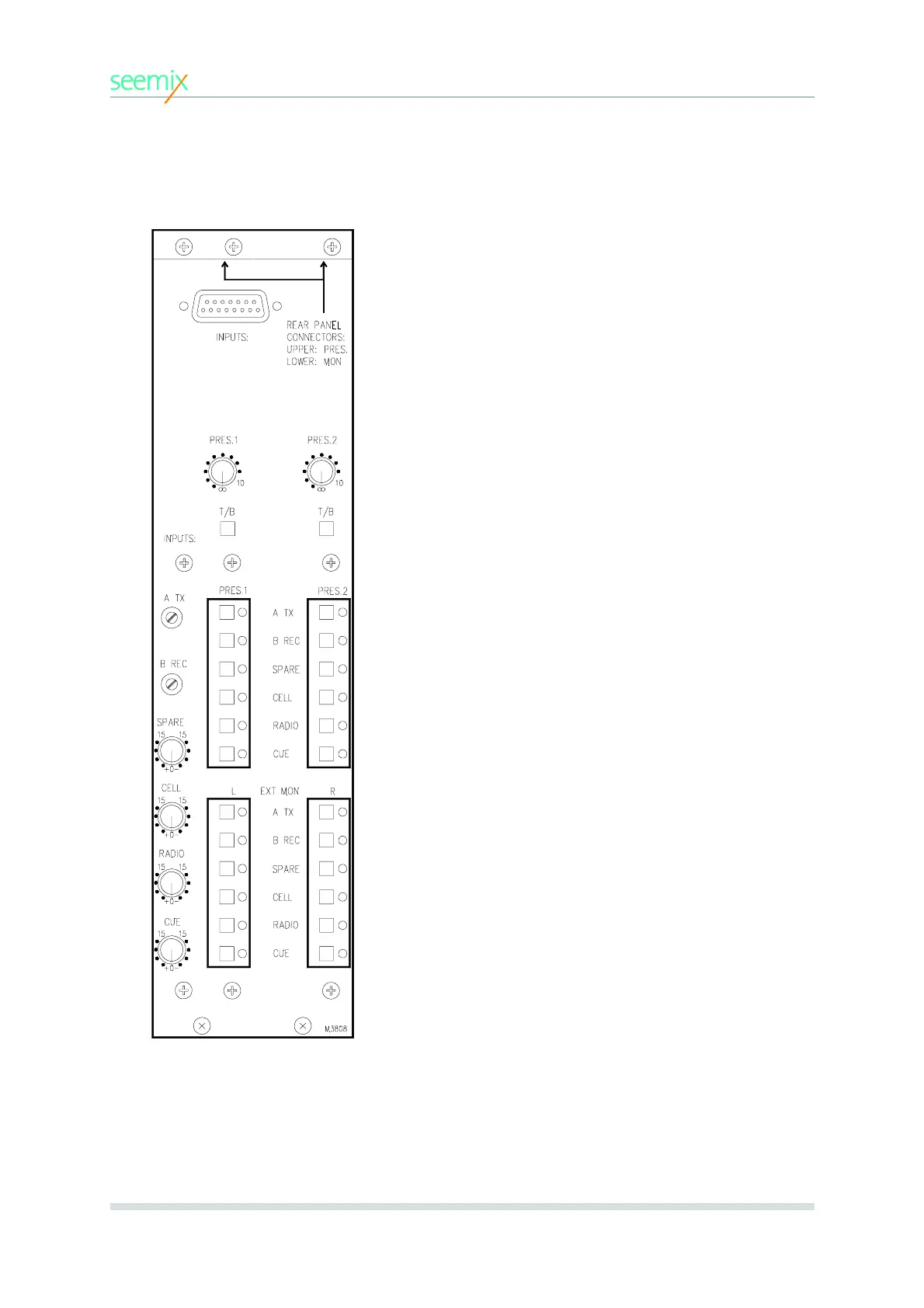

3.9 Presenter Monitor Feed Module, M3808
INPUTS
15-pin D-sub connector for external inputs SPARE, CELL,
RADIO and CUE.
Signals generated in the mixer (A and B outputs and talk-
back mic) are fed to the module via a factory modification
inside the mixer.
OUTPUTS
Four XLR connectors for the module outputs are positio-
ned at the rear of the module which appear on the back
panel. These are: Pres 1 headphones (mono), Pres 2
headphones (mono), Monitor left and Monitor right.
PRES1 - PRES2
Level controls for headphones outputs for each presenter,
plus monitor selection switches.
T/B-T/B
Pushbutton switches for sending talkback to each presen-
ter.
INPUT LEVEL CONTOLS
Adjusts input level for external sources plus A and B sums
from the mixer within +/- 15dB.
EXT MON
Monitor selection switches for L/R monitoring outputs.
3. MODULES
