Seeport 2 User Manual

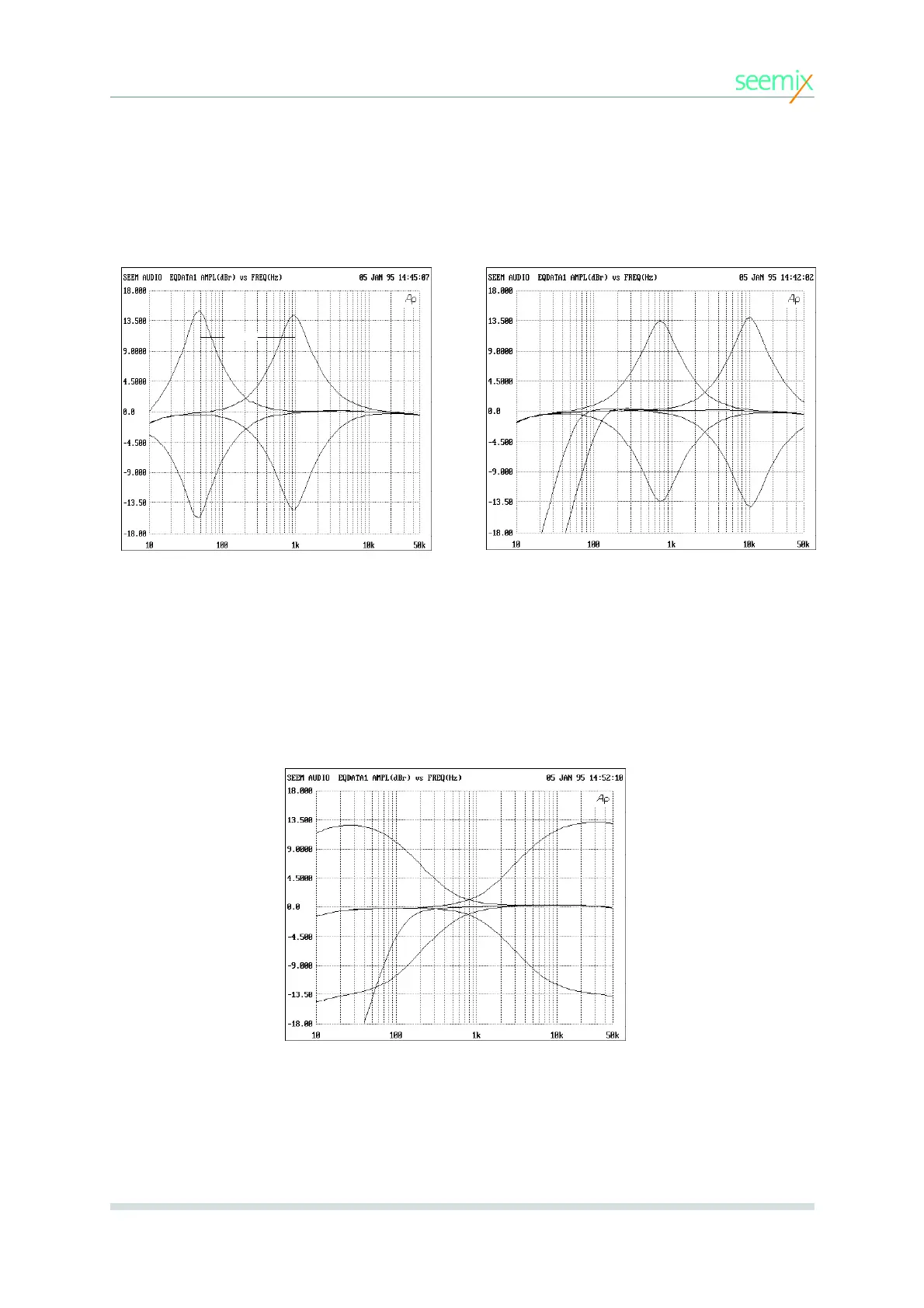

5.4 Equalizing Curves
Equalizer: ”HIGH” and ”LOW” shelving filter sections of
I3801 module at max peak/dip.
High Pass filter: 140 Hz cut off frequency (-12 dB / octave)
I3801 Stereo Line Input Module
I3800 Mic/Mono Line Input Module
Equalizer: ”HIGH” eq section of I3800 module at min
and max frequencies. Q-value at max peak/dip = 1.3.
High Pass Filter: At 80 and 140 Hz cut off frequencies.
(-12 dB/octave)
Equalizer: ”LOW” eq section of I3800 module at min
and max frequencies. Q-value at max peak/dip = 1.3.
LOW range
5. TECHNICAL INFORMATION
