PHONES (2)
Headphones jack connector. Headphones inserted here mo-
nitor the selected monitoring signal while muting the main
monitor outputs. The phones 2 output on the front of the
mixer is however not muted.
MON SOURCES TO EXT
Five external stereo sources, connected via a 25-pin D-sub
connector on back panel, can be summed and monitored
when the EXT monitor button on the M3810 module is selec-
ted.
COMPATIBILITY METER
Meter for indicating phase content/correlation in the stereo
output signal. Follows the selected monitoring source.
LOUDSPEAKER
Monitors the mono summed PFL signal.

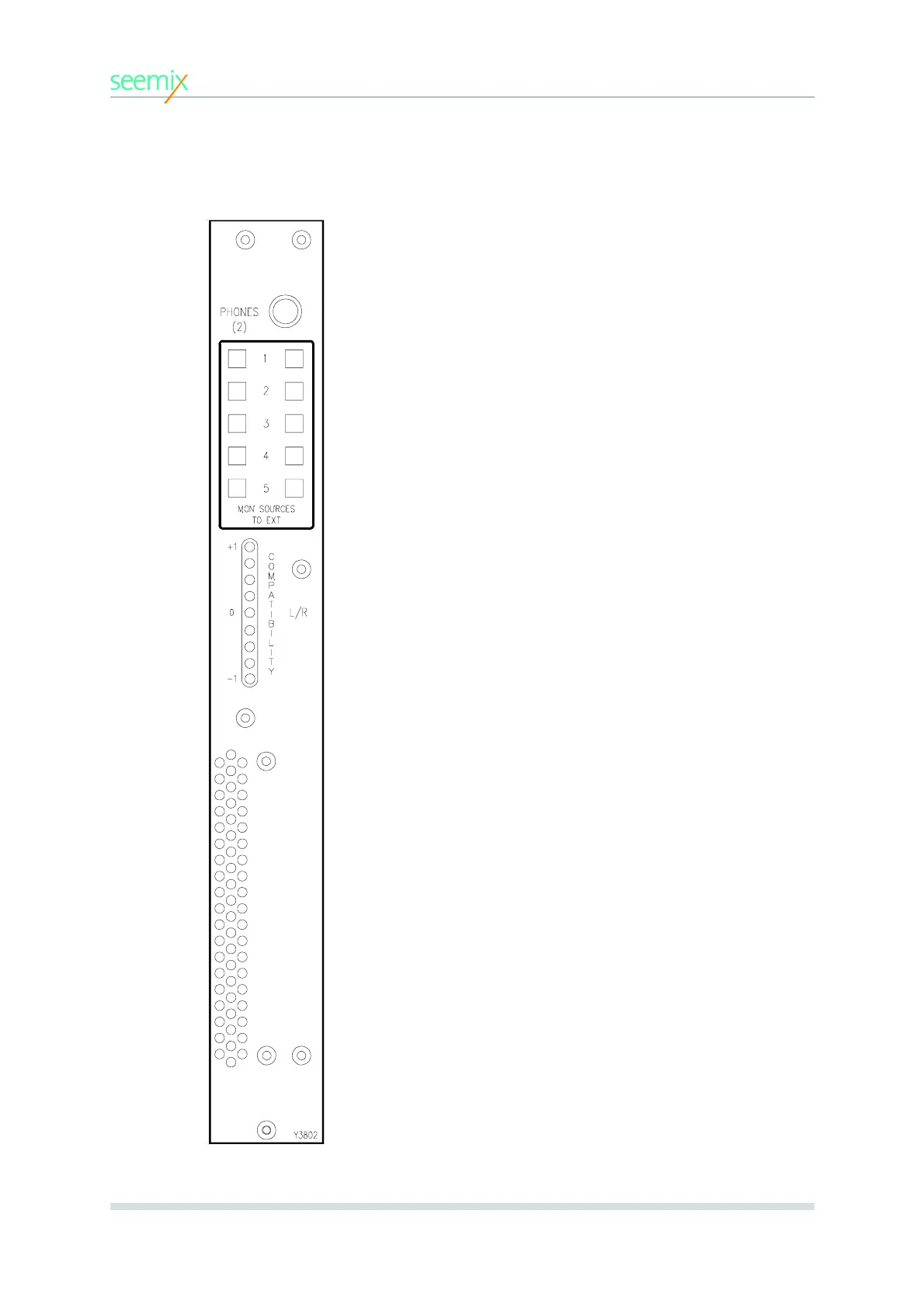

3.8 Ext. Monitor, PFL & Phase Meter Module, Y3802
