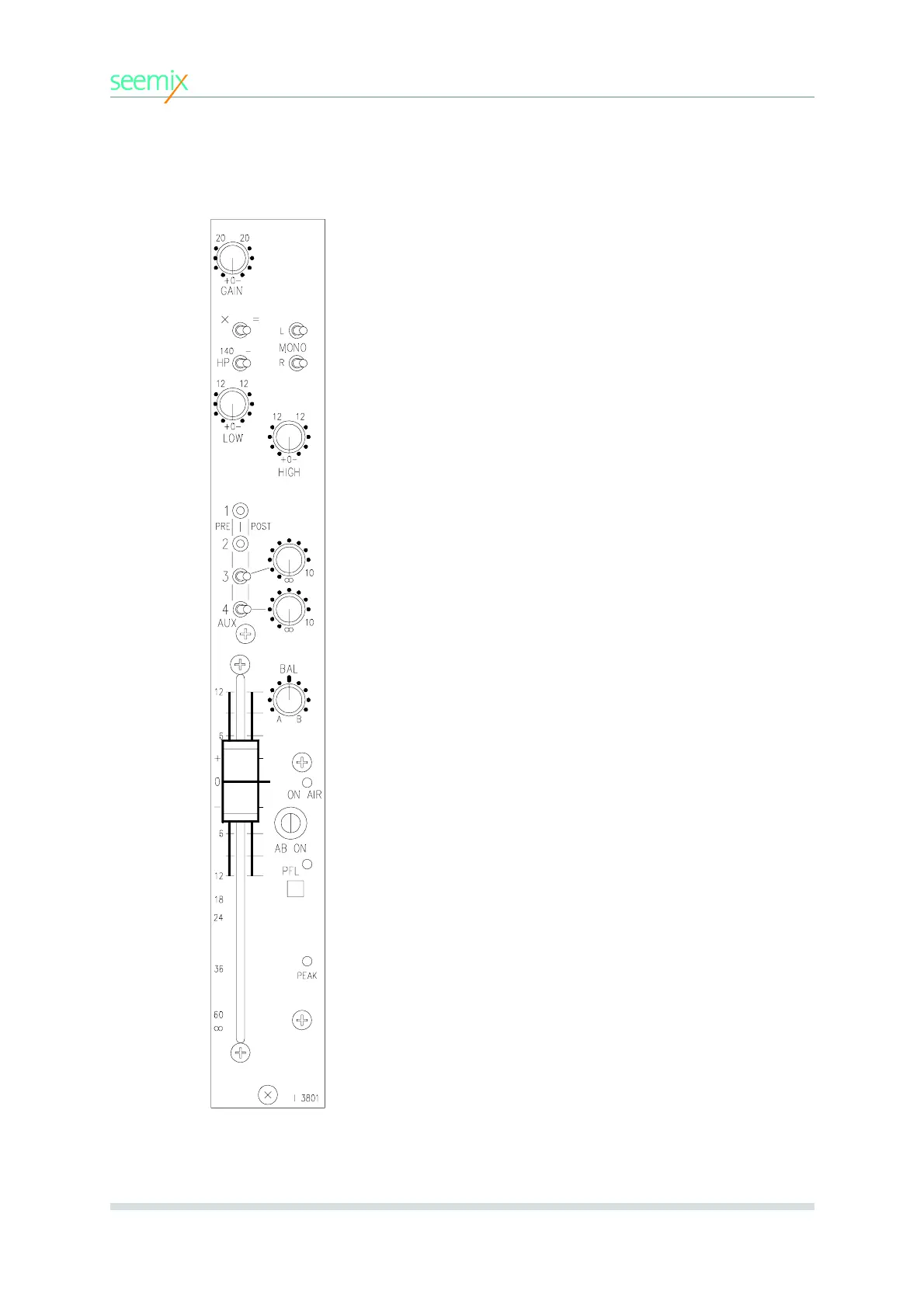

seemix seeport 2 - 3.2 Stereo Line Input Module, 13801

8
© Seemix Sound AS
GAIN
+/-20 dB fine gain adjustment.
X/=
Phase reversal switch.
HIGH PASS
High pass filter, 12 dB/octave. Cut off frequency 140 Hz.
MONO L/R
When both switches are in the right position (as shown) the
channel is stereo. When the L position is used, the left input
signal is sent to both A and B channels. When the R position
is used the right input signal is sent to both A and B
channels. If both switches are used, both left and right inputs
are sent to both A and B channels.
LOW
Shelving filter low end, +/-12 dB.
HIGH
Shelving filter high end, +/-12 dB.
AUX 1-4
AUX output pre-post selectors and level pots. AUX 1 and
AUX 2 have center off switches and no pots.
AUX send signal is the sum of left and right channels. Post
fader may be taken before or after AB ON switch (jumper
selectable).
BAL
Stereo balance potentiometer. Adjusts balance between A
and B outputs when A/B ON switch is depressed.
ON AIR LED
This is lit when the fader is open and the AB Switch is ON.
AB ON
Channel On switch. Affects stereo output only, leaving AUX
and PFL active.
PFL
Stereo pre-fade listen, with LED. Jumper settings determine
whether PFL is cut when channel is On Air, or is independent
of On Air status.
PEAK
Overload LED.
3.2 Stereo Line Input Module, I3801
3. MODULES
