Seeport 2 User Manual

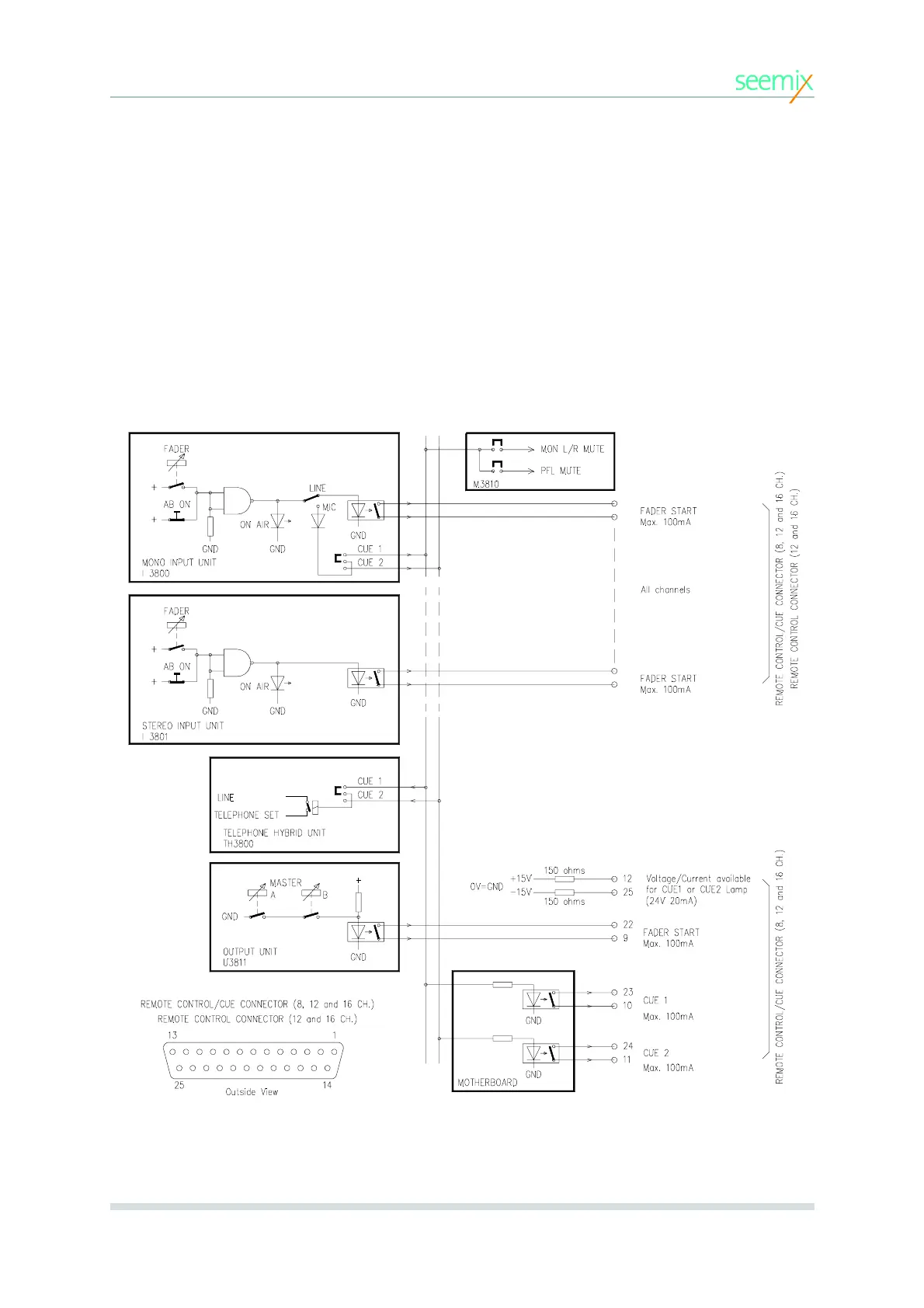

5.2 Remote Control / Cue System
A remote control (fader start) solid state relay output from each audio channel and the stereo
master output is available. On the I3800 mono input module, fader start is activated when the
input selector is set to LINE. In the MIC position, the control goes instead to one of two solid
state relay cue (ON AIR) outputs. These can be used for example to drive limited capacity ’on
air’ or ’ready’ lamps. Maximum current through the switches is 100mA.
Both CUE signals can also be used to disconnect a telephone set that is connected to the
TH3800 telephone hybrid module, in order to prevent the set from ringing.
The CUE1 signal can be used to MUTE the MON L/R output and/or the PFL MONO output
(jumper selectable on the M3810 module).
