seemix seeport 2 - Dimensions and Weights

35
Seeport 2 User Manual
5.7 Dimensions and Weights

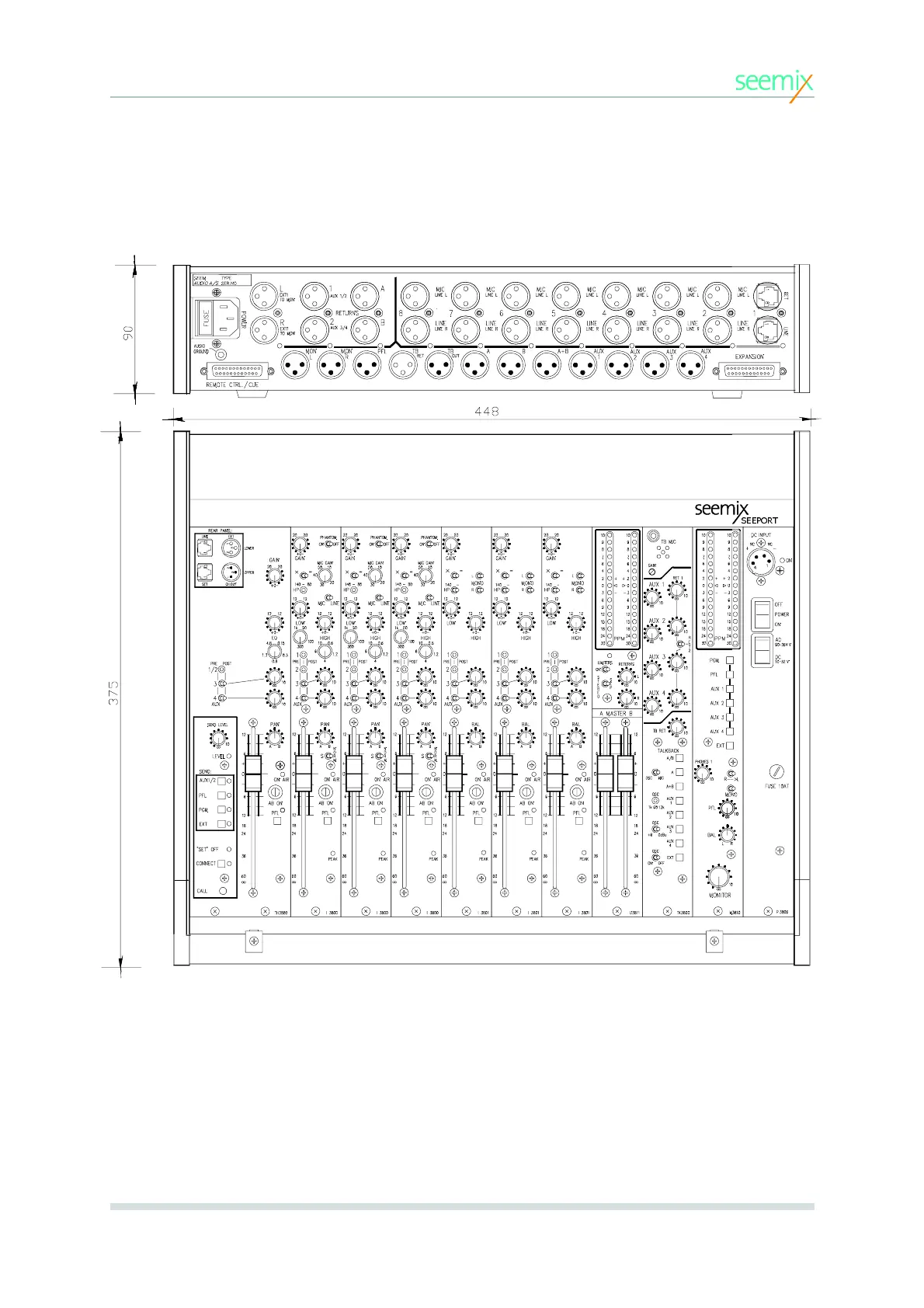

Dimensions shown for an 8 channel frame size:
Dimensions and weights for all frame sizes:
FRAME SIZE DIMENSIONS (WxDxH) WEIGHT
8 channel 448 x 375 x 90 mm 9,5 Kg
12 channel 636 x 375 x 90 mm 12,0 Kg
16 channel 778 x 375 x 90 mm 15,0 Kg
5. TECHNICAL INFORMATION
SEEPORT
