Smart Positioner

SP740 Series

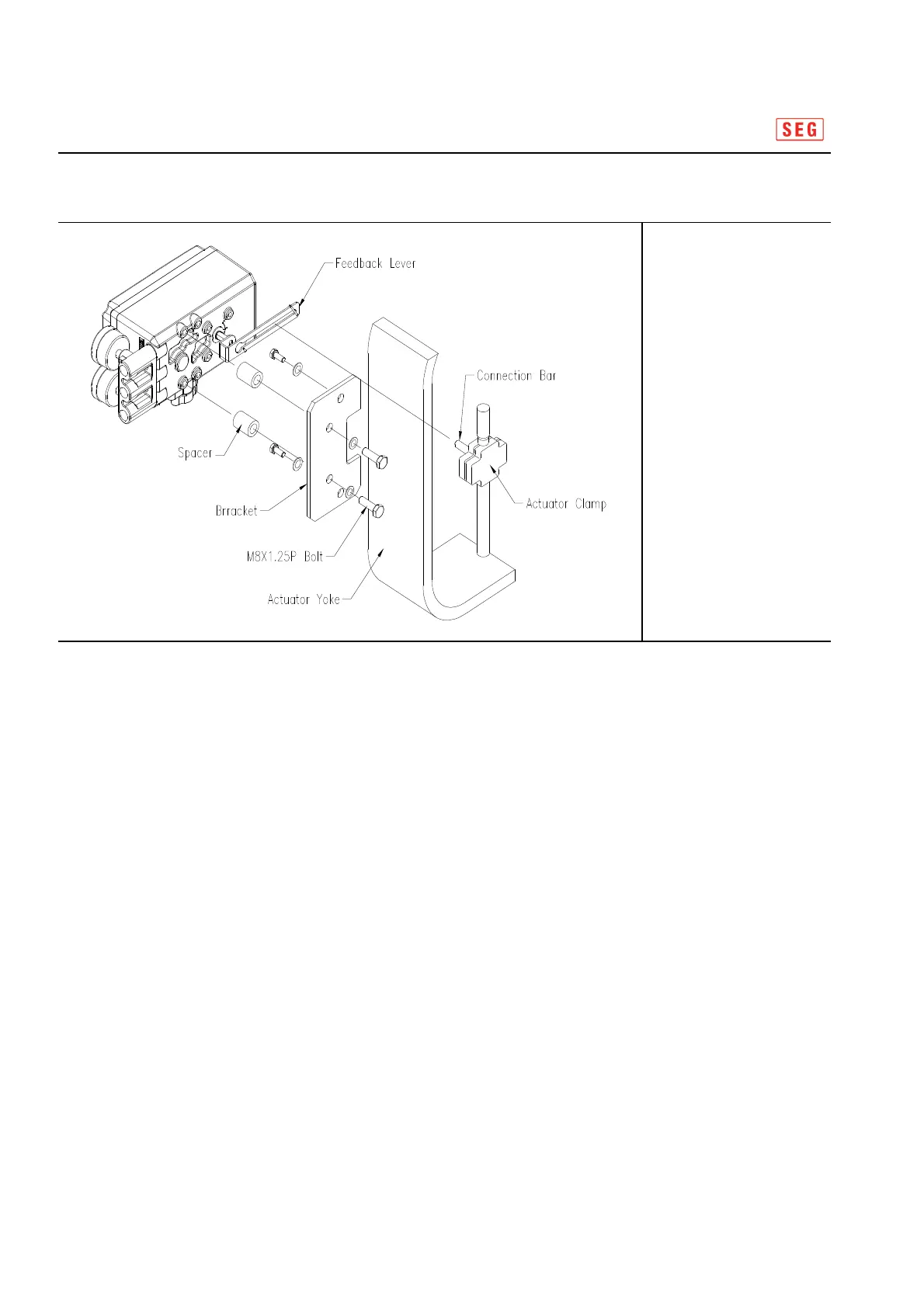

3.3.2 Standard Lever Type Positioner installation

① Feedback lever

② Spacer

③ Bracket

④ Bolt(M8)

⑤ Connection bar

SP740 Standard lever type

① Assemble with the enclosed bracket and bolts.

Figure 3-2:

①

②

③

④

⑤

18/40

① Assemble with the enclosed bracket and bolts.

② Connect positioner brackeck with boits in actuator yoke.

Tighten bolts loosely so that they may be modified location easily .

③ Connect air filter regulator in actuator temporarily.

And then decrease slowly into air regulator and valve stroke should be reached into

50% position of overall stroke.

18/40
