Smart Positioner

SP740 Series

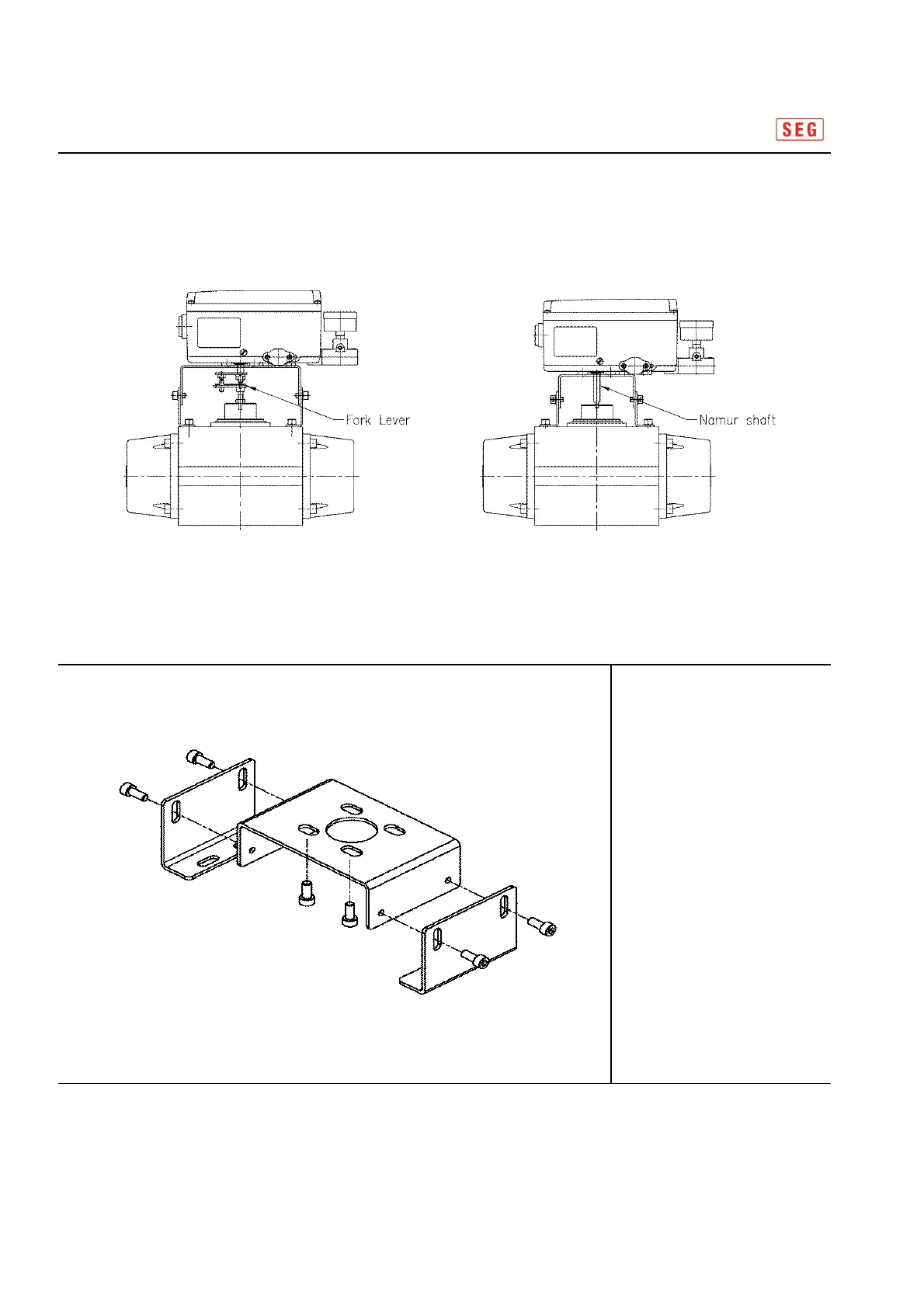

3.4 Rotary positioner Installation

Rotary positioner is used for 90˚ rotating valve.

There are fork lever type and namur type

SP740 Fork lever type SP740 Namur type

3.4.1 Bracket Set assembly for Rotary Positioner Installation

① Lower bracket (2 pcs)

Fig3-6

Fig 3-7

⑤

NAMUR TYPE ⑥

21/40

① Lower bracket (2 pcs)

② Upper bracket (1 pcs)

③ Bolts for upper/lower

brackets(M6)

(wrench bolts,S/W,P/W

each 4 pcs)

④ Positioner bolts(M6)

(wrench bolts,S/W,P/W

each 4 pcs)

⑤ Fork lever type 1ea

Fig 3-8 Bracket set for rotary positioner installation

⑥ Namur type 1ea

①

②

③

④

21/40
