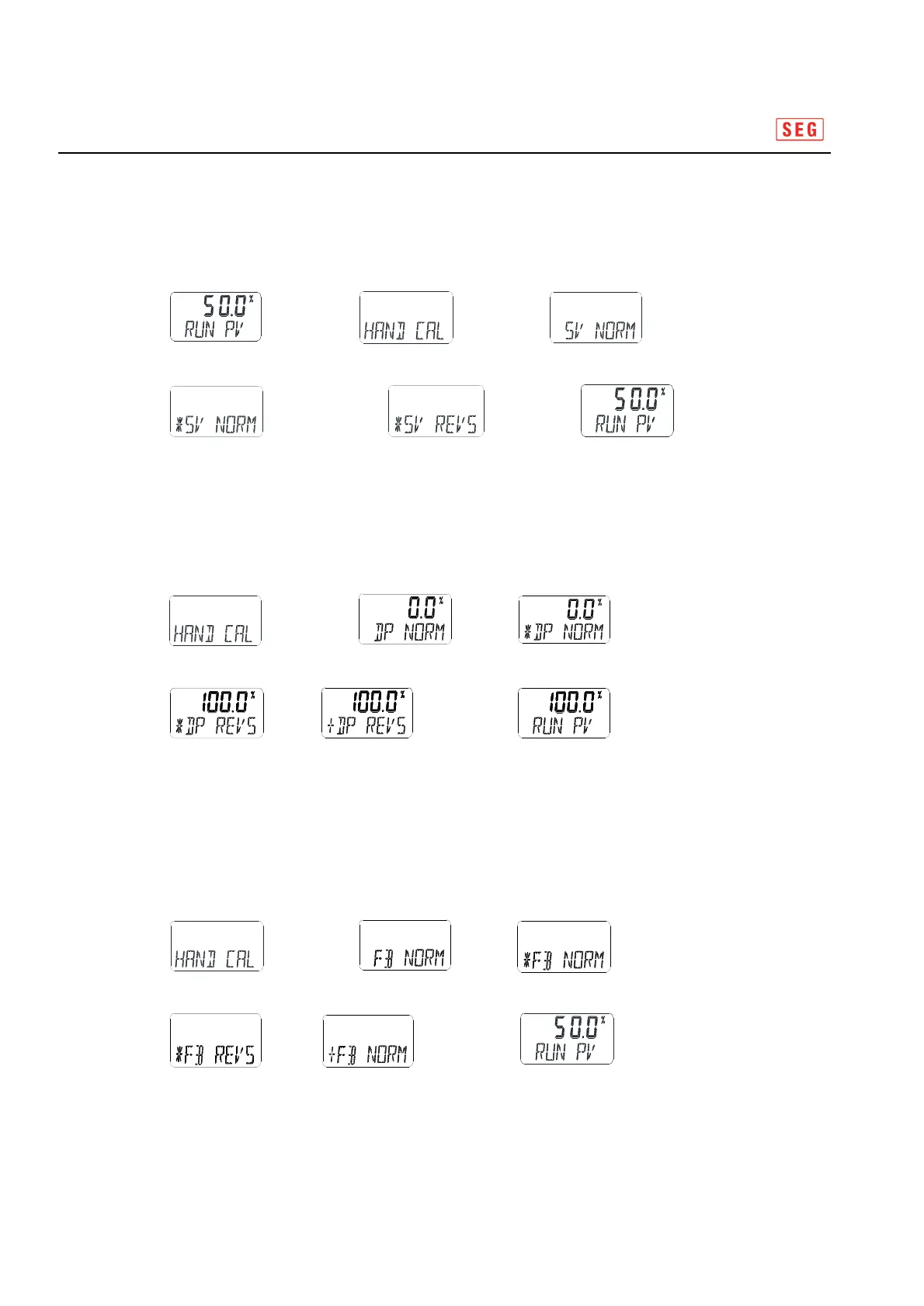

8.7.1 SV NORM
Positioner's SV value can be output with same open value or reverse value.
i.e.) In NORM , input 4mA =0% opening . In REV input 4mA = 100% opening
8.7.2 DP NORM
Positioner's PV value can be output with same open value or reverse value.
i.e.) In NORM , current position 0% can be converted into 100% in REV.
<ENTER>
<UP>/<DOWN>
→
→
→
<ESC 3 times>
<UP> / <DOWN>
<ESC 3 times>
<ENTER> →
→
<UP 2 times>
<ENTER>
<ENTER 5
secs+UP 3times>
→
<ENTER>
<ENTER>
<UP 1 time>→
→
32/40
<ENTER>
8.7.3 FB NORM
FB NORM is mode to reverse Zero point and End Point of positioner feedback value.
i.e.)In NORM , opening 0% =4mA can be converted into opening 0%=20mA in REV
<ENTER>
<ENTER>
→
→
<UP 3
times> →
<UP>/<DOWN>
→
<ENTER> →
<ESC 3 times>
<ESC 3 times>
→
→
32/40
