Smart Positioner

SP740 Series

5. Connection - Power

5.1 Safety

☞

Please check whether power is disconnected before connecting terminals.

☞

Supply the lower than described currenct and votlage

☞

Do not install cable on near equipments incurred by noise such as

high capacity transformer or motor.

5.2 Terminal Connection

Warning

1 input signal(+)

2 input signal(

3 ground

4 feedback signal(+)

5 feedback signal(

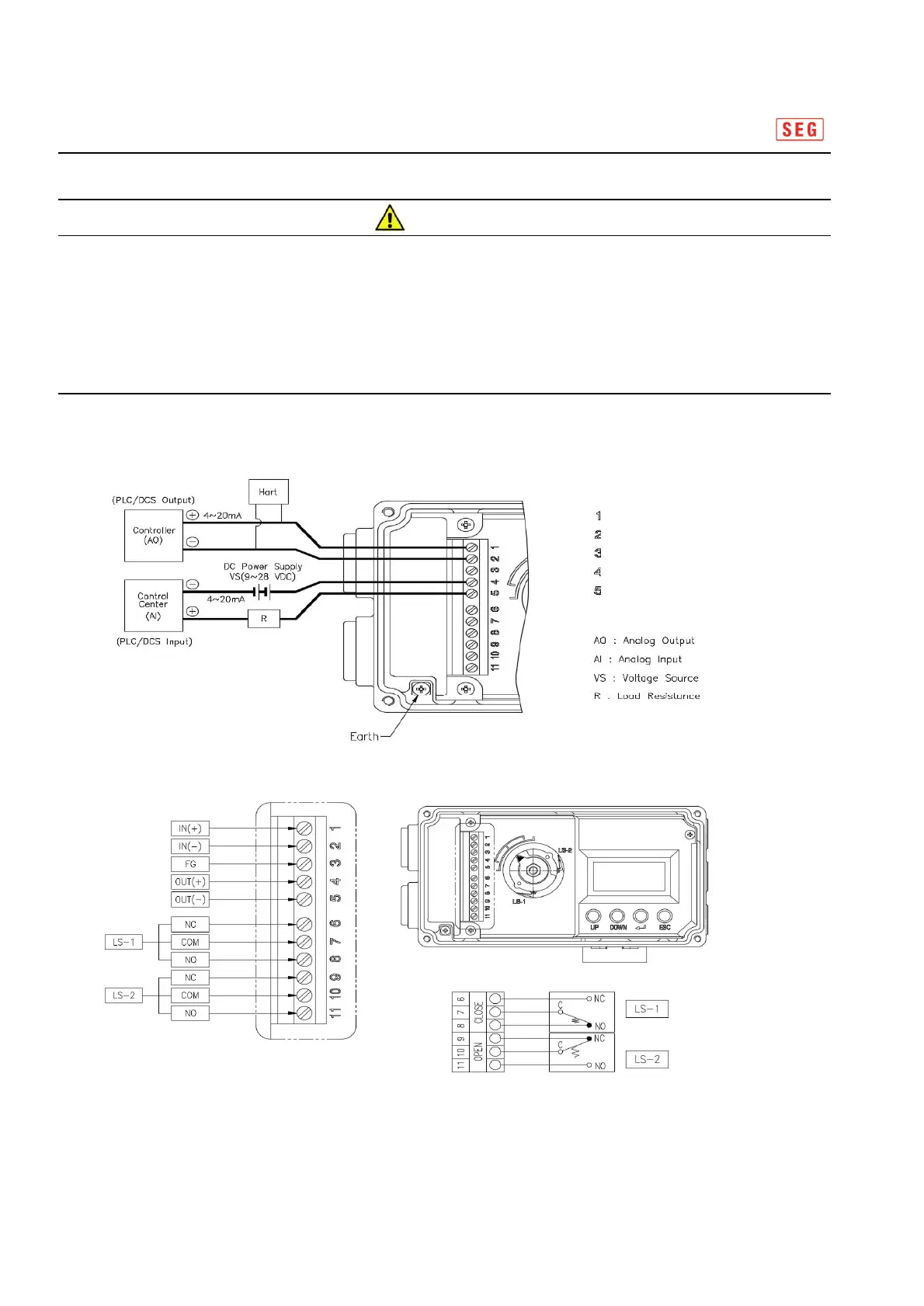

Fig 5-1 : Terminal Connection

5.3 Limit Switch Terminal

Fig 5-2 : Limit Switch Terminal
