STICKER "L"
1P COCKPIT
FIG. 6. 1 a
WRENCH (for M16 hexagon bolt)
PHILLIPS TYPE SCREWDRIVER
24mm
SOCKET WRENCH
Note that the master key and the cashbox door key (accessories) in addition to the tools such as
a Phillips type screwdriver, wrench for M16 hexagon bolt and socket wrench are required for
the assembly work.
MASTER KEY

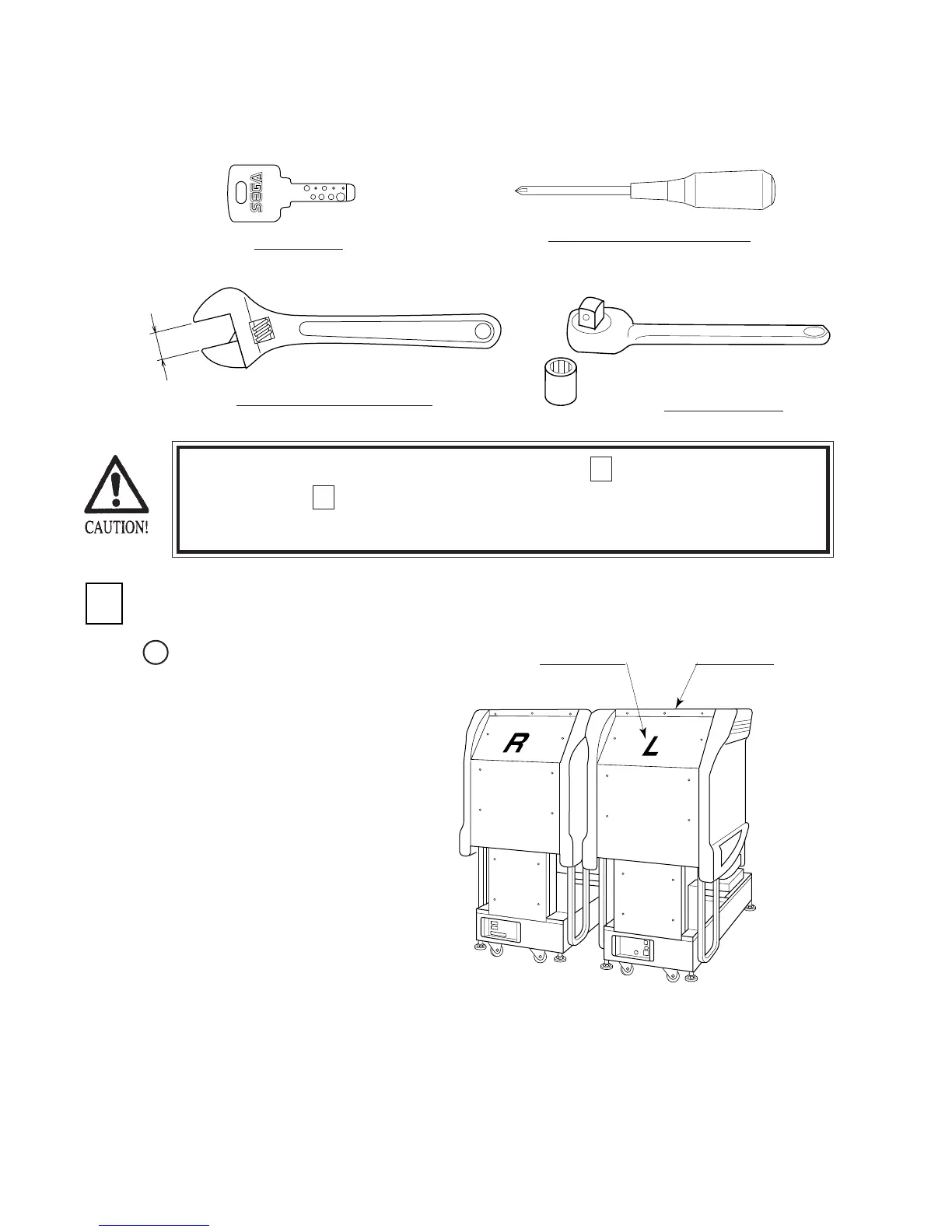

ASSEMBLING THE COCKPIT
Place the two cockpits side by
side. Position the 1P cabinet at the
left-hand side as viewed facing the
monitor. STICKER "L" is attached
on the back of 1P cabinet, and
STICKER "R" on the back of 2P
cabinet.
1
Perform the tightening of hexagon bolts described in 1 above after adjusting the
adjusters as per 2 . Make sure that until the adjuster adjustments are made, keep
the hexagon bolts tightened temporarily.
