13
www.seuservice.com

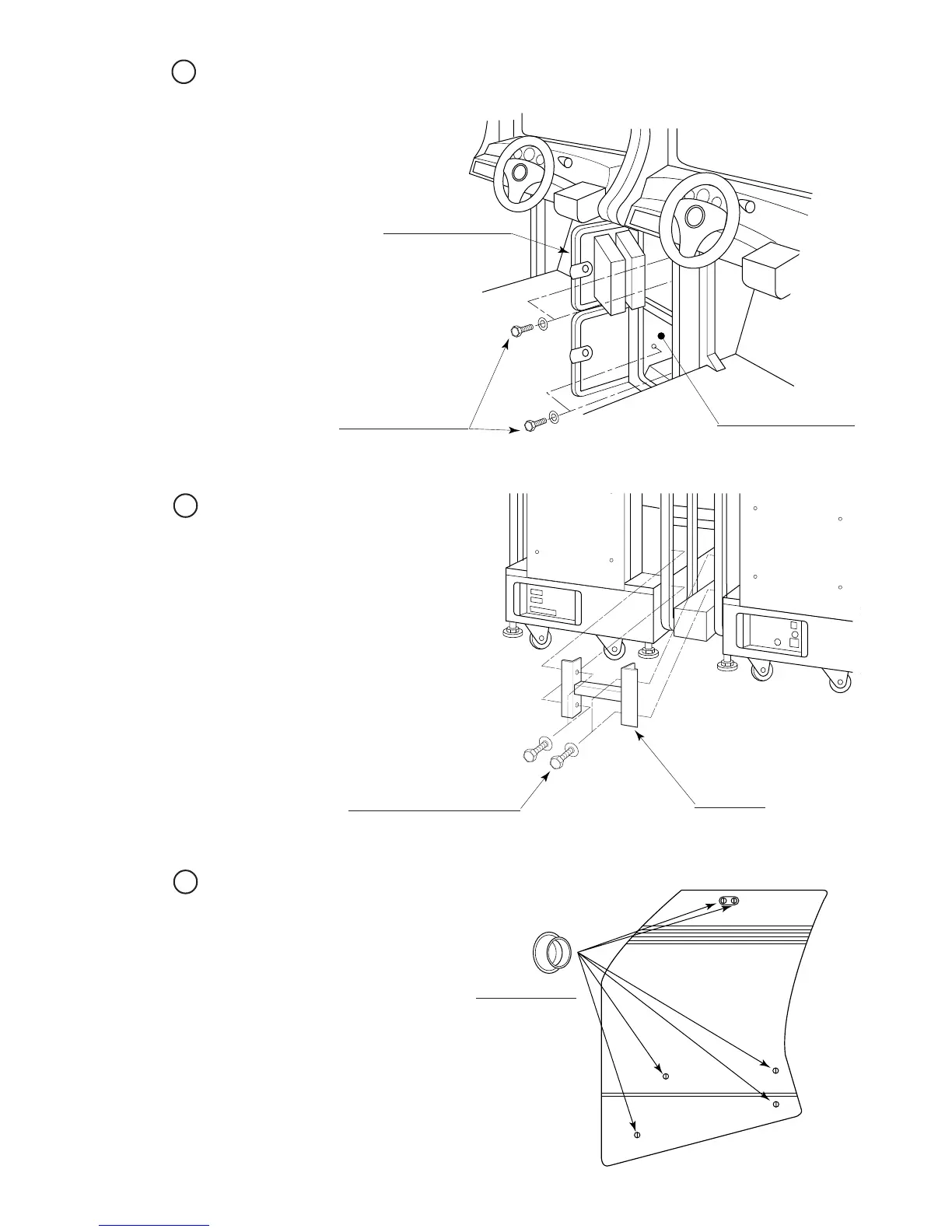

FIG. 6. 1 b
Install the coin chute tower in
between both cabinets. Open the
coin chute door and the cashbox
door to secure with the 4 hexagon
bolts from inside the doors. At this
time, make sure that the bolts are
fastened temporarily.
COIN CHUTE DOOR
HEXAGON BOLT (4)
M8 X 20, w/spring washer,
flat washer used.
COIN CHUTE TOWER
FIG. 6. 1 d
BLIND CAP (12)
SPG-0005
Attach the blind cap to the head of
each hexagon bolt (6 bolts on each
side of the monitor ... a total of 12)
by pressing it in.
Install the joint pipe on to the
backside of both cabinets by
securing with 4 hexagon bolts
(at this time, temporarily).
FIG. 6. 1 c
JOINT PIPE
HEXAGON BOLT (black) (4)
M8 X 25, w/spring washer,
flat washer used.
2
3
4
To Next Page
