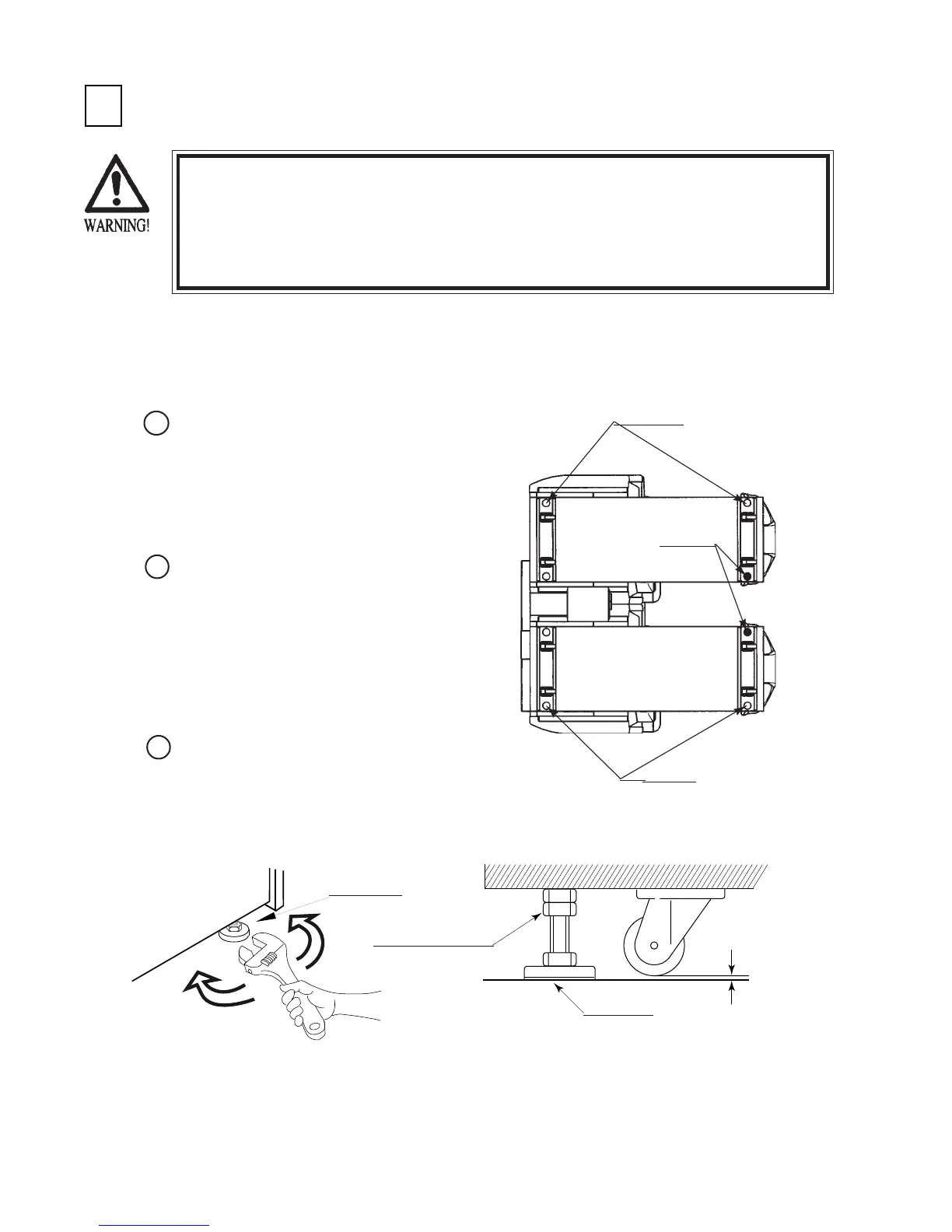

SECURING IN PLACE (ADJUSTER ADJUSTMENT)
This machine has 8 casters and 8 adjusters (Fig. 6.2a). When the installation position is
determined, cause the adjusters to come into contact with the floor directly, make adjustments in
a manner so that the casters will be raised approximately 5mm. from the floor and make sure
that the machine position is level.
Move the machine to the
installation position. When
installing the machine against or
close to a wall, be sure to secure a
passage space to enable the player
to take a ride in the machine.
Attach the joint plate for the 2
internal adjusters shown. First,
cause the other 6 adjusters to come
into contact with the floor. Make
adjuster adjustments with a wrench
in a manner to ensure the
machine's position is level
(Fig.6.2b).
After making adjustments, fasten
the adjuster nut upward and secure
the height of the adjuster
(Fig.6.2b).
FASTEN UPWARD.
CASTER
Approx.5mm
ADJUSTER
FIG. 6. 2 b ADJUSTER
ADJUSTER
Make sure that all of the adjusters are in contact with the floor. If they are
not, the cabinet can move and cause an accident.
Be sure to use plural workers to perform work. Depending on the specific
work, there are some cases in which working by one person alone can cause
personal injury and parts damage.
ADJUSTER
CASTER
FIG. 6. 2 a BOTTOM VIEW
Attach the
joint plate
1
2
3
To Next Page
