HEXAGON BOLT (4) black
M8 X 25, w/spring washer,
flat washer used
HEXAGON BOLT (4 each) black
M8 X 25, w/spring washer,
flat washer used

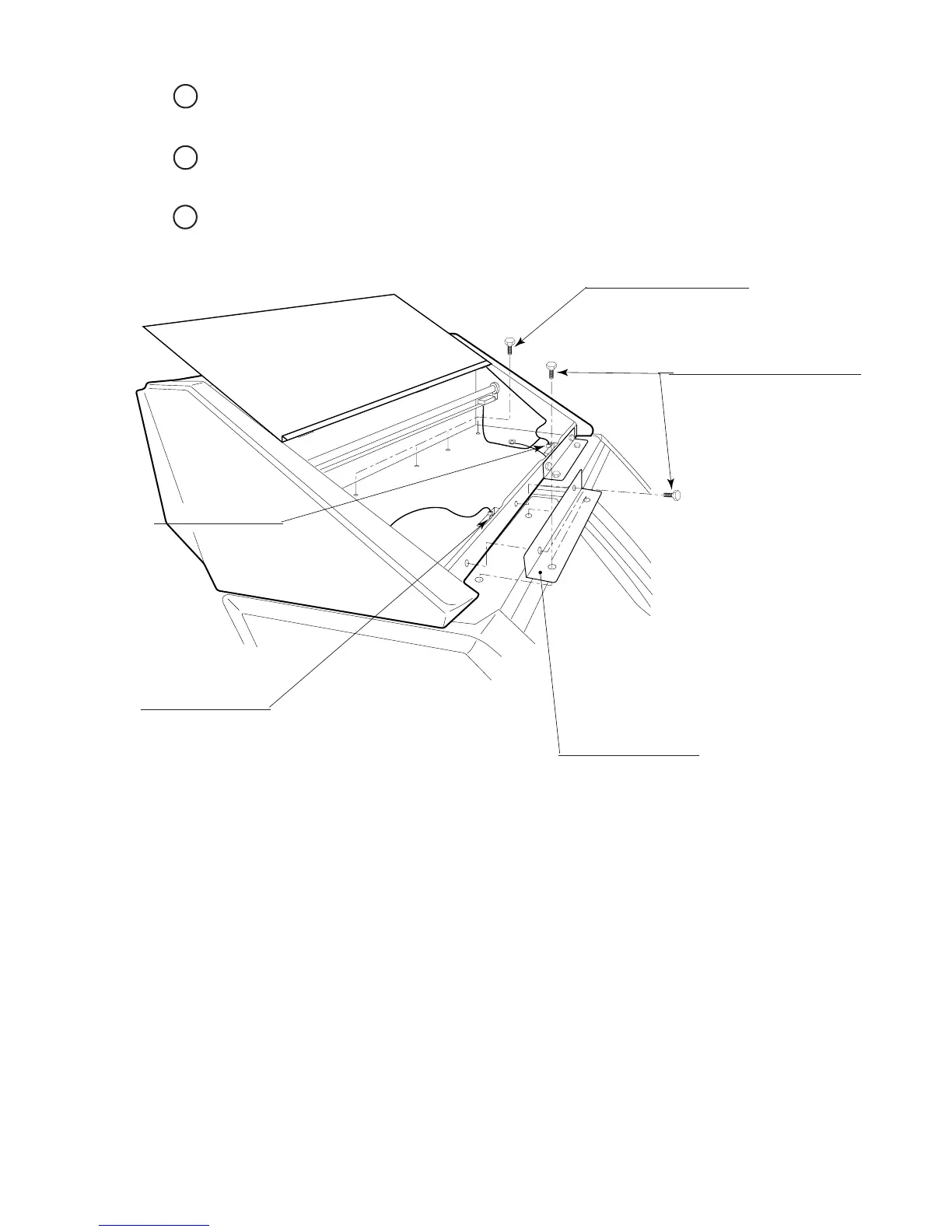

FIG. 6. 3 b
BILLBOARD HOLDER
By fastening 3 Hexagon Bolts to the inner part of the BILLBOARD inside, secure the
BILLBOARD to the cabinet.
Secure the 2 BILLBOARD HOLDERs with 4 Hexagon Bolts for each to secure the cabinet and
BILLBOARD.
Connect the left & right connectors. Close the BILLBOARD LID and secure with 3 Truss
Screws.
Connect the connector.
Connect the connector.
3
4
5
