POWER SUPPLY, AND EARTH CONNECTION
Ensure that the Main SW is OFF.
Main SW off

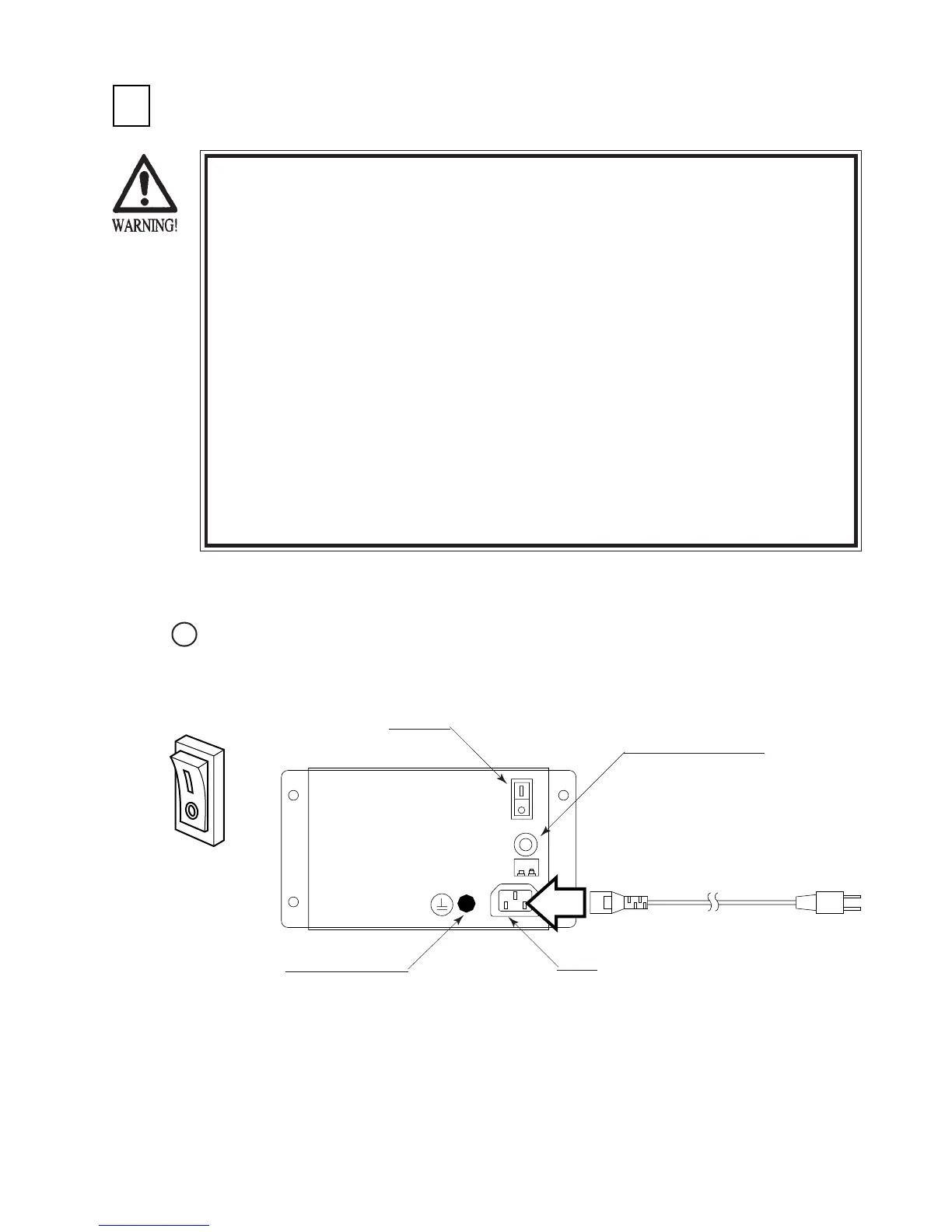

FIG. 6. 5 a AC unit
INLET
CIRCUIT PROTECTOR
MAIN SW
EARTH TERMINAL
Connect with the
indoor earth terminal.
To the Power Supply
Socket outlet
Be sure to independently use the power supply socket outlet equipped with an
Earth Leakage Breaker. Using a power supply without an Earth Leakage
Breaker can cause a fire when electric leakage occurs.
Ensure that the "accurately grounded indoor earth terminal" and the earth wire
cable are available (except in the case where a power cord plug with earth is
used). This product is equipped with the earth terminal. Connect the earth
terminal and the indoor earth terminal with the prepared cable. If the
grounding work is not performed appropriately, customers can be subjected to
an electric shock, and the product's functioning may not be stable.
Ensure that the power cord and earth wire are not exposed on the surface
(passage, etc.). If exposed, they can be caught and are susceptible to damage.
If damaged, the cord and wire can cause electric shock and short circuit
accidents. Ensure that the wiring position is not in the customer's passage
way or the wiring has protective covering.
After wiring power cord on the floor, be sure to protect the power cord.
Exposed power cord is susceptible to damage and causes an electric shock
accident.
The AC Unit is mounted on the 1P COCKPIT. The AC Unit incorporates the Main SW, earth
terminal and Inlet.
