Sega KO DRIVE - Switch Unit and Coin Meter

EXPLANATION OF TEST AND DATA DISPLAY
31
9

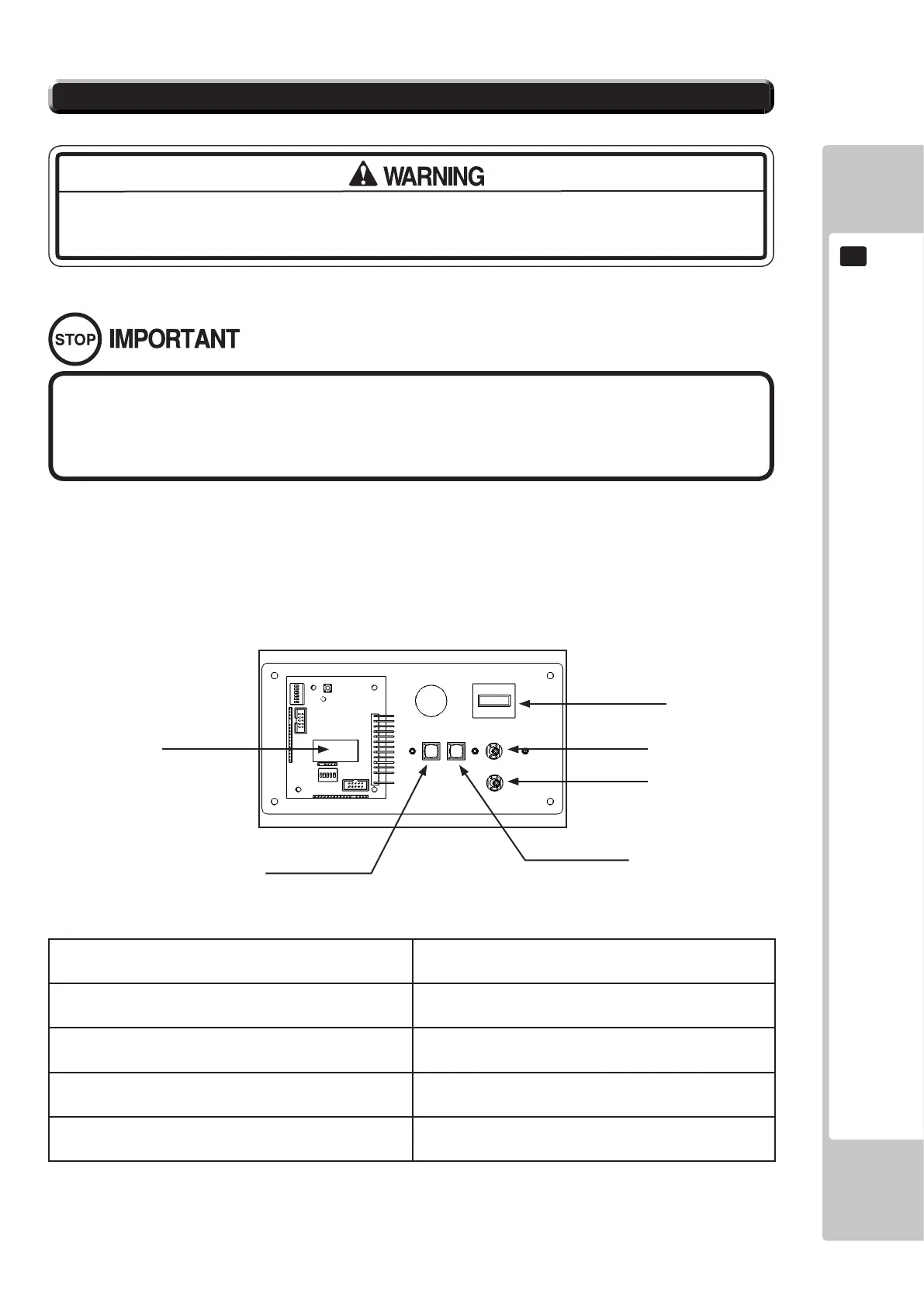

Open the coin chute door, and the switch unit shown will appear.
The functioning of each SW is as follows:
TEST Button (TEST):
For the handling of the Test Button, refer to the
following pages.
SERVICE Button (SERVICE): Gives credits without registering on the coin meter.
Sound Volume Switch (SOUND VOLUME): Adjust sound volume for all of the machines’ speakers.
Coin Counter Counts and displays coins in $0.10 units.
Credit Board Counts coins to be used a price of play
• Adjust the sound to the optimum volume, taking into consideration the
environmental requirements of the installation location.
• Removing the Coin Meter circuitry renders the game inoperable.
9-1SWITCHUNITANDCOINMETER.
Never touch places other than those specied. Touching places not specied can
cause electric shock and short circuit accidents.
9-1-1 FIG. 01
Volume Control
Volume Control (Gun)
Service Button
Test Button
Coin Counter
Credit Board
9-1-1 SWITCH UNIT
