GAME BOARD

111

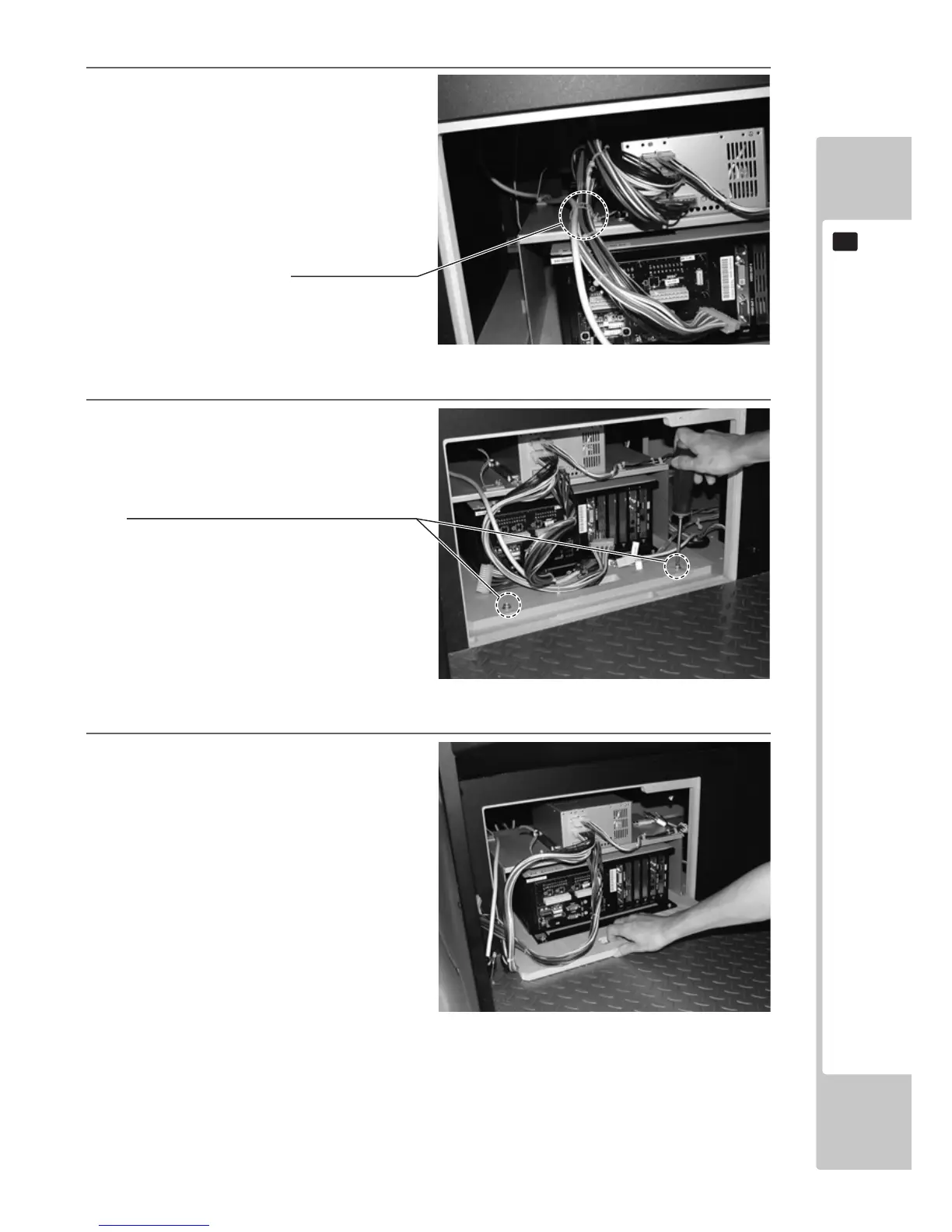

Pull the PCB Board (wooden tray) halfway out.

Be careful not to pull or trap any wires.

FIG. 16-1f

Remove the two screws.

FIG. 16-1e

Remove the cord clamp.

FIG. 16-1d

SCREW (2)

M5x35, w/at & spring washers, large at washer used

Remove the cord clamp.
