PRECAUTIONS WHEN MOVING THE MACHINE
49
7

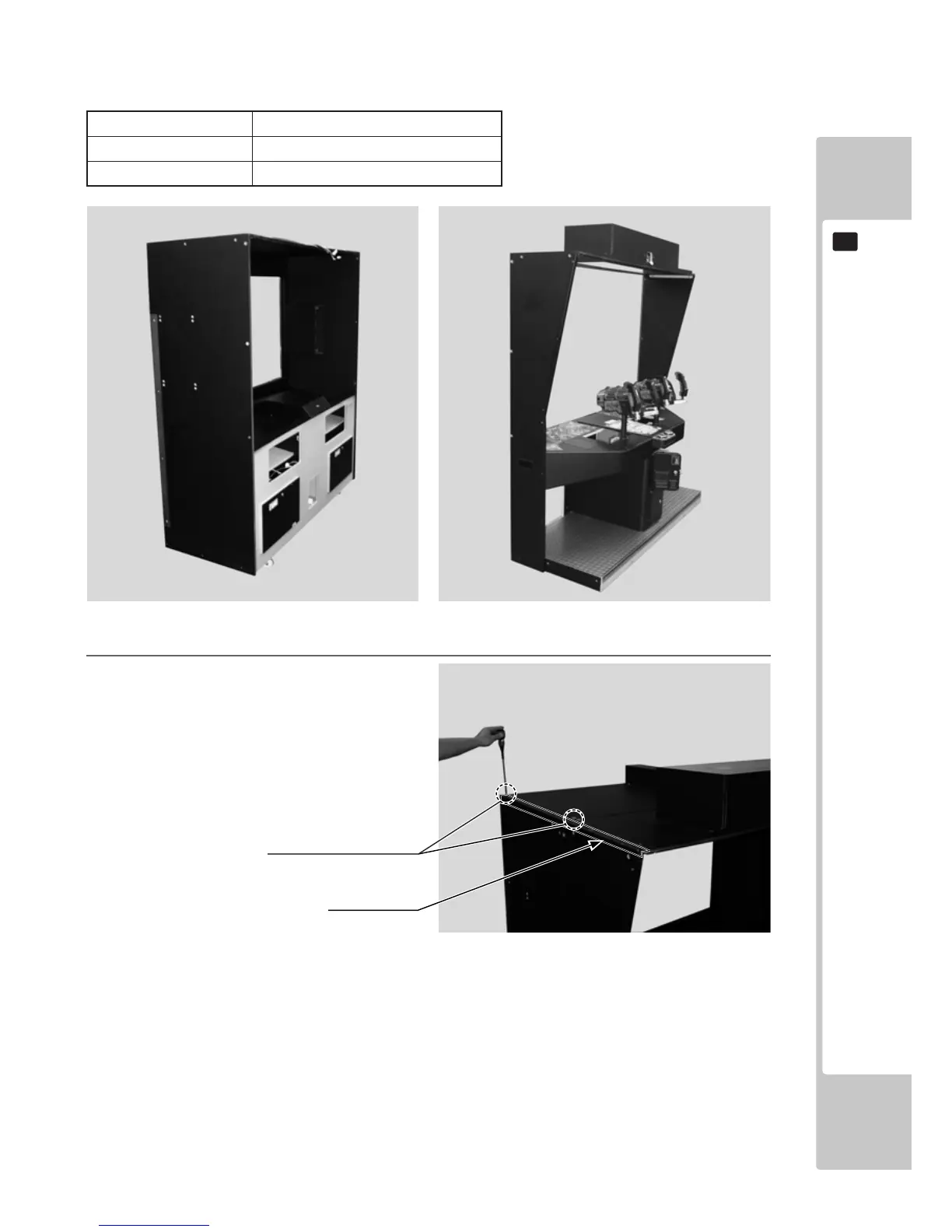

FIG. 7-2b FRONT CABINET
The measurements of each component when separated are as follows.
FIG. 7-2c REAR CABINET
1
Remove the left and right Main Cabinet ceiling
panel cloth brackets. Undo the ve truss screws.
FIG. 7-2d
(Width × Depth × Height)
FRONT CABINET: 1,532 mm × 612 mm × 1,800 mm
REAR CABINET: 1,532 mm × 640 mm × 1,980 mm
CLOTH BRACKET
M4x16
TRUSS SCREW (5 ea.), black
