32

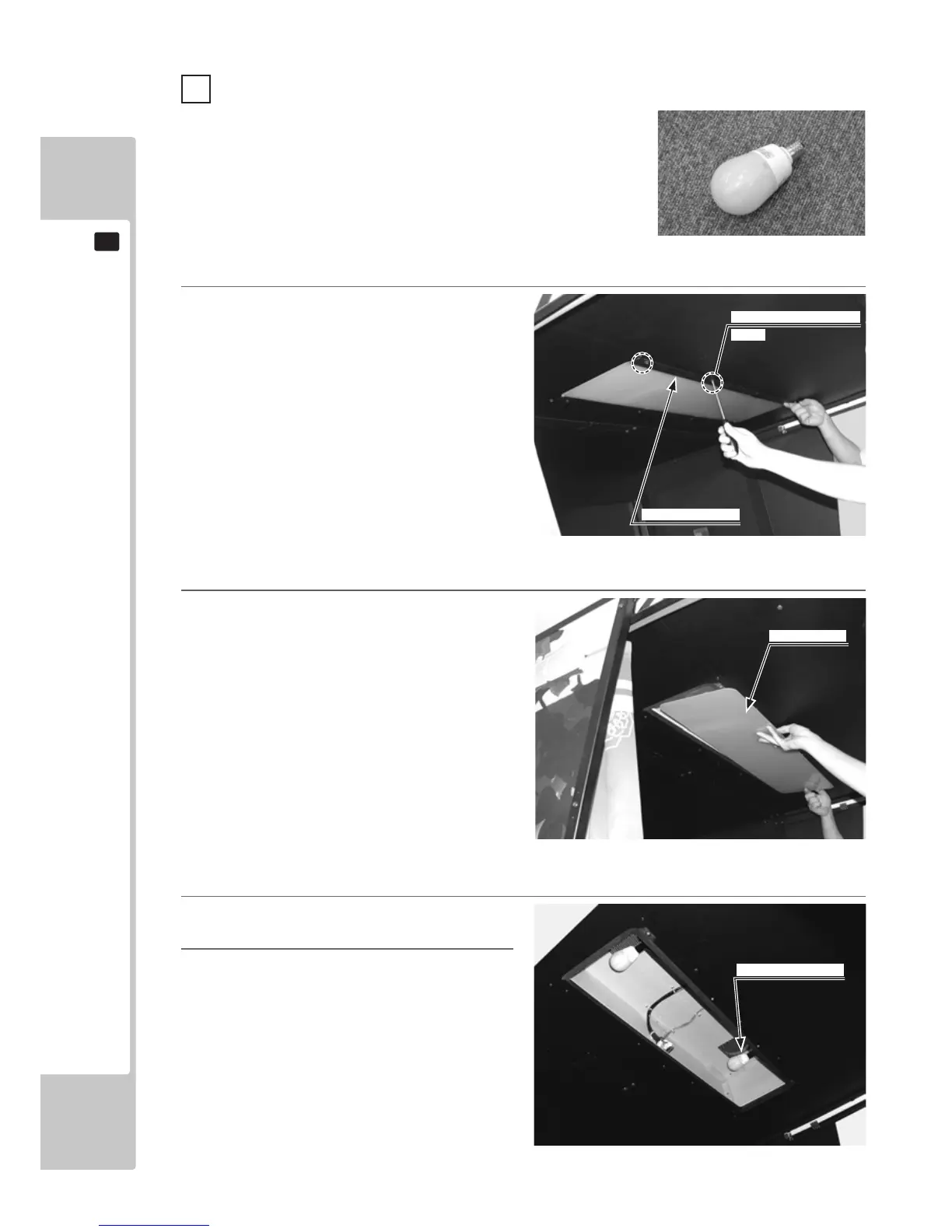

ASSEMBLY AND INSTALLATION
6
3
Installtheuorescentbulbsinthelampsockets.
4
Replace the lamp acrylic and acrylic bracket.
1
Remove the acrylic bracket that holds the lamp
acrylic on the Main Cabinet ceiling in place.
There are two acrylic brackets, but only one
needs to be removed in order to remove the
lamp acrylic. Remove the four truss screws.
Once the screws are removed, the part will
come free and fall. Support it to prevent damage
or injury.
Inordertoreducetheriskofdamageduringtransit,theuorescentbulbsare
not installed in the cabinet.
Twouorescentbulbsneedtobeinstalled.TheoperationontheMainCabi-
net
ceiling will be performed from below. This runs the risk of dropping and
losing screws and other parts, to be extra careful when performing the opera-
tion.
2
Remove the acrylic bracket and lamp acrylic.
FIG. 6-9a Fluorescent Bulb
FIG. 6-9b
FIG. 6-9c
FIG. 6-9d
9
INSTALLATION OF THE FLUORESCENT BULBS
TRUSS SCREW (4), black
M4x16
ACRYLIC BRACKET
FLUORESCENT BULB
LAMP ACRYLIC
