The AC unit is on the lower back of the DLP. This AC unit contains the following.
- Main switch
- Inlet for power cable connection
-Groundterminal
- Circuit protector
The accessory power cord has a ground wire inside it.
Connect the power cord to the AC unit then insert the power cord plug into a “power outlet with ground terminal.”
If there is no “power outlet with ground terminal,” be sure to establish ground by some other means; for example, by
connecting the AC unit ground terminal to a ground wire with a ground mechanism prepared separately. If you use a
conversion adapter sold on the market to supply power, connect the ground wire terminal of the adapter to a “securely
grounded ground terminal.” <For Taiwan>

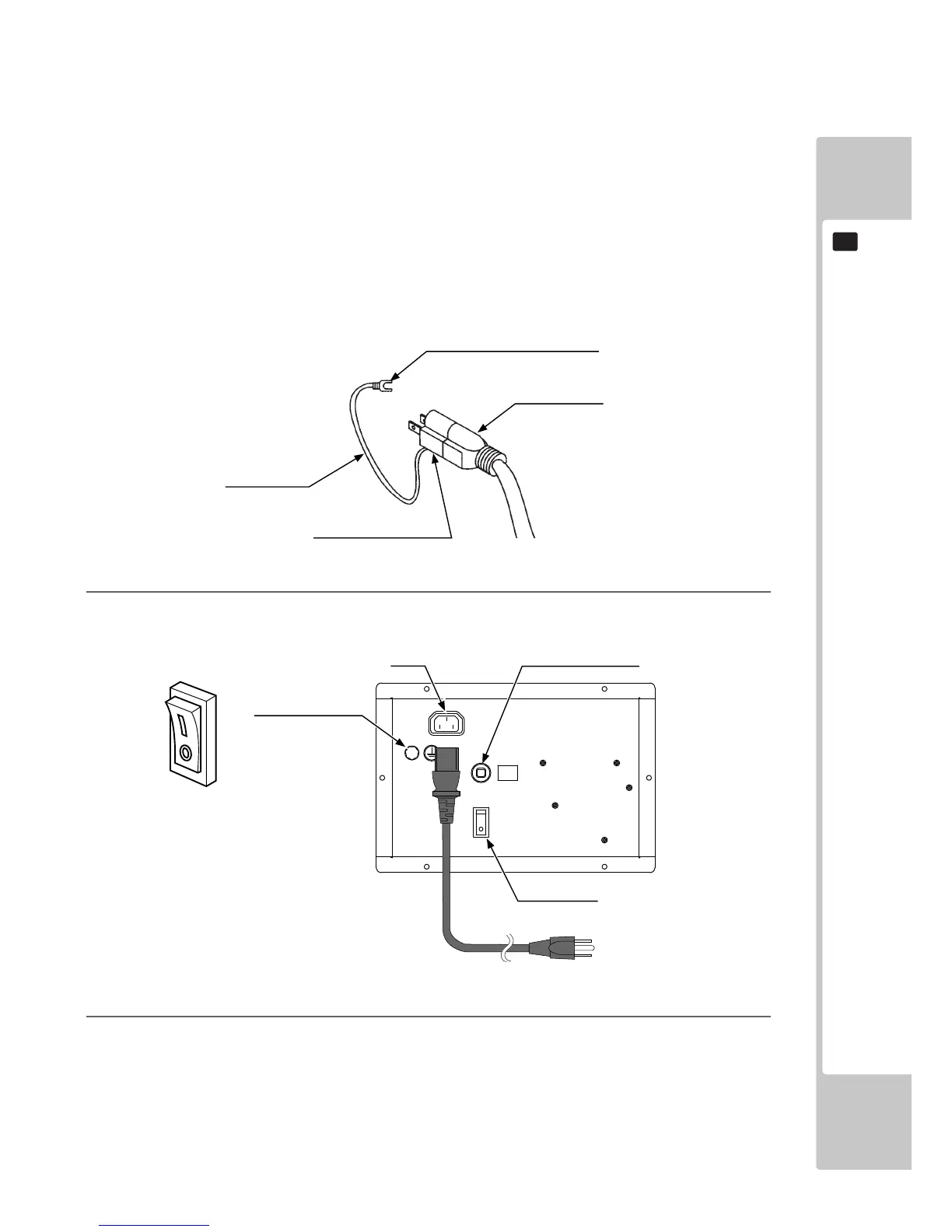

FIG. 6-12a <For Taiwan>
1
ConrmthatthemainswitchisatOFF.
2
Fully insert the power cord connector on the side opposite the power plug into the AC unit inlet.
FIG. 6-12b AC Unit
GROUND WIRE
CONVERSION ADAPTER
POWER OUTLET
Always connect the ground wire.
GROUND TERMINAL
<For Taiwan only>
Main switch OFF.
INLET
CIRCUIT PROTECTOR
MAIN SWITCH
To Outlet
POWER CORD
