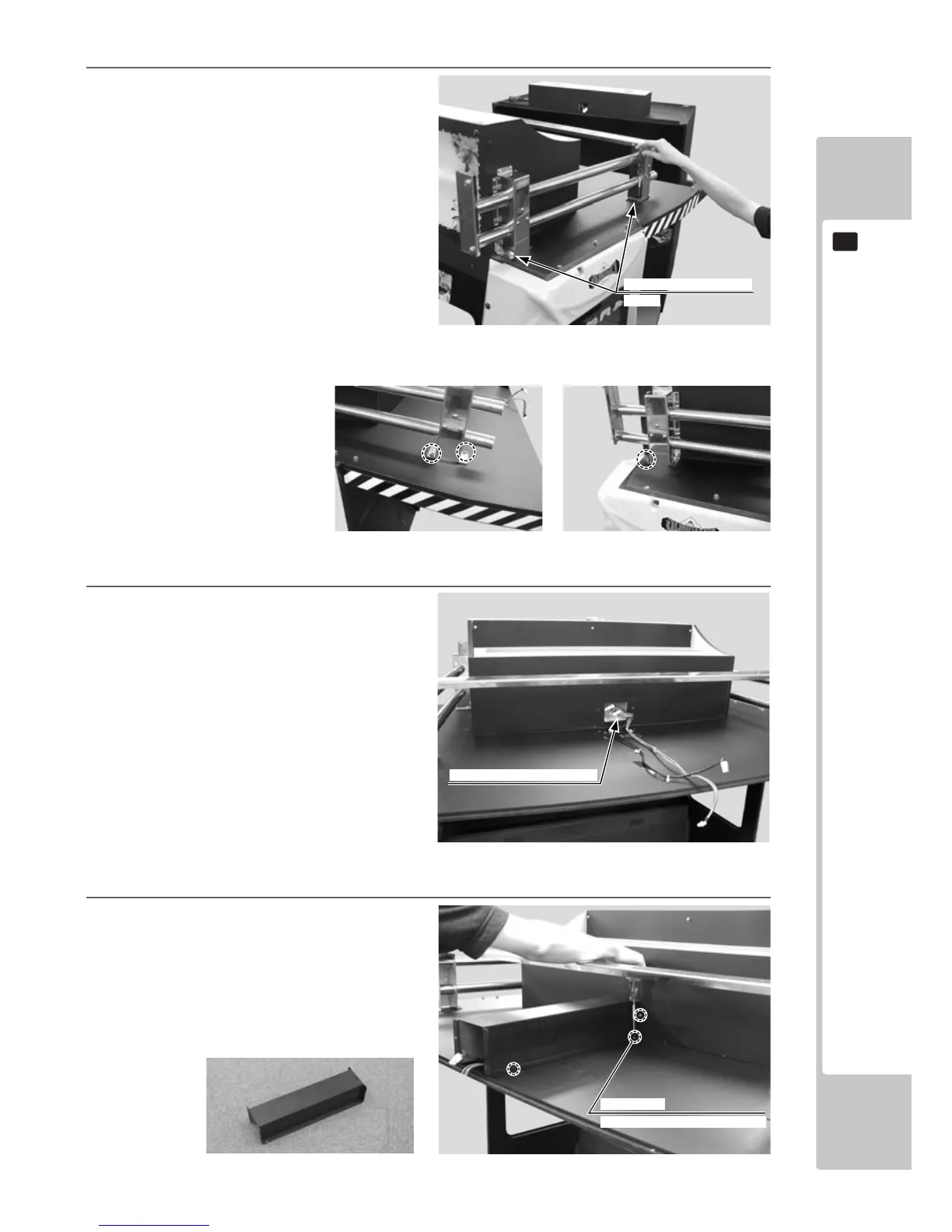

ASSEMBLY AND INSTALLATION
25
6
4
Fix the piping pillar bases in four places with
truss screws.
5
Connect the two top board wire connectors with
the two connectors inside the FL box.
6
Attach the rear harness cover to the top of the
top board. Fix it in place with six screws. The
screwshaveatandspringwashersattached.
Take care not to trap or damage any of the
wires.
The rear harness cover has eight screw holes.
The remaining two will be used after the Main
Cabinet and Seat Cabinet have been combined.
FIG. 6-4d
FIG. 6-4e
FIG. 6-4f
FIG. 6-4g
FIG. 6-4h Rear Harness Cover
TRUSS SCREW (6), black
M4x16
Connect the two connectors.
M4x16, w/at & spring washers
SCREW (6)
