Sega Sonic Allstarts User Manual

- 11 -
Step 5 :

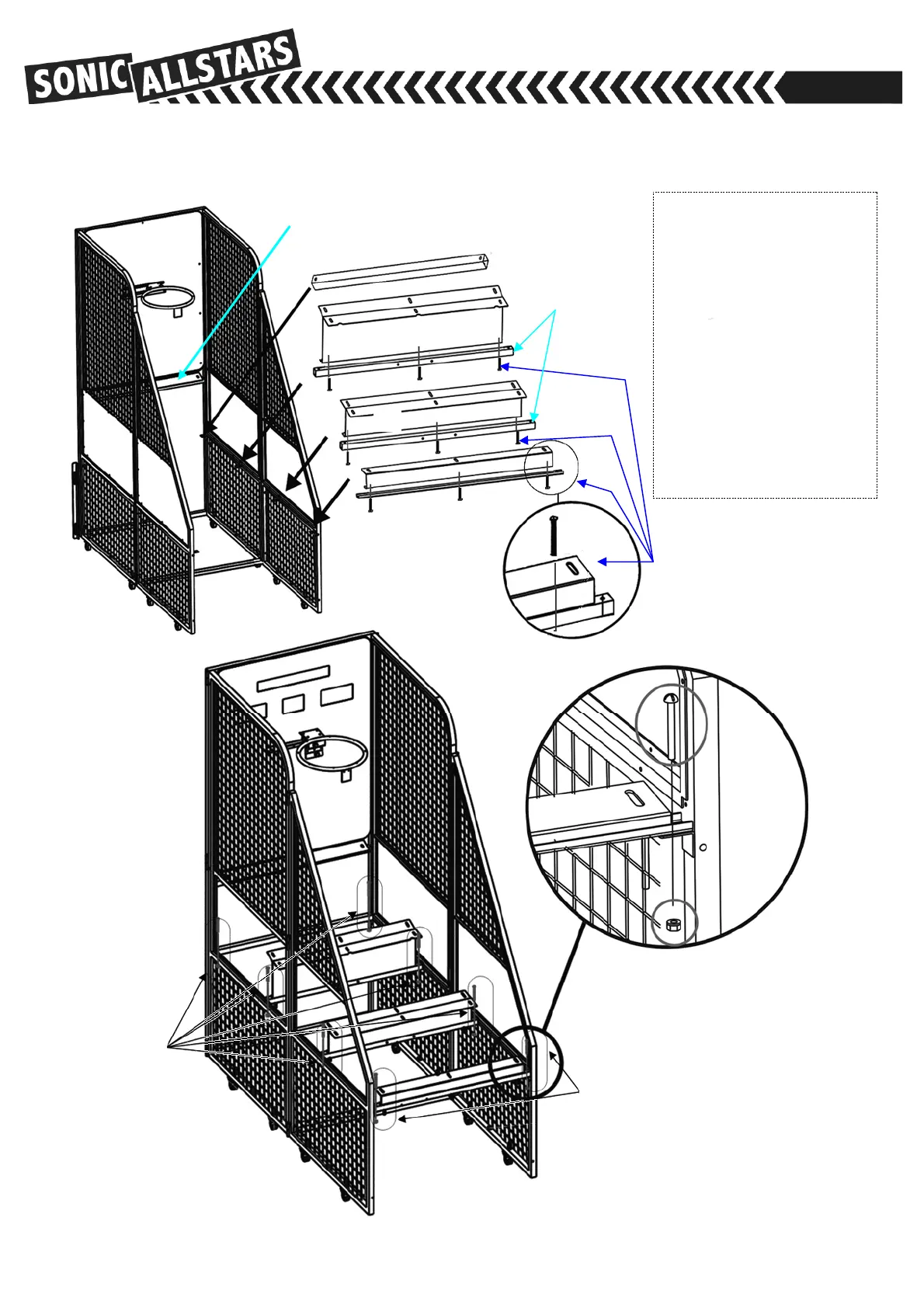

Screw theBBBFFBFF Base holders & Front net stander bridge(short)step
by step as drawing.
Assembly parts
2C Front net stander
bridge(short)
2E 2 Front net stander
bridge(long)
4A Base holder BF
4B Base holder FB
4C Base holder FF
4D Base holder BB
4E Base holder FF
(Bottom)
BF
FB
screw (M6×26)×2
nut (M6)×2
screw (M6×48)×6
nut (M6)×6
(short)
screw (M6×48) ×9
nut (M6)×9
washer(M6.5×13.5)×9
FF
(long)
BB
