Sega Sonic Allstarts User Manual

- 6 -
II.Product Specifications
Machine Dimensions : W1030×D2500×Top cover H2643mm
Weight : 260 kg / 558.4 lbs (Accessories not Included )
(Top cover 6.6kg, Metal Shelf 3.4kg, Lower Side Net 4.2kg×4)
Voltage : AC110V~120V/AC220V~240V(50/60Hz) Use Electrical
plug display as a glide Located behind the machine.
Power Consumption : 200W
Fuse : 3A
Token size : Ø22mm~27mm

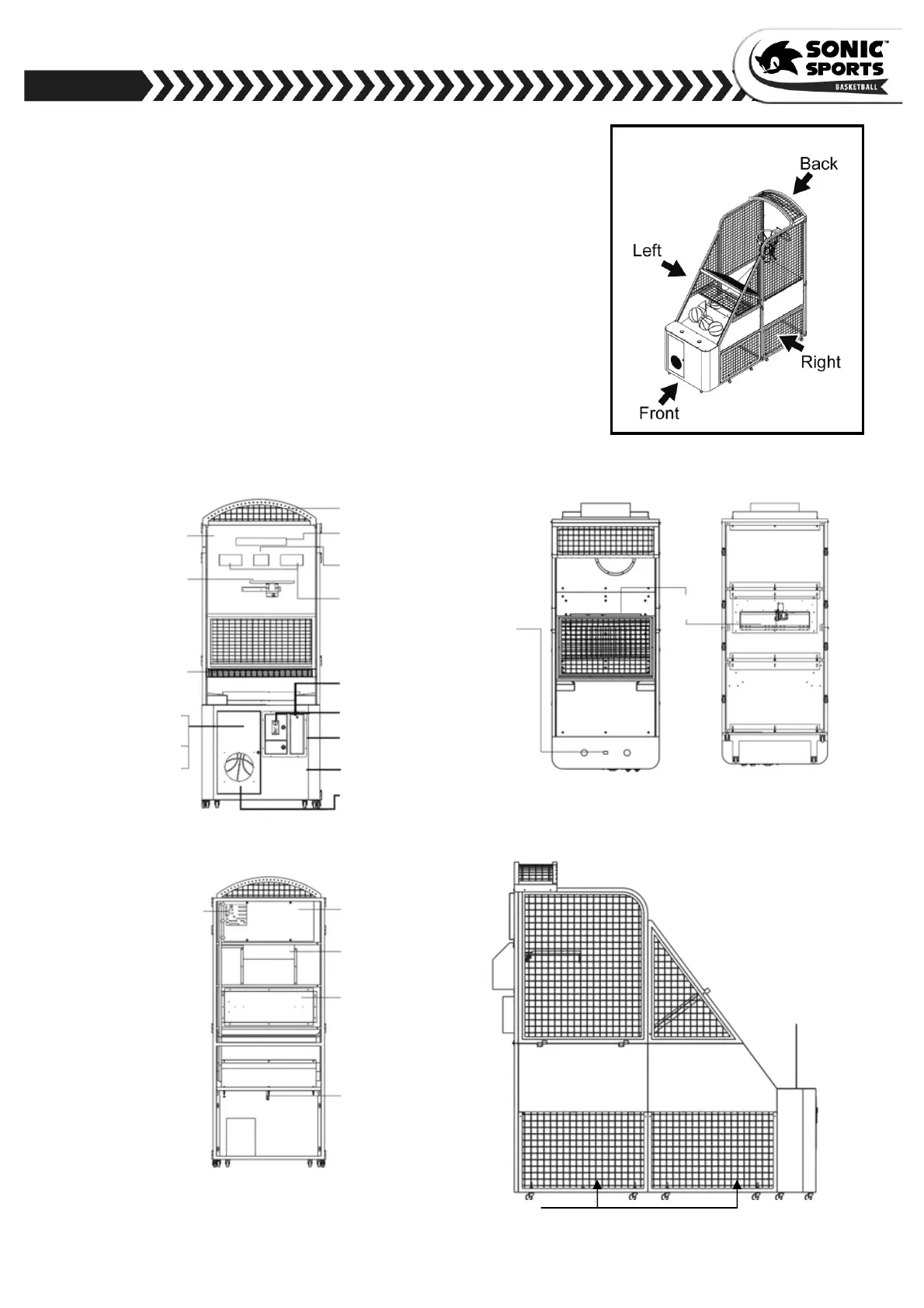

III. Introduction of Product Appearance
Position direction

Top cover(optional)
Running display board
2 Digital display board LED
3 Digital display board LED
Coin LED display
Ticket dispenser
Coin selector
Ticket
container
(inside)
Cash
box(inside)
Speaker
Basket
b
oard
Basket
kit
Metal Shelf
(optional)
IC Board
Power
TestAudit
Fuse
Ball
holder kit
Board cover
Basket
cover
Box cover
AC Cable line
Electrical plug display
I/O control Board
Main part
Lower Side Net (Frame Included)×4


Front

 

Base

 

Top




Back

 

Side



Sega Sonic Allstarts Specifications

General

Brand	Sega
Model	Sonic Allstarts
Category	Arcade Game Machines
Language	English
