- 16 -

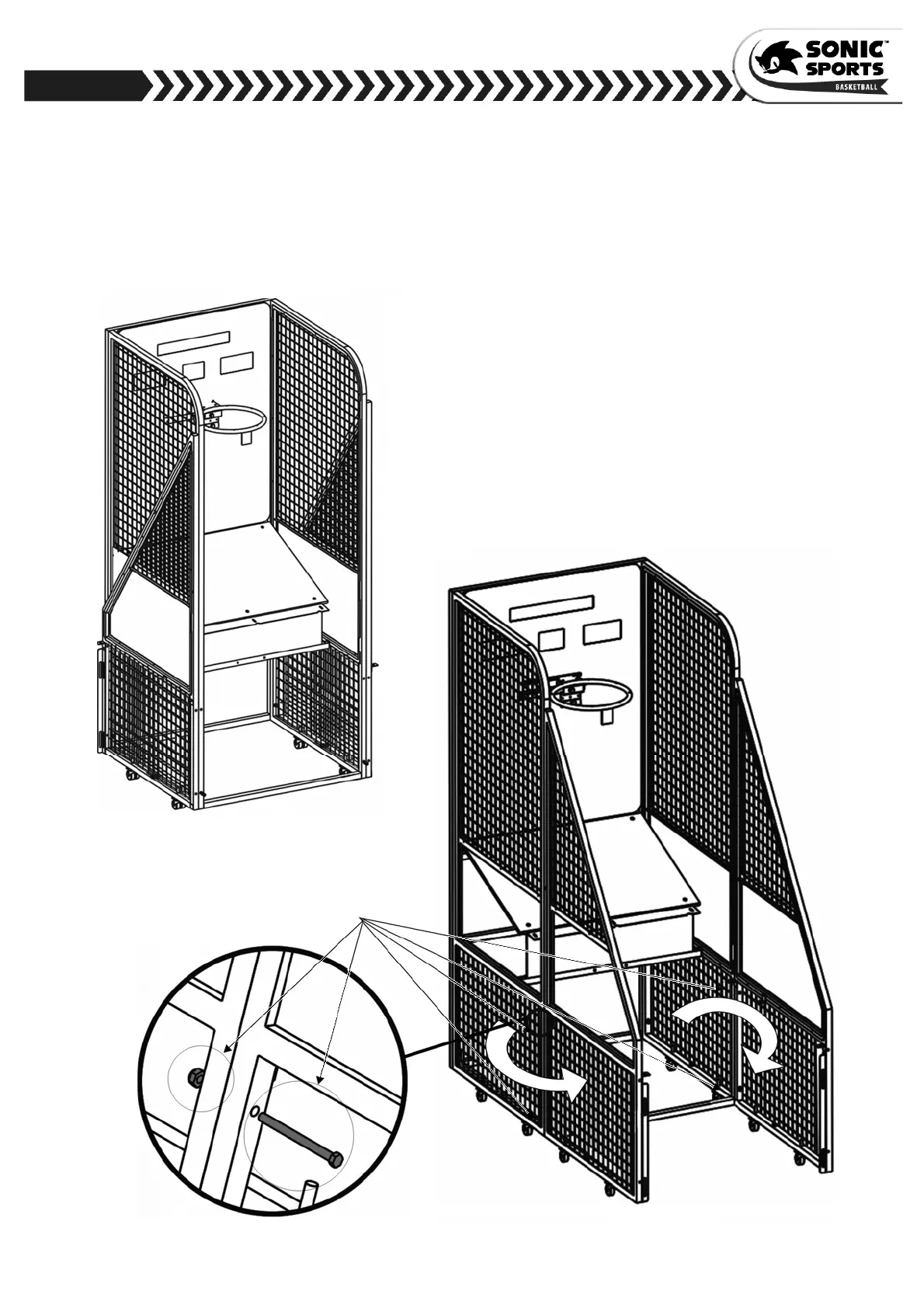

2. Assembly and disassembly for Half-Assembly type
Step 1 :
Turn the left and right frame180°to the position as drawing picture . connect with
screw & fixed it as drawing.
screw (M8×70)×4
nut (M8)×4
