SECURING IN PLACE (ADJUSTER ADJUSTMENT)
Transport the product to the
installation position. Be sure to
provide adequate space allowing
the player to get on and off.
Have all of the Adjusters make
contact with the oor. Adjust
the Adjuster's height by using
a wrench so that the machine
position is kept level.
After making adjustment, fasten
the Adjuster Nut upward and
secure the height of Adjuster
(FIG. 6. 3 b).

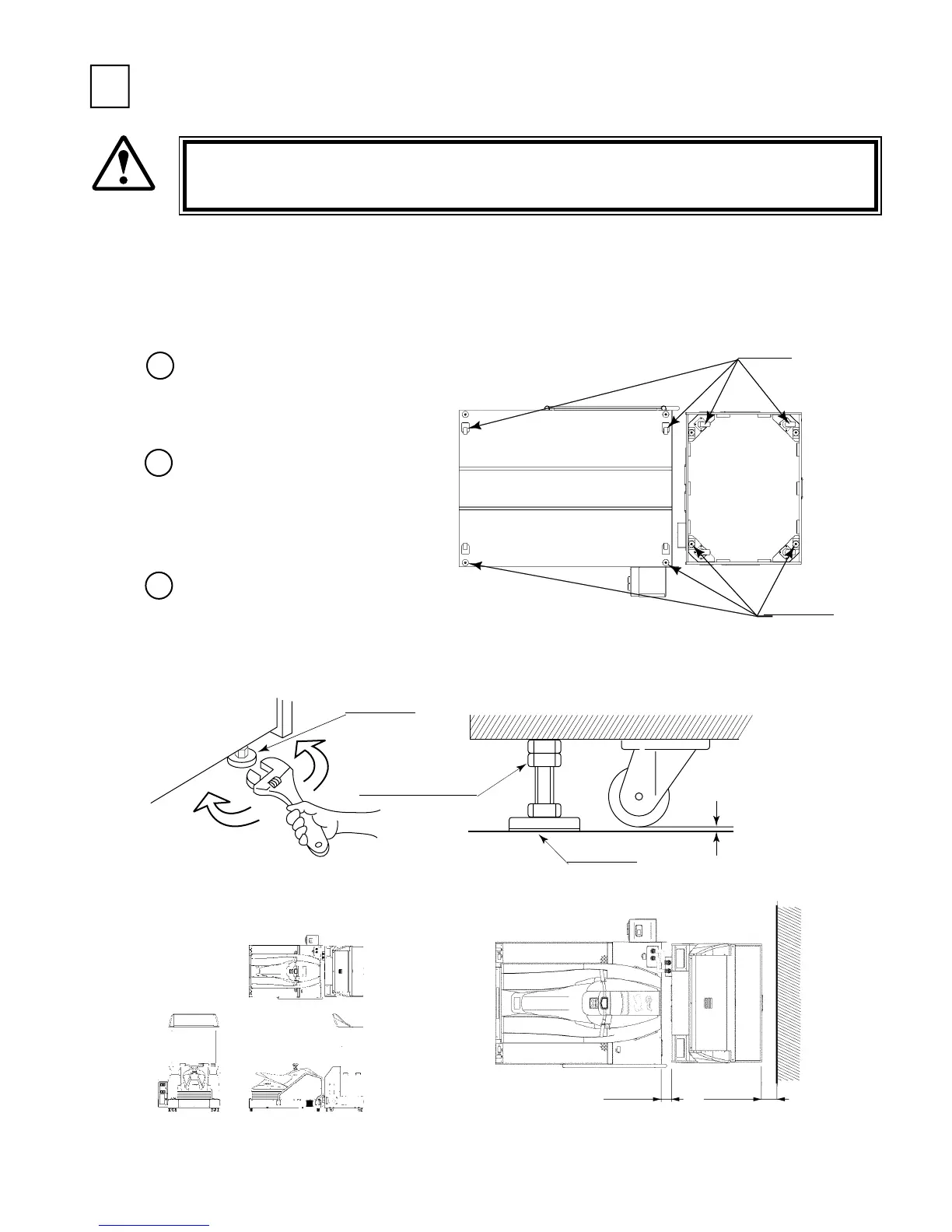

FIG. 6. 3 a BOTTOM VIEW
FIG. 6. 3 b ADJUSTER
Make sure that all of the adjusters are in contact with the oor. If they are not, the
cabinet can move and cause an accident.
This product has 8 casters (4 for FRONT CABINET, 4 for REAR CABINET) and 8 Adjusters
(4 for FRONT CABINET, 4 for REAR CABINET). (FIG. 6. 3a) When the installation position is
determined, cause the adjusters to come into contact with the oor directly, make adjustments in a
manner so that the casters will be raised approximately 5mm from the oor and make sure that the
machine position is level.
ADJUSTER
Approx.5mm
ADJUSTER
CASTER
FASTEN UPWARD.
ADJUSTER
CASTER
FIG. 6. 3 c
Refer to this Fig. (Scale:1/100) for
the layout of the place of installation.
FIG. 6. 3 d
Be sure to provide space as shown between the Air
Vent and the wall surface.
15cm
10cm
