Connect one end of the earth wire to the AC Unit earth
terminal, and the other end to the indoor earth ter-
minal. The AC Unit earth terminal has a Bolt and Nut
combination. Take off the Nut, pass the end of earth
wire through the Bolt, and fasten the Nut.
Note that the Earth Wire is incorporated in the Power
Cord for the Areas of AC 120V (USA) and AC 220 ~
240V, and therefore, this procedure is not necessary.
Connect the Earth Wire
to the Earth Terminal.

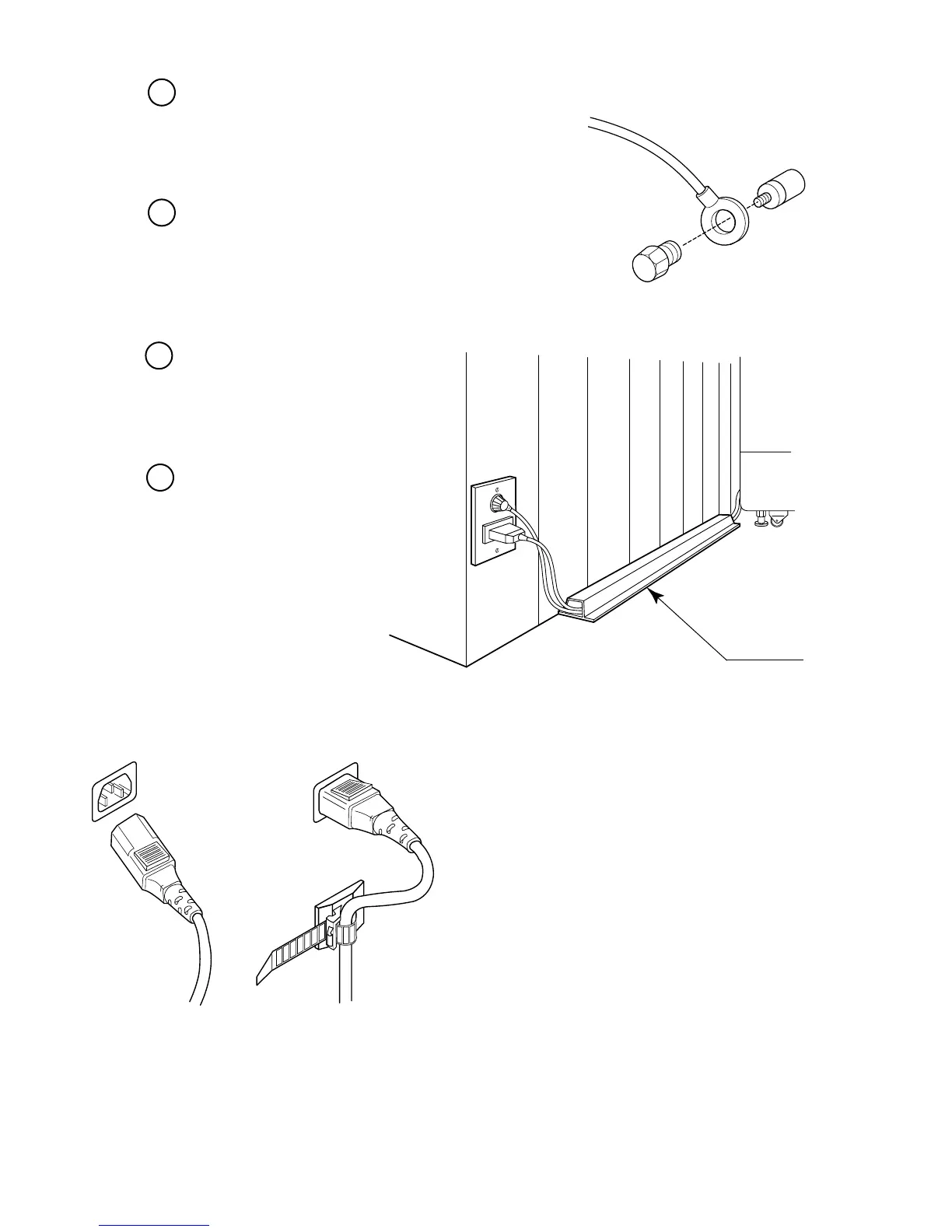

FIG. 6. 5 b Earth Wire Connection
Firmly insert the power plug into the
socket outlet.
Insert the opposite side of Power Cord
plug to the AC Unit's connector ("IN-
LET").
Perform wiring for the Power Cord
and Earth Wire. Install protective
covering for the Power Cord and
Earth Wire.
FIG. 6. 5 c Connecting Power Cord and Earth Wire
Wiring Cover
In case the Power Plug is apt to come out of place, secure the
Power Cord to the periphery of the AC Unit with the Cord Clamp
(an accessory).
HOW TO USE THE CORD CLAMP
