Do not touch places other than those specied. Touching places not specied can cause
an electric shock or short circuit accident.
9 - 1 SWITCH UNIT AND COIN METER
Adjust to the optimum sound volume by considering the environmental
requirements of the installation location.
If the COIN METER and the game board are electrically disconnected, game play
is not possible.
SWITCH UNIT
Open the coin chute door, and the switch unit
shown will appear. The functioning of each SW
is as follows:

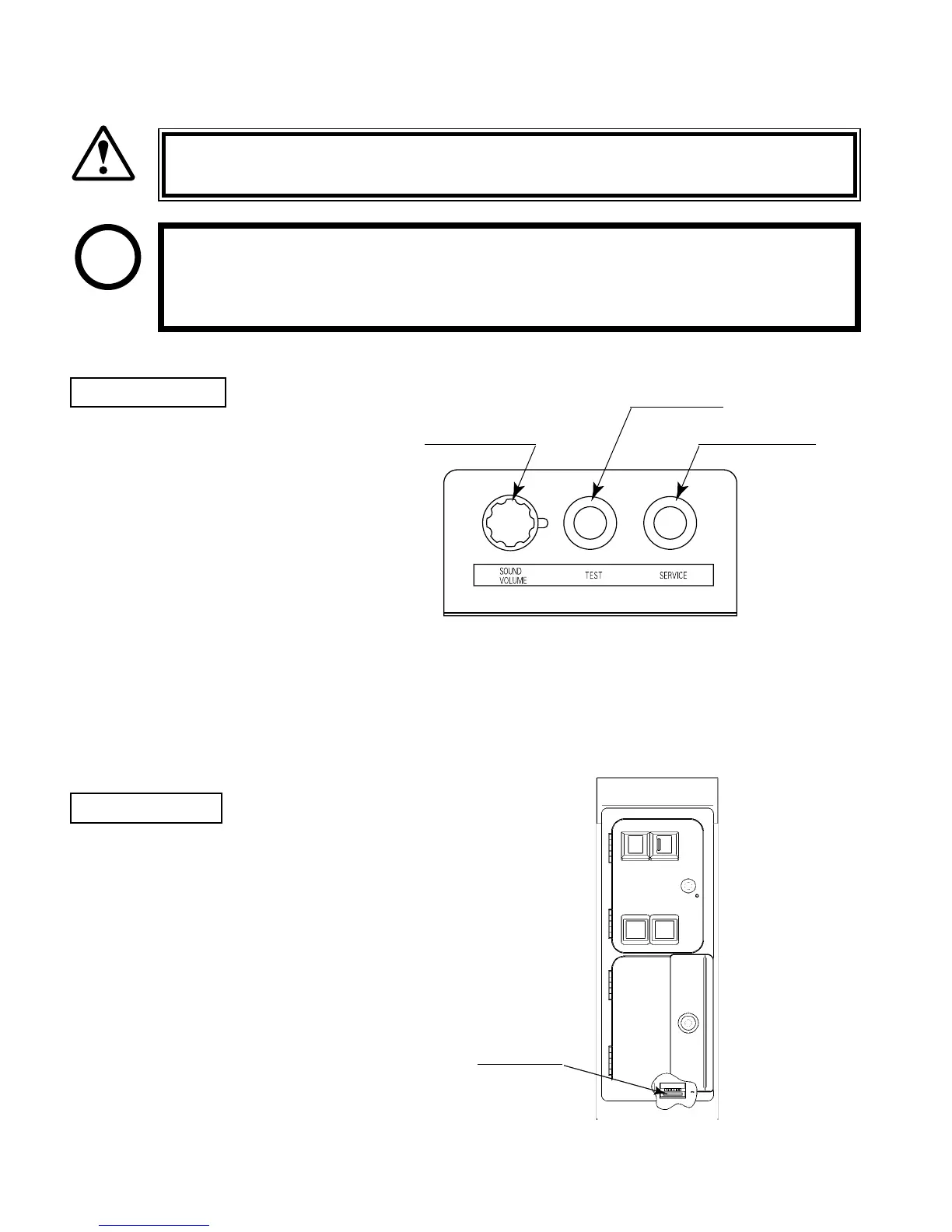

FIG. 9. 1 a SWITCH UNIT
TEST BUTTON : For the handling of the test button, refer to the following pages.
(TEST)
SERVICE BUTTON : Gives credits without registering on the coin meter.
(SERVICE)
SOUND VOLUME : Adjust the Speaker Volume.
(SOUND VOLUME)
Open the Cashbox Door with the exclusively used key
and the COIN METER will appear underneath the
Cashbox.
COIN METER
TEST BUTTON
SOUND VOLUME
SERVICE BUTTON
COIN METER
FIG. 9. 1 b COIN METER
WARNING!
STOP
IMPORTANT!
